SV620

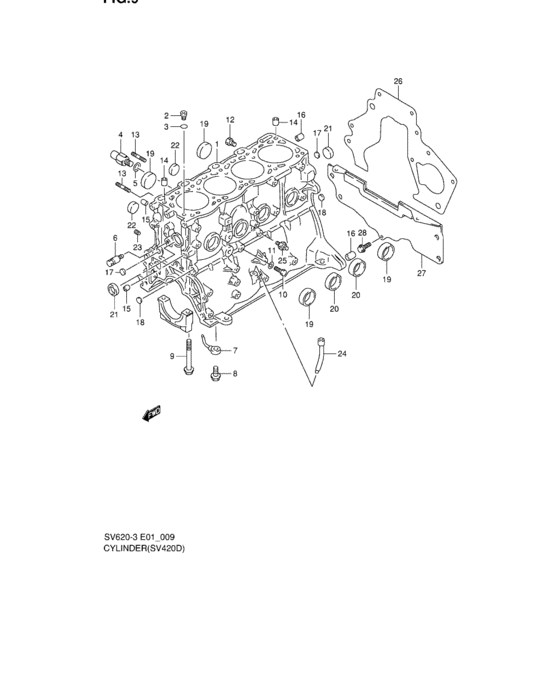

Cylinder (SV420D) 25
| # | OEM | Part name |
|---|---|---|
| 1 | 11211-78E10-000 | Block, cylinder |
| 1 | 11211-78E12-000 | ブロックアッシ,シリンダ |
| 1 | 11211-78E13-000 | Block assy,cylinder |
| 2 | 11221-78E00-000 | PLUG,OIL CONTROL |
| 3 | 11229-78E00-000 | O-RING,OIL CONTROL PLUG |
| 4 | 37820-78E00-000 | Joint |
| 5 | 11228-78E00-000 | GASKET,DRAIN PLUG |
| 6 | 11226-78E00-000 | SET PIN,SPRING |
| 7 | 18480-78E01-000 | Jet,oil |
| 8 | 18481-78E01-000 | Valve,oil jet |
| 9 | 11227-78E00-000 | Bolt |
| 12 | 11222-78E00-000 | PLUG |
| 13 | 11215-78E00-000 | Stud bolt |
| 14 | 11225-78E00-000 | PIN |
| 17 | 11223-78E00-000 | PLUG,BLIND |
| 18 | 11224-78E00-000 | PLUG,BLIND |
| 24 | 11214-78E00-000 | PIPE,OIL LEVEL GAUGE |
| 25 | 37820-77E90-000 | SWITCH ASSY,OIL PRESSURE |
| 26 | 11311-78E00-000 | プレート,エンド |
| 26 | 11311-78E10-000 | Plate, clutch housing upper |
| 27 | 11320-78E00-000 | PLATE,CLUTCH HSG LOWER |
| 27 | 11320-78E10-000 | PLATE,CLUTCH HSG LOWER |
| 28 | 01550-06123-000 | Bolt |
| 28 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 28 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Cylinder (SV420D) |
| 01550-0612A-000 | Bolt | Cylinder (SV420D) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Cylinder (SV420D) |
| 11211-78E10-000 | Block, cylinder | Cylinder (SV420D) |
| 11211-78E12-000 | ブロックアッシ,シリンダ | Cylinder (SV420D) |
| 11211-78E13-000 | Block assy,cylinder | Cylinder (SV420D) |
| 11214-78E00-000 | PIPE,OIL LEVEL GAUGE | Cylinder (SV420D) |
| 11215-78E00-000 | Stud bolt | Cylinder (SV420D) |
| 11221-78E00-000 | PLUG,OIL CONTROL | Cylinder (SV420D) |
| 11222-78E00-000 | PLUG | Cylinder (SV420D) |
| 11223-78E00-000 | PLUG,BLIND | Cylinder (SV420D) |
| 11224-78E00-000 | PLUG,BLIND | Cylinder (SV420D) |
| 11225-78E00-000 | PIN | Cylinder (SV420D) |
| 11226-78E00-000 | SET PIN,SPRING | Cylinder (SV420D) |
| 11227-78E00-000 | Bolt | Cylinder (SV420D) |
| 11228-78E00-000 | GASKET,DRAIN PLUG | Cylinder (SV420D) |
| 11229-78E00-000 | O-RING,OIL CONTROL PLUG | Cylinder (SV420D) |
| 11311-78E00-000 | プレート,エンド | Cylinder (SV420D) |
| 11311-78E10-000 | Plate, clutch housing upper | Cylinder (SV420D) |
| 11320-78E00-000 | PLATE,CLUTCH HSG LOWER | Cylinder (SV420D) |
| 11320-78E10-000 | PLATE,CLUTCH HSG LOWER | Cylinder (SV420D) |
| 18480-78E01-000 | Jet,oil | Cylinder (SV420D) |
| 18481-78E01-000 | Valve,oil jet | Cylinder (SV420D) |
| 37820-77E90-000 | SWITCH ASSY,OIL PRESSURE | Cylinder (SV420D) |
| 37820-78E00-000 | Joint | Cylinder (SV420D) |
