SV620

Suzuki VITARA · 5,465 parts · 253 categories

5,465 items

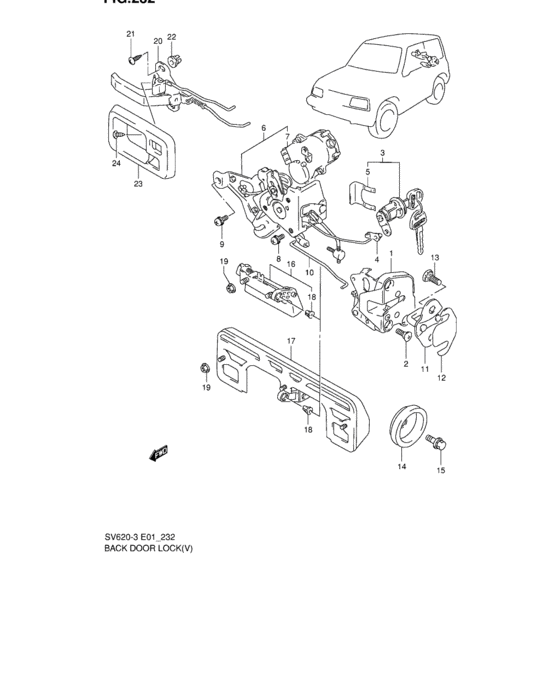

Back dr lock (V) 38

#	OEM	Part name
1	82530-61A00-000	LATCH ASSY,BACK DR
2	09137-06025-000	SCREW(6X16)
3	82500-60831-000	CYLINDER,BACK DR LOCK
3	82500-62820-000	Cylinder set, latch lock
4	82287-60A00-000	HOLDER
5	82577-61A00-000	RETAINER,RR GATE LATCH
6	83170-57B00-000	LINK ASSY,BACK DR LATCH
6	83170-58B00-000	LINK ASSY,BACK DR LATCH
7	82550-57B00-000	ACTUATOR,BACK DR LATCH
8	02112-76123-000	Screw
8	02112-7612B-000	SCREW
10	83175-61A00-000	ROD,BACK DOOR LATCH
11	82660-61A01-000	STRIKER,BACK DOOR LATCH
12	78199-78000-000	SPACER,DOOR LOCK STRIKER
13	09137-08011-000	SCREW(8X18)
14	82761-61A00-000	MALE,BACK DR STOP DR
15	09118-08128-000	BOLT(8X16) - Bolt, front fender, front
16	82850-61A01-000	HANDLE,BACK DOOR OUT
17	82850-62A01-5PK	HANDLE,BACK DOOR OUT
17	82850-62A01-1VN	HANDLE,BACK DOOR OUT
17	82850-62A01-0BM	Handle,back door out(blue)
17	82850-62A01-0DG	Handle comp,back door out
17	82850-62A01-0FT	Handle comp,back door out
17	82850-62A01-26U	HANDLE,BACK DOOR OUT
17	82850-62A01-Z2A	Handle, door outer - Red
17	82850-62A01-Y29	HANDLE,BACK DOOR OUT
17	82850-62A01-Z0M	HANDLE,BACK DOOR OUT
17	82850-62A01-Z1D	Handle,back door out(green)
18	82816-82001-000	SNAP,ADJUSTING JOINT
19	08316-20063-000	Nut
19	08316-2006A-000	NUT
20	83190-62A00-T01	HANDLE,BACK DOOR INSIDE
21	03241-06123-000	Screw
21	03241-0612A-000	SCREW
22	09148-06007-000	NUT
23	82981-82000-T01	BEZEL,BACK DR INSIDE HANDLE
24	03142-04083-000	スクリュ
24	03141-0408A-000	SCREW

OEM	Part name	Category
02112-76123-000	Screw	Back dr lock (V)
02112-7612B-000	SCREW	Back dr lock (V)
03141-0408A-000	SCREW	Back dr lock (V)
03142-04083-000	スクリュ	Back dr lock (V)
03241-06123-000	Screw	Back dr lock (V)
03241-0612A-000	SCREW	Back dr lock (V)
08316-20063-000	Nut	Back dr lock (V)
08316-2006A-000	NUT	Back dr lock (V)
09118-08128-000	BOLT(8X16) - Bolt, front fender, front	Back dr lock (V)
09137-06025-000	SCREW(6X16)	Back dr lock (V)
09137-08011-000	SCREW(8X18)	Back dr lock (V)
09148-06007-000	NUT	Back dr lock (V)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Back dr lock (V)
82287-60A00-000	HOLDER	Back dr lock (V)
82500-60831-000	CYLINDER,BACK DR LOCK	Back dr lock (V)
82500-62820-000	Cylinder set, latch lock	Back dr lock (V)
82530-61A00-000	LATCH ASSY,BACK DR	Back dr lock (V)
82550-57B00-000	ACTUATOR,BACK DR LATCH	Back dr lock (V)
82577-61A00-000	RETAINER,RR GATE LATCH	Back dr lock (V)
82660-61A01-000	STRIKER,BACK DOOR LATCH	Back dr lock (V)
82761-61A00-000	MALE,BACK DR STOP DR	Back dr lock (V)
82816-82001-000	SNAP,ADJUSTING JOINT	Back dr lock (V)
82850-61A01-000	HANDLE,BACK DOOR OUT	Back dr lock (V)
82850-62A01-0BM	Handle,back door out(blue)	Back dr lock (V)
82850-62A01-0DG	Handle comp,back door out	Back dr lock (V)
82850-62A01-0FT	Handle comp,back door out	Back dr lock (V)
82850-62A01-1VN	HANDLE,BACK DOOR OUT	Back dr lock (V)
82850-62A01-26U	HANDLE,BACK DOOR OUT	Back dr lock (V)
82850-62A01-5PK	HANDLE,BACK DOOR OUT	Back dr lock (V)
82850-62A01-Y29	HANDLE,BACK DOOR OUT	Back dr lock (V)
82850-62A01-Z0M	HANDLE,BACK DOOR OUT	Back dr lock (V)
82850-62A01-Z1D	Handle,back door out(green)	Back dr lock (V)
82850-62A01-Z2A	Handle, door outer - Red	Back dr lock (V)
82981-82000-T01	BEZEL,BACK DR INSIDE HANDLE	Back dr lock (V)
83170-57B00-000	LINK ASSY,BACK DR LATCH	Back dr lock (V)
83170-58B00-000	LINK ASSY,BACK DR LATCH	Back dr lock (V)
83175-61A00-000	ROD,BACK DOOR LATCH	Back dr lock (V)
83190-62A00-T01	HANDLE,BACK DOOR INSIDE	Back dr lock (V)
