SV620

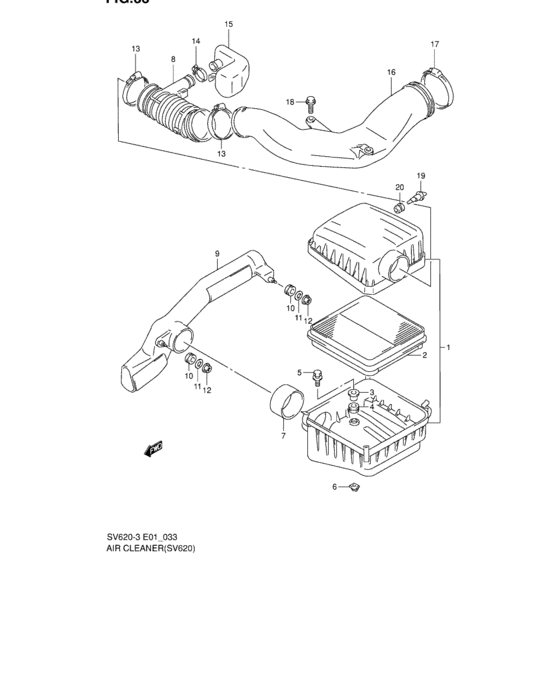

Air cleaner (SV620) 24
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-78E01-000 | CLEANER ASSY,AIR |
| 2 | 13780-77E00-000 | ELEMENT,AIR CLEANER |
| 3 | 13877-77E00-000 | SPACER |
| 4 | 13878-77E00-000 | クッション,エアクリーナ |
| 4 | 13878-77E01-000 | CUSHION |
| 5 | 09116-06172-000 | BOLT(6X30) - Bolt (6x30) |
| 6 | 09148-06006-000 | NUT - Nut, side |
| 7 | 13872-77E01-000 | ホース,エアクリーナ,インレット |
| 7 | 13872-78E00-000 | HOSE,AIR CLEANER INLET |
| 8 | 13881-77E01-000 | HOSE,AIR CLNR OUTLET |
| 9 | 13820-77E00-000 | CASE,AIR CLNR SUCTION |
| 10 | 13874-51E50-000 | CUSHION,RESONATOR NO.2 |
| 11 | 09160-06088-000 | WASHER(6.5X20X1.6) - Washer, upper |
| 12 | 08316-10063-000 | Nut |
| 12 | 08316-1006B-000 | NUT |
| 13 | 09402-82511-000 | CLAMP |
| 14 | 09402-38511-000 | CLAMP |
| 15 | 13761-77E01-000 | RESONATOR |
| 16 | 13830-77E10-000 | PIPE,AIR INTAKE |
| 17 | 09402-00512-000 | CLAMP |
| 18 | 09136-06133-000 | BOLT(6X16) - Screw |
| 19 | 13650-60G00-000 | SENSOR,INLET AIR TEMP |
| 20 | 13655-77E00-000 | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor |
| 20 | 13655-77E10-000 | Grommet,air Temp Sensor |
| OEM | Part name | Category |
|---|---|---|
| 08316-10063-000 | Nut | Air cleaner (SV620) |
| 08316-1006B-000 | NUT | Air cleaner (SV620) |
| 09116-06172-000 | BOLT(6X30) - Bolt (6x30) | Air cleaner (SV620) |
| 09136-06133-000 | BOLT(6X16) - Screw | Air cleaner (SV620) |
| 09148-06006-000 | NUT - Nut, side | Air cleaner (SV620) |
| 09160-06088-000 | WASHER(6.5X20X1.6) - Washer, upper | Air cleaner (SV620) |
| 09402-00512-000 | CLAMP | Air cleaner (SV620) |
| 09402-38511-000 | CLAMP | Air cleaner (SV620) |
| 09402-82511-000 | CLAMP | Air cleaner (SV620) |
| 13650-60G00-000 | SENSOR,INLET AIR TEMP | Air cleaner (SV620) |
| 13655-77E00-000 | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor | Air cleaner (SV620) |
| 13655-77E10-000 | Grommet,air Temp Sensor | Air cleaner (SV620) |
| 13700-78E01-000 | CLEANER ASSY,AIR | Air cleaner (SV620) |
| 13761-77E01-000 | RESONATOR | Air cleaner (SV620) |
| 13780-77E00-000 | ELEMENT,AIR CLEANER | Air cleaner (SV620) |
| 13820-77E00-000 | CASE,AIR CLNR SUCTION | Air cleaner (SV620) |
| 13830-77E10-000 | PIPE,AIR INTAKE | Air cleaner (SV620) |
| 13872-77E01-000 | ホース,エアクリーナ,インレット | Air cleaner (SV620) |
| 13872-78E00-000 | HOSE,AIR CLEANER INLET | Air cleaner (SV620) |
| 13874-51E50-000 | CUSHION,RESONATOR NO.2 | Air cleaner (SV620) |
| 13877-77E00-000 | SPACER | Air cleaner (SV620) |
| 13878-77E00-000 | クッション,エアクリーナ | Air cleaner (SV620) |
| 13878-77E01-000 | CUSHION | Air cleaner (SV620) |
| 13881-77E01-000 | HOSE,AIR CLNR OUTLET | Air cleaner (SV620) |
