| 02162-06203-000 |
Bolt |

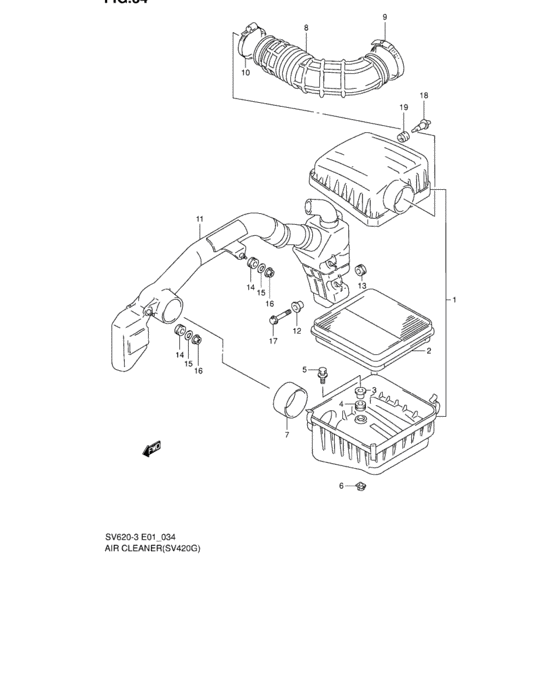

Air cleaner (SV420G) |
| 02162-0620C-000 |
SCREW |
Air cleaner (SV420G) |
| 08316-10063-000 |
Nut |
Air cleaner (SV420G) |
| 08316-1006B-000 |
NUT |
Air cleaner (SV420G) |
| 09116-06172-000 |
BOLT(6X30) - Bolt (6x30) |
Air cleaner (SV420G) |
| 09148-06006-000 |
NUT - Nut, side |
Air cleaner (SV420G) |
| 09160-06088-000 |
WASHER(6.5X20X1.6) - Washer, upper |
Air cleaner (SV420G) |
| 09169-07007-000 |
WASHER |
Air cleaner (SV420G) |
| 09320-08047-000 |
CUSHION |
Air cleaner (SV420G) |
| 09320-08518-000 |
Cushion |
Air cleaner (SV420G) |
| 09402-00512-000 |
CLAMP |
Air cleaner (SV420G) |
| 09402-82511-000 |
CLAMP |
Air cleaner (SV420G) |
| 13600-77EB0-000 |
CASE ASSY,AIR CLNR SUCTION |
Air cleaner (SV420G) |
| 13650-60G00-000 |
SENSOR,INLET AIR TEMP |
Air cleaner (SV420G) |
| 13655-77E00-000 |
GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor |
Air cleaner (SV420G) |
| 13655-77E10-000 |
Grommet,air Temp Sensor |
Air cleaner (SV420G) |
| 13700-77EB0-000 |
CLEANER ASSY,AIR |
Air cleaner (SV420G) |
| 13780-77E00-000 |
ELEMENT,AIR CLEANER |
Air cleaner (SV420G) |
| 13872-77E01-000 |
ホース,エアクリーナ,インレット |
Air cleaner (SV420G) |
| 13872-78E00-000 |
HOSE,AIR CLEANER INLET |
Air cleaner (SV420G) |
| 13874-51E50-000 |
CUSHION,RESONATOR NO.2 |
Air cleaner (SV420G) |
| 13877-77E00-000 |
SPACER |
Air cleaner (SV420G) |
| 13878-77E00-000 |
クッション,エアクリーナ |
Air cleaner (SV420G) |
| 13878-77E01-000 |
CUSHION |
Air cleaner (SV420G) |
| 13881-77EA0-000 |
Hose,air cleaner,outlet |
Air cleaner (SV420G) |
