Search › Model › SV55

SV55

Toyota VISTA-VISTA-ARDEO · 1998 · 4,606 parts · 186 categories

4,606 items

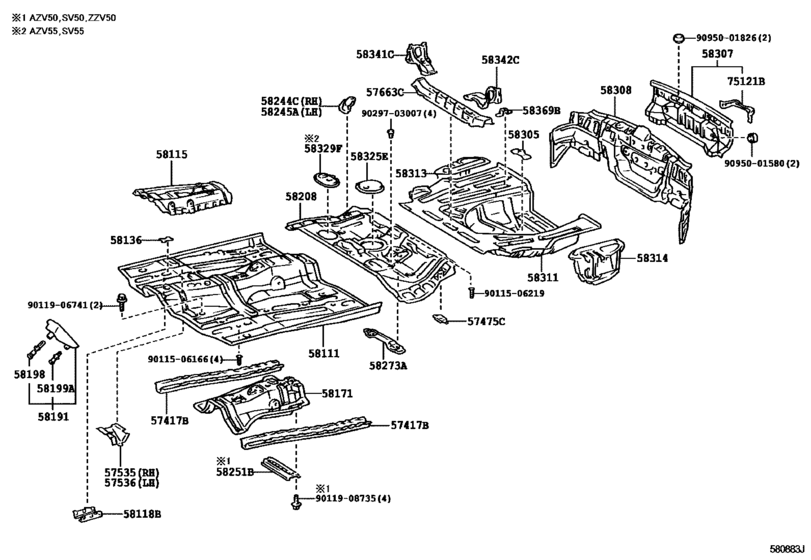

Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG) 44

#	OEM	Part name
57417	57417-32050	Reinforcement, Front Floor Under
57475	57475-32010	Plate, Front Floor Crossmember
57475	57475-63010	Plate, Front Floor Crossmember
57535	57535-32010	Brace, Front Floor, Rh
57536	57536-32010	Brace, Front Floor, Lh
57663	57663-32010	Member, Rear Floor Cross, Center
58111	58111-32901	Pan, Front Floor
58111	57451-32071	Member, Front Floor Cross
58111	58111-32902	Pan, Front Floor
58115	58115-32080	Reinforcement, Front Floor Panel, Front
58118	58118-32010	Reinforcement, Front Floor Panel, No.2
58136	58136-33010	Cover, Front Floor Hole
58171	58107-32090	Reinforcement, Parking Brake Base
58171	58107-32110	Reinforcement, Parking Brake Base
58191	58191-32050	Footrest, Front Floor
58191	58191-32051	Footrest, Front Floor
58198	58198-32010	Clip, Footrest
58199	58199-46010	Clip, Footrest, No.2
58208	58211-32241	Pan, Center Floor
58244	58244-32010	Bracket, Rear Seat Cushion Mounting, Rh
58245	58245-32010	Bracket, Rear Seat Hinge, Center No.1
58273	58273-32030	Reinforcement, Belt Anchor To Center Floor, Rh
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-32370	Panel Sub-Assy, Body Lower Back
58308	58308-32900	Panel Sub-Assy, Body Lower Back, Inner
58311	58311-32170	Pan, Rear Floor
58311	58311-32171	Pan, Rear Floor
58311	90333-30002	Cover, Front Floor Hole
58311	90950-01855	New Genuine Part
58313	58313-32110	Panel, Rear Floor Side, Rh
58314	58314-32130	Panel, Rear Floor Side, Lh
58325	58325-32050	Cover, Rear Floor Service Hole
58329	58329-32020	Cover, Rear Floor Service Hole, No.2
58341	58341-32040	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-32040	Bracket, Rear Absorber Mounting, No.1 Lh
58369	58369-20020	Bracket, Center Floor Heat Insulator
75121	75121-20170	Bracket, Rear License Plate
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9011906741	90119-06741	New Genuine Part
9011908735	90119-08735	New Genuine Part
9029703007	90297-03007	Retainer, Rear Heater Mounting
9095001580	90950-01580	Plug, Hole(For Clutch Under Cover)
9095001826	90950-01826	Plug, Hole(For Floor Panel)

OEM	Part name	Category
57417-32050	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
57451-32071	Member, Front Floor Cross	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
57475-32010	Plate, Front Floor Crossmember	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
57475-63010	Plate, Front Floor Crossmember	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
57535-32010	Brace, Front Floor, Rh	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
57536-32010	Brace, Front Floor, Lh	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
57663-32010	Member, Rear Floor Cross, Center	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58107-32090	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58107-32110	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58111-32901	Pan, Front Floor	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58111-32902	Pan, Front Floor	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58115-32080	Reinforcement, Front Floor Panel, Front	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58118-32010	Reinforcement, Front Floor Panel, No.2	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58191-32050	Footrest, Front Floor	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58191-32051	Footrest, Front Floor	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58198-32010	Clip, Footrest	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58199-46010	Clip, Footrest, No.2	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58211-32241	Pan, Center Floor	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58244-32010	Bracket, Rear Seat Cushion Mounting, Rh	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58245-32010	Bracket, Rear Seat Hinge, Center No.1	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58273-32030	Reinforcement, Belt Anchor To Center Floor, Rh	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58307-32370	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58308-32900	Panel Sub-Assy, Body Lower Back, Inner	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58311-32170	Pan, Rear Floor	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58311-32171	Pan, Rear Floor	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58313-32110	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58314-32130	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58325-32050	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58329-32020	Cover, Rear Floor Service Hole, No.2	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58341-32040	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58342-32040	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
58369-20020	Bracket, Center Floor Heat Insulator	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
75121-20170	Bracket, Rear License Plate	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90119-06741	New Genuine Part	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90119-08735	New Genuine Part	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90333-30002	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90950-01580	Plug, Hole(For Clutch Under Cover)	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90950-01826	Plug, Hole(For Floor Panel)	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
90950-01855	New Genuine Part	Floor Pan & Lower Back Panel ([06.1998 - ] (9806- )WG)
