SV420G

Suzuki VITARA · 5,465 parts · 253 categories
SV420G ×

← Back to categories

5,465 items

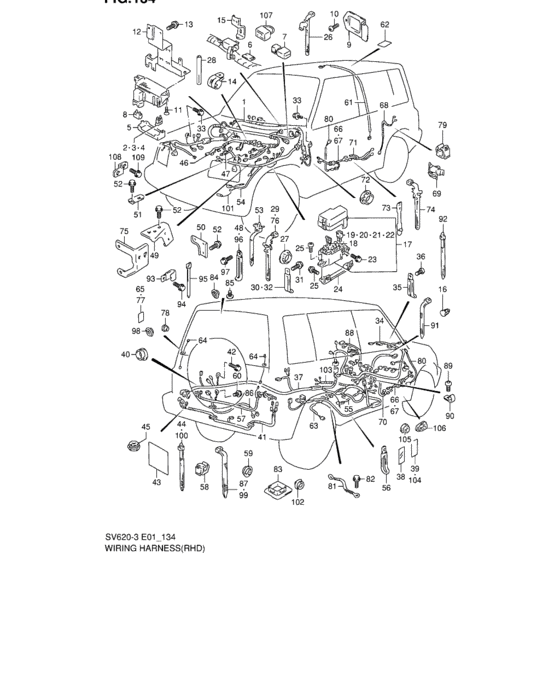

Wiring harness (RHD) 161
#OEMPart name
1 36910-77EM1-000 Harness assy, wiring main
1 36901-77E41-000 Harness assy, wiring main
1 36901-77E61-000 Harness assy, wiring main
1 36910-77EP1-000 Harness assy, wiring main
1 36610-85F31-000 Harness assy, wiring main
1 36610-85F51-000 Harness assy, wiring main
1 36610-85FF1-000 Harness assy, wiring main
1 36610-85FH1-000 Harness assy, wiring main
1 36610-78EL0-000 Harness assy, wiring main
1 36610-78EM1-000 Harness assy, wiring main
1 36910-77EL1-000 Harness assy, wiring main
1 36901-77E31-000 Harness assy, wiring main
1 36901-77E51-000 Harness assy, wiring main
1 36910-77EN1-000 Harness assy, wiring main
1 36610-85F21-000 Harness assy, wiring main
1 36610-85F41-000 Harness assy, wiring main
1 36610-85FE1-000 Harness assy, wiring main
1 36610-85FG1-000 Harness assy, wiring main
1 36610-78EQ0-000 Harness assy, wiring main
1 36610-78ER1-000 Harness assy, wiring main
2 09481-15101-000 FUSE(15A) - Fuse (15a)
3 09481-20101-000 FUSE(20A)
4 09481-25103-000 FUSE(25A)
5 36717-77E01-000 COVER,FUSE BOX
6 33458-60A10-000 DIODE
7 33553-52E00-000 FILTER,NOISE SUPPR
8 36795-82000-000 BREAKER,POWER WINDOW
9 36614-70E10-000 BRACKET,MAIN HARN
10 02162-06103-000 Bolt - Bolt, bracket
10 02162-0610A-000 SCREW
11 02162-05123-000 Screw
11 02162-0512A-000 SCREW
12 36735-77E13-000 Bracket,fuse box
13 02162-06123-000 Bolt (6x12)
13 02162-0612B-000 SCREW - Bolt
13 02162-0612A-000 SCREW - Bolt, bracket
14 36649-50F60-000 CLAMP,HARN
15 36996-70E00-000 PROTECTOR,MAIN HARNESS
16 09409-07320-000 CAP
17 36740-77E00-000 BOX ASSY,MAIN FUSE
17 36740-77E21-000 BOX ASSY,MAIN FUSE
19 09481-30203-000 FUSE(30A)
20 09481-60202-000 FUSE(60A)
21 09481-80301-000 FUSE(80A)
22 09481-50203-000 FUSE(50A)
23 09138-06040-000 BOLT(6X10)
24 36737-77E00-000 BRACKET,MAIN FUSE
26 36990-56B00-000 CLAMP,HARN DASH PANEL
27 09308-25002-000 GROMMET
28 75958-77E00-000 PROTECTOR,NO.4
29 09407-12404-000 CLAMP(L:140)
30 09404-06434-000 CLAMP(L:80 T:1.0)
30 09404-06036-000 Clamp(L:80)
31 02162-06163-000 Screw - Bolt
31 02162-0616B-000 SCREW - Bolt, adjust
32 09404-08206-000 CLAMP(L:65 T:0.8)
33 09115-06001-000 Bolt, lh - Bolt (6x16)
33 09115-06005-000 BOLT(6X16)
34 36620-85FV0-000 Harness assy,instpnl
34 36620-85FR0-000 Harness assy, instrument panel
34 36620-85FF0-000 Harness assy, instrument panel
34 36620-78EH0-000 Harness assy, instrument panel
36 03541-05163-000 Screw
36 03541-0516A-000 SCREW
37 36630-73E10-000 ハーネスアッシ,ワイヤリング,フロア
37 36630-77EJ0-000 HARNESS ASSY,WRG FLOOR
37 36630-85FB0-000 Harness assy, wiring floor
37 36630-77EN0-000 HARNESS ASSY,WRG FLOOR
37 36630-77EP0-000 Harness assy,wrg,floor
37 36630-77ES0-000 Harness assy, wiring floor
38 76561-60A00-000 TAPE
39 36930-82010-000 COVER,HARNESS - Cover, roof wire
40 09308-42001-000 GROMMET
41 36640-77E20-000 HARNESS ASSY,WRG RR LAMP
42 09129-06002-000 SCREW(6X12)
43 36930-70E10-000 COVER,HARNESS
44 09407-11402-000 CLAMP(L:90)
44 09407-17402-000 CLAMP
45 09250-30010-000 Grommet - Grommet, fender
45 72999-67H00-000 CAP,OD:40
46 36650-77E70-000 ハーネスアッシ,ワイヤリング,エンジン
46 36650-77EB0-000 ハーネスアッシ,ワイヤリング,エンジン
46 36650-78E21-000 ハーネスアッシ,ワイヤリング,エンジン
46 36650-77E60-000 Harness assy,wrg,eng
46 36650-77EA0-000 ハーネスアッシ,ワイヤリング,エンジン
46 36650-78E41-000 Harness assy, wiring engine
47 36670-67D00-000 HARNESS ASSY WIRING ENGINE
47 36670-67D01-000 HARNESS ASSY,INJ
47 36670-77E10-000 HARNESS ASSY,WRG INJECTION
48 09404-06432-000 CLAMP(L:65) - Clamp (l:80)
48 09404-06039-000 Clamp(L:65)
49 36995-77E00-000 BRACKET,ENG HARN
50 36995-77E40-000 BRACKET,ENG HARN
51 36995-77E21-000 BRACKET,ENG HARN
52 01550-06123-000 Bolt
52 01550-0612B-000 Bolt - Bolt, clamp
52 01550-0612A-000 Bolt
53 09407-12405-000 CLAMP
54 36895-77E00-000 Wire comp,oil press sw
55 36660-77E00-000 Harness assy,wrg,mission
55 36660-77E70-000 ハーネスアッシ,ワイヤリング,ミッション
55 36660-77E90-000 HARNESS ASSY,WRG MISSION
55 36660-60A00-000 HARNESS ASSY,WRG MISSION
55 36660-77EC0-000 Harness assy, wiring mission
55 36660-77E80-000 Harness assy, wiring mission
56 09404-08420-000 CLAMP(L:120 T:1.0)
57 36845-62A11-000 WIRE,BACK DR
57 36845-60A31-000 ワイヤ,バックドア
57 36845-62A21-000 WIRE,BACK DR
58 36667-60A00-000 CLAMP,DR LOCK WIRE
59 09308-28001-000 GROMMET
60 09139-05028-000 SCREW(5X14)
61 36820-60A30-000 WIRE,ROOM LAMP
61 36820-56B00-000 WIRE,ROOM LAMP
63 36880-60A60-000 WIRE,SHIFT ILLUM
64 36890-70C00-000 WIRE,RR DF LEAD
66 36756-70E00-000 WIRE,WDO&MIRROR,R
67 36756-62A00-000 WIRE,WDO&MIRROR DRVR
68 36756-62A20-000 WIRE,RR DR
69 34935-56B00-000 CLAMP,RR DR LEAD WIRE
70 36757-70E00-000 WIRE,DR SOLENOID&SW
70 36757-62A00-000 WIRE,DR SOL&SW
71 36757-70E20-000 WIRE,DR SOLENOID
71 36757-62A10-000 WIRE,DR SOL
72 09308-40001-000 GROMMET
73 09407-05403-000 CLAMP,L:88
75 36995-65D01-000 BRACKET,ENG HARN
78 09308-03005-000 GROMMET
80 36753-60A00-000 Wire,mirrormot
80 36753-70E00-000 WIRE,MIRROR MOTOR
81 39312-50F01-000 WIRE,NOISE SUPPR
81 39312-77E10-000 WIRE,HORN GND
83 75411-60A00-000 CAP,TAIL MEMBER LOWER
84 83919-82000-000 PLUG,DOOR INNER REAR - Cap, floor drain
85 09250-05011-000 キャップ,OD:12
85 09250-05011-5PK CAP(OD:12) - Plug
86 36875-77E00-000 Wire,abs rr sensor
86 36875-77E10-000 ワイヤ,ABSセンサ
87 09407-18402-000 CLAMP(L:165) - Clamp (l:165)
88 36690-77E12-000 ハーネスアッシ,ワイヤリングエアバッグ
89 09137-06020-000 SCREW(6X14)
90 09403-14204-000 CLAMP
90 09403-14415-000 Clamp
92 09407-17401-000 Clamp (l:150)
95 09407-14403-000 CLAMP(L:125) - Clamp, spark plug cap
96 09404-08207-000 CLAMP(L:80)
96 09404-08212-000 Clamp
97 01550-08123-000 Bolt - Plug, oil gallery
97 01550-0812B-000 Bolt - Plug, drain
97 01550-0812A-000 Bolt
98 09250-20015-000 CAP(OD:28.5) - Cap, air con harness
99 09407-25401-000 CLAMP(L:235) - Clamp (l:235)
101 36955-77E00-000 WIRE,POWER STEERING
102 09250-25007-000 CAP(OD:25.0)
103 36823-70E70-000 Wire comp,belt & park sw
103 36823-71E10-000 WIRE,BELT&PARK SW
103 36823-77E20-000 Wire, belt & parking switch
105 36995-60A10-000 GROMMET,SIDE SIL
106 09250-20017-000 PLUG(OD:20) - Plug, lower cover
107 36830-80000-000 Wire, joint
108 18345-78E01-000 BRACKET,HARN
