SV420G

Suzuki VITARA · 5,465 parts · 253 categories
SV420G ×

← Back to categories

5,465 items

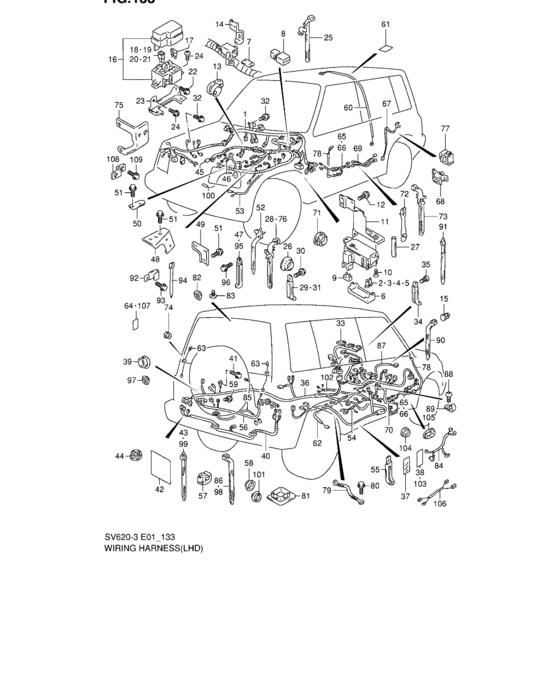

Wiring harness (LHD) 170
#OEMPart name
1 36910-77ER0-000 Harness assy, wiring main
1 36901-77EC0-000 Harness assy, wiring main
1 36901-77EE0-000 Harness assy, wiring main
1 36901-77E80-000 Harness assy, wiring main
1 36901-77EA0-000 Harness assy, wiring main
1 36610-85FP0-000 Harness assy, wiring main
1 36610-85FB0-000 Harness assy, wiring main
1 36610-85F70-000 Harness assy,.wiring main
1 36610-85F90-000 Harness assy, wiring main
1 36610-85FD0-000 Harness assy, wiring main
1 36610-78EN0-000 Harness assy, wiring main
1 36610-78EP0-000 Harness assy, wiring main
1 36910-77EQ0-000 Harness assy, wiring main
1 36901-77EB0-000 Harness assy, wiring main
1 36901-77ED0-000 Harness assy, wiring main
1 36901-77E70-000 Harness assy, wiring main
1 36901-77E91-000 Harness assy, wiring main
1 36610-85FN0-000 Harness assy, wiring main
1 36610-85FC0-000 Harness assy, wiring main
1 36610-85FA0-000 Harness assy, wiring main
1 36610-85F60-000 Harness assy, wiring main
1 36610-85F80-000 Harness assy, wiring main
1 36610-78ES0-000 Harness assy, wiring main
1 36610-78ET0-000 Harness assy, wiring main
2 09481-10101-000 FUSE(10A)
3 09481-15101-000 FUSE(15A) - Fuse (15a)
4 09481-20101-000 FUSE(20A)
5 09481-25103-000 FUSE(25A)
6 36717-77E01-000 COVER,FUSE BOX
6 36717-60A11-000 COVER,FUSE BOX
7 33458-60A10-000 DIODE
8 33553-52E00-000 FILTER,NOISE SUPPR
9 36795-82000-000 BREAKER,POWER WINDOW
10 02162-05123-000 Screw
10 02162-0512A-000 SCREW
11 36735-77E04-000 BRACKET,FUSE BOX
12 02162-06123-000 Bolt (6x12)
12 02162-0612B-000 SCREW - Bolt
12 02162-0612A-000 SCREW - Bolt, bracket
13 36649-50F60-000 CLAMP,HARN
14 36996-70E00-000 PROTECTOR,MAIN HARNESS
15 09409-07320-000 CAP
16 36740-77E00-000 BOX ASSY,MAIN FUSE
16 36740-77E21-000 BOX ASSY,MAIN FUSE
18 09481-30203-000 FUSE(30A)
19 09481-60202-000 FUSE(60A)
20 09481-80301-000 FUSE(80A)
21 09481-50203-000 FUSE(50A)
22 09138-06040-000 BOLT(6X10)
23 36737-77E00-000 BRACKET,MAIN FUSE
24 02162-06103-000 Bolt - Bolt, bracket
24 02162-0610A-000 SCREW
25 36990-56B00-000 CLAMP,HARN DASH PANEL
26 09308-25002-000 GROMMET
27 75958-77E00-000 PROTECTOR,NO.4
28 09407-12404-000 CLAMP(L:140)
29 09404-06434-000 CLAMP(L:80 T:1.0)
29 09404-06036-000 Clamp(L:80)
30 02162-06163-000 Screw - Bolt
30 02162-0616B-000 SCREW - Bolt, adjust
31 09404-08206-000 CLAMP(L:65 T:0.8)
32 09115-06001-000 Bolt, lh - Bolt (6x16)
32 09115-06005-000 BOLT(6X16)
33 36620-85F20-000 HARNESS ASSY,WRG I/P
33 36620-77EJ1-000 Harness assy, instrument panel
33 36620-85FH0-000 Harness assy, instrument panel
33 36620-85FB0-000 Harness assy,wrg,instpnl
33 36620-85FG0-000 Harness assy, instrument panel
33 36620-77E73-000 Harness assy, instrument panel
33 36620-78EJ0-000 Harness assy, instrument panel
35 03541-05163-000 Screw
35 03541-0516A-000 SCREW
36 36630-85F40-000 Harness assy, wiring floor
36 36630-85F30-000 Harness assy,wrg,floor
36 36630-73E80-000 HARNESS ASSY,WRG FLOOR
36 36630-77ER0-000 Harness assy,wrg,floor
36 36630-85F00-000 Harness assy, wiring floor
37 76561-60A00-000 TAPE
38 36930-82010-000 COVER,HARNESS - Cover, roof wire
39 09308-42001-000 GROMMET
40 36640-77E20-000 HARNESS ASSY,WRG RR LAMP
41 09129-06002-000 SCREW(6X12)
42 36930-70E10-000 COVER,HARNESS
43 09407-11402-000 CLAMP(L:90)
43 09407-17402-000 CLAMP
44 09250-30010-000 Grommet - Grommet, fender
44 72999-67H00-000 CAP,OD:40
45 36650-77E70-000 ハーネスアッシ,ワイヤリング,エンジン
45 36650-77EH0-000 Harness assy, wiring engine
45 36650-78E31-000 Harness,wrg,engine
45 36650-77E60-000 Harness assy,wrg,eng
45 36650-77EJ0-000 Harness assy, wiring engine
45 36650-78E51-000 Harness assy, wiring engine
46 36670-67D00-000 HARNESS ASSY WIRING ENGINE
46 36670-67D01-000 HARNESS ASSY,INJ
46 36670-77E10-000 HARNESS ASSY,WRG INJECTION
47 09404-06432-000 CLAMP(L:65) - Clamp (l:80)
47 09404-06039-000 Clamp(L:65)
48 36995-77E00-000 BRACKET,ENG HARN
49 36995-77E40-000 BRACKET,ENG HARN
50 36995-77E21-000 BRACKET,ENG HARN
51 01550-06123-000 Bolt
51 01550-0612B-000 Bolt - Bolt, clamp
51 01550-0612A-000 Bolt
52 09407-12405-000 CLAMP
53 36895-77E00-000 Wire comp,oil press sw
54 36660-77E00-000 Harness assy,wrg,mission
54 36660-77E70-000 ハーネスアッシ,ワイヤリング,ミッション
54 36660-77E90-000 HARNESS ASSY,WRG MISSION
54 36660-60A00-000 HARNESS ASSY,WRG MISSION
54 36660-77EC0-000 Harness assy, wiring mission
54 36660-77E80-000 Harness assy, wiring mission
55 09404-08420-000 CLAMP(L:120 T:1.0)
56 36845-60A31-000 ワイヤ,バックドア
56 36845-62A11-000 WIRE,BACK DR
57 36667-60A00-000 CLAMP,DR LOCK WIRE
58 09308-28001-000 GROMMET
59 09139-05028-000 SCREW(5X14)
60 36820-60A30-000 WIRE,ROOM LAMP
60 36820-56B00-000 WIRE,ROOM LAMP
62 36880-60A60-000 WIRE,SHIFT ILLUM
63 36890-70C00-000 WIRE,RR DF LEAD
65 36756-70E00-000 WIRE,WDO&MIRROR,R
66 36756-62A00-000 WIRE,WDO&MIRROR DRVR
67 36756-62A20-000 WIRE,RR DR
68 34935-56B00-000 CLAMP,RR DR LEAD WIRE
69 36757-70E00-000 WIRE,DR SOLENOID&SW
69 36757-62A00-000 WIRE,DR SOL&SW
70 36757-70E20-000 WIRE,DR SOLENOID
70 36757-62A10-000 WIRE,DR SOL
71 09308-40001-000 GROMMET
72 09407-05403-000 CLAMP,L:88
74 09308-03005-000 GROMMET
75 36995-65D01-000 BRACKET,ENG HARN
78 36753-60A00-000 Wire,mirrormot
78 36753-70E00-000 WIRE,MIRROR MOTOR
79 39312-50F01-000 WIRE,NOISE SUPPR
79 39312-77E10-000 WIRE,HORN GND
81 75411-60A00-000 CAP,TAIL MEMBER LOWER
82 83919-82000-000 PLUG,DOOR INNER REAR - Cap, floor drain
83 09250-05011-000 キャップ,OD:12
83 09250-05011-5PK CAP(OD:12) - Plug
84 36824-57B31-000 WIRE,SHEAT HTR
85 36875-77E00-000 Wire,abs rr sensor
85 36875-77E10-000 ワイヤ,ABSセンサ
86 09407-18402-000 CLAMP(L:165) - Clamp (l:165)
87 36690-77E22-000 Harness assy, wiring air bag
88 09137-06020-000 SCREW(6X14)
89 09403-14204-000 CLAMP
89 09403-14415-000 Clamp
90 09407-14403-000 CLAMP(L:125) - Clamp, spark plug cap
91 09407-17401-000 Clamp (l:150)
95 09404-08207-000 CLAMP(L:80)
95 09404-08212-000 Clamp
96 01550-08123-000 Bolt - Plug, oil gallery
96 01550-0812B-000 Bolt - Plug, drain
96 01550-0812A-000 Bolt
97 09250-20015-000 CAP(OD:28.5) - Cap, air con harness
98 09407-25401-000 CLAMP(L:235) - Clamp (l:235)
100 36955-77E00-000 WIRE,POWER STEERING
101 09250-25007-000 CAP(OD:25.0)
102 36823-70E70-000 Wire comp,belt & park sw
102 36823-71E10-000 WIRE,BELT&PARK SW
102 36823-77E20-000 Wire, belt & parking switch
102 36823-77E30-000 Wire, belt/parking switch
102 36823-71E00-000 Wire, belt/parking switch
104 36995-60A10-000 GROMMET,SIDE SIL
105 09250-20017-000 PLUG(OD:20) - Plug, lower cover
106 36631-70E00-000 Wire, seat heater switch
108 18345-78E01-000 BRACKET,HARN
