| 01570-06123-000 |
Bolt |

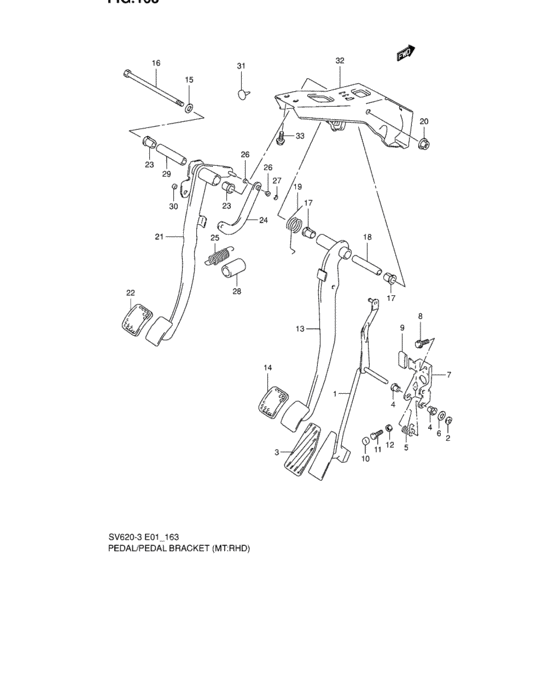

Pedal and pedal bracket (MT:RHD) |
| 01570-0612A-000 |
Bolt |
Pedal and pedal bracket (MT:RHD) |
| 01570-0612B-000 |
Bolt - Bolt, upper |
Pedal and pedal bracket (MT:RHD) |
| 01580-08203-000 |
Bolt, rear |
Pedal and pedal bracket (MT:RHD) |
| 01580-0820A-000 |
Bolt |
Pedal and pedal bracket (MT:RHD) |
| 08310-00063-000 |
Nut |
Pedal and pedal bracket (MT:RHD) |
| 08310-0006A-000 |
NUT |
Pedal and pedal bracket (MT:RHD) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
Pedal and pedal bracket (MT:RHD) |
| 08316-20103-000 |
Nut |
Pedal and pedal bracket (MT:RHD) |
| 08316-2010B-000 |
NUT |
Pedal and pedal bracket (MT:RHD) |
| 08322-01103-000 |
Washer |
Pedal and pedal bracket (MT:RHD) |
| 08322-0110A-000 |
WASHER - Washer, knuckle end |
Pedal and pedal bracket (MT:RHD) |
| 08322-0110B-000 |
WASHER - Washer, knuckle end |
Pedal and pedal bracket (MT:RHD) |
| 08332-11056-000 |
E ring |
Pedal and pedal bracket (MT:RHD) |
| 08332-1105A-000 |
E RING |
Pedal and pedal bracket (MT:RHD) |
| 09100-06150-000 |
BOLT(6X31) - Bolt, adjuster |
Pedal and pedal bracket (MT:RHD) |
| 09100-10056-000 |
BOLT(10X160) |
Pedal and pedal bracket (MT:RHD) |
| 09148-09001-000 |
NUT |
Pedal and pedal bracket (MT:RHD) |
| 09160-09016-000 |
WASHER(9.5X20X1) |
Pedal and pedal bracket (MT:RHD) |
| 09180-10121-000 |
SPACER(10.1X13X73.8) |
Pedal and pedal bracket (MT:RHD) |
| 09251-09002-000 |
CAP(OD:13.6) |
Pedal and pedal bracket (MT:RHD) |
| 09251-09008-000 |
Cap(Od:13.6) |
Pedal and pedal bracket (MT:RHD) |
| 09306-06004-000 |
BUSH |
Pedal and pedal bracket (MT:RHD) |
| 09307-08002-000 |
BUSH |
Pedal and pedal bracket (MT:RHD) |
| 09307-09001-000 |
BUSH |
Pedal and pedal bracket (MT:RHD) |
| 09307-13005-000 |
BUSH - Bushing |
Pedal and pedal bracket (MT:RHD) |
| 09321-06026-000 |
CUSHION |
Pedal and pedal bracket (MT:RHD) |
| 09448-21005-000 |
SPRING |
Pedal and pedal bracket (MT:RHD) |
| 49410-77E10-000 |
PEDAL,ACCELERATOR |
Pedal and pedal bracket (MT:RHD) |
| 49416-60A00-000 |
CUSHION,ACCEL PEDAL RETURN |
Pedal and pedal bracket (MT:RHD) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
Pedal and pedal bracket (MT:RHD) |
| 49511-65D00-000 |
BRACKET,ACCELERATOR |
Pedal and pedal bracket (MT:RHD) |
| 49610-77E00-000 |
Pedal comp,brake |
Pedal and pedal bracket (MT:RHD) |
| 49691-62A00-000 |
SPRING,BRAKE PEDAL RETURN |
Pedal and pedal bracket (MT:RHD) |
| 49710-77E01-000 |
BRACKET,PEDAL |
Pedal and pedal bracket (MT:RHD) |
| 49751-58J00-000 |
PAD,PEDAL |
Pedal and pedal bracket (MT:RHD) |
| 49751-79001-000 |
Pad, pedal |
Pedal and pedal bracket (MT:RHD) |
| 49810-77E00-000 |
PEDAL,CLUTCH |
Pedal and pedal bracket (MT:RHD) |
| 49810-77E10-000 |
Pedal, clutch |
Pedal and pedal bracket (MT:RHD) |
| 49830-77E00-000 |
ARM,CL RETURN SPRING |
Pedal and pedal bracket (MT:RHD) |
| 49891-77E01-000 |
SPRING,CLUTCH PEDAL RETURN |
Pedal and pedal bracket (MT:RHD) |
| 49892-77E00-000 |
TUBE,CL PEDAL RETURN SPRING |
Pedal and pedal bracket (MT:RHD) |
