SV420G

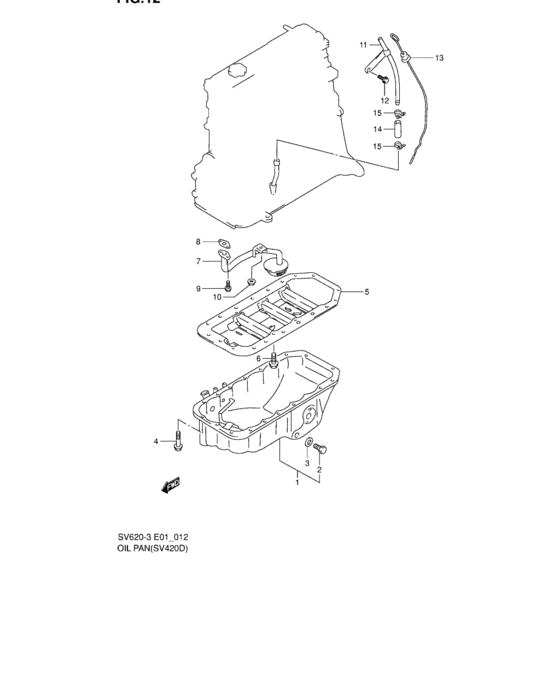

Oil pan (SV420D) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 11511-78E10-000 | PAN,OIL |
| 2 | 11513-78E00-000 | PLUG,DRAIN |
| 5 | 11512-78E10-000 | PLATE,OIL BAFFLE OIL PAN |
| 7 | 16520-78E01-000 | Strainer,oil |
| 8 | 16527-78E00-000 | GASKET,OIL STRAINER |
| 10 | 08316-10063-000 | Nut |
| 10 | 08316-1006B-000 | NUT |
| 11 | 16931-78E00-000 | PIPE,OIL LEVEL GAUGE |
| 13 | 16910-78E02-000 | GAUGE,OIL LEVEL |
| 14 | 16932-78E00-000 | HOLDER,GAUGE PIPE |
| 15 | 09401-15404-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 08316-10063-000 | Nut | Oil pan (SV420D) |
| 08316-1006B-000 | NUT | Oil pan (SV420D) |
| 09401-15404-000 | CLIP | Oil pan (SV420D) |
| 11511-78E10-000 | PAN,OIL | Oil pan (SV420D) |
| 11512-78E10-000 | PLATE,OIL BAFFLE OIL PAN | Oil pan (SV420D) |
| 11513-78E00-000 | PLUG,DRAIN | Oil pan (SV420D) |
| 16520-78E01-000 | Strainer,oil | Oil pan (SV420D) |
| 16527-78E00-000 | GASKET,OIL STRAINER | Oil pan (SV420D) |
| 16910-78E02-000 | GAUGE,OIL LEVEL | Oil pan (SV420D) |
| 16931-78E00-000 | PIPE,OIL LEVEL GAUGE | Oil pan (SV420D) |
| 16932-78E00-000 | HOLDER,GAUGE PIPE | Oil pan (SV420D) |
