Search › Model › SV420G
SV420G

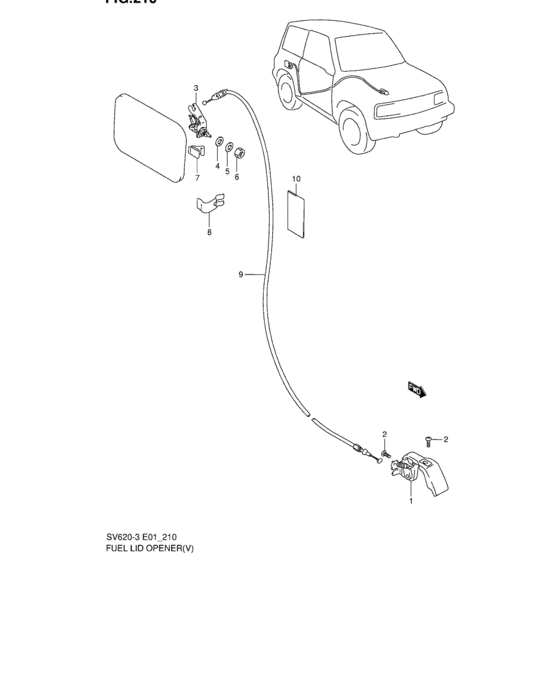

Fuel lid opener (V) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 76510-60A00-000 | HANDLE ASSY,FUEL OPENER |
| 2 | 03241-06123-000 | Screw |
| 2 | 03241-0612A-000 | SCREW |
| 3 | 76520-60A00-000 | OPENER ASSY,FUEL LID |
| 4 | 09160-13011-000 | WASHER(13X21X2.5) |
| 5 | 08322-01103-000 | Washer |
| 5 | 08322-0110B-000 | WASHER - Washer, knuckle end |
| 5 | 08322-0110A-000 | WASHER - Washer, knuckle end |
| 6 | 08310-00103-000 | Nut |
| 6 | 08310-0010B-000 | NUT |
| 6 | 08310-0010A-000 | NUT |
| 7 | 76531-60A20-000 | SPRING,FUEL LID NO.2 |
| 8 | 77118-60B02-000 | SPRING,FUEL LID |
| 9 | 76550-56B10-000 | CABLE ASSY,FUEL OPENER,L |
| 9 | 76550-60A00-000 | CABLE ASSY,FUEL OPENER,R |
| 9 | 76550-56B00-000 | CABLE ASSY,FUEL OPENER,R |
| 10 | 76561-60A00-000 | TAPE |
| OEM | Part name | Category |
|---|---|---|
| 03241-06123-000 | Screw | Fuel lid opener (V) |
| 03241-0612A-000 | SCREW | Fuel lid opener (V) |
| 08310-00103-000 | Nut | Fuel lid opener (V) |
| 08310-0010A-000 | NUT | Fuel lid opener (V) |
| 08310-0010B-000 | NUT | Fuel lid opener (V) |
| 08322-01103-000 | Washer | Fuel lid opener (V) |
| 08322-0110A-000 | WASHER - Washer, knuckle end | Fuel lid opener (V) |
| 08322-0110B-000 | WASHER - Washer, knuckle end | Fuel lid opener (V) |
| 09160-13011-000 | WASHER(13X21X2.5) | Fuel lid opener (V) |
| 76510-60A00-000 | HANDLE ASSY,FUEL OPENER | Fuel lid opener (V) |
| 76520-60A00-000 | OPENER ASSY,FUEL LID | Fuel lid opener (V) |
| 76531-60A20-000 | SPRING,FUEL LID NO.2 | Fuel lid opener (V) |
| 76550-56B00-000 | CABLE ASSY,FUEL OPENER,R | Fuel lid opener (V) |
| 76550-56B10-000 | CABLE ASSY,FUEL OPENER,L | Fuel lid opener (V) |
| 76550-60A00-000 | CABLE ASSY,FUEL OPENER,R | Fuel lid opener (V) |
| 76561-60A00-000 | TAPE | Fuel lid opener (V) |
| 77118-60B02-000 | SPRING,FUEL LID | Fuel lid opener (V) |
