Search › Model › SV420G
SV420G

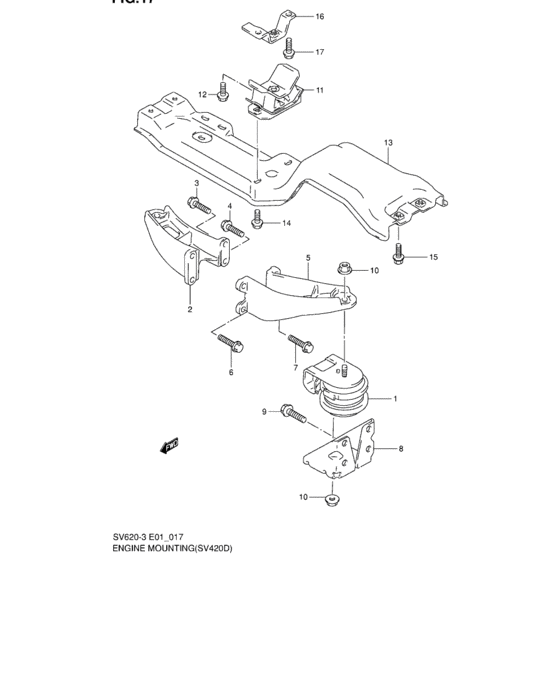

Engine mounting (SV420D) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 11610-68D00-000 | MOUNTING,ENG FR |
| 2 | 11641-78E00-000 | BRACKET,ENG FR MTG,R |
| 3 | 01560-10303-000 | ボルト |
| 3 | 01560-1030A-000 | Bolt |
| 4 | 01560-10453-000 | Bolt |
| 5 | 11651-78E00-000 | BRACKET,ENG FR MTG,L |
| 8 | 11661-65D00-000 | BRACKET,ENG FR MTG FRAME SIDE |
| 9 | 01570-12353-000 | ボルト |
| 9 | 01570-1235A-000 | Bolt |
| 10 | 08316-10103-000 | Nut |
| 10 | 08316-1010B-000 | NUT |
| 11 | 11710-60A01-000 | MOUNTING,ENG RR |
| 12 | 01560-10203-000 | Bolt |
| 12 | 01560-1020A-000 | Bolt |
| 13 | 11730-77E04-000 | MEMBER,RR MTG |
| 14 | 01560-10163-000 | ボルト |
| 14 | 01560-1016A-000 | Bolt |
| 15 | 01580-10253-000 | ボルト |
| 15 | 01580-1025A-000 | Bolt |
| 16 | 11741-78E00-000 | BRACKET,ENG RR MTG |
| 17 | 01560-10253-000 | SCHRAUBE |
| 17 | 01560-1025A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01560-10163-000 | ボルト | Engine mounting (SV420D) |
| 01560-1016A-000 | Bolt | Engine mounting (SV420D) |
| 01560-10203-000 | Bolt | Engine mounting (SV420D) |
| 01560-1020A-000 | Bolt | Engine mounting (SV420D) |
| 01560-10253-000 | SCHRAUBE | Engine mounting (SV420D) |
| 01560-1025A-000 | Bolt | Engine mounting (SV420D) |
| 01560-10303-000 | ボルト | Engine mounting (SV420D) |
| 01560-1030A-000 | Bolt | Engine mounting (SV420D) |
| 01560-10453-000 | Bolt | Engine mounting (SV420D) |
| 01570-12353-000 | ボルト | Engine mounting (SV420D) |
| 01570-1235A-000 | Bolt | Engine mounting (SV420D) |
| 01580-10253-000 | ボルト | Engine mounting (SV420D) |
| 01580-1025A-000 | Bolt | Engine mounting (SV420D) |
| 08316-10103-000 | Nut | Engine mounting (SV420D) |
| 08316-1010B-000 | NUT | Engine mounting (SV420D) |
| 11610-68D00-000 | MOUNTING,ENG FR | Engine mounting (SV420D) |
| 11641-78E00-000 | BRACKET,ENG FR MTG,R | Engine mounting (SV420D) |
| 11651-78E00-000 | BRACKET,ENG FR MTG,L | Engine mounting (SV420D) |
| 11661-65D00-000 | BRACKET,ENG FR MTG FRAME SIDE | Engine mounting (SV420D) |
| 11710-60A01-000 | MOUNTING,ENG RR | Engine mounting (SV420D) |
| 11730-77E04-000 | MEMBER,RR MTG | Engine mounting (SV420D) |
| 11741-78E00-000 | BRACKET,ENG RR MTG | Engine mounting (SV420D) |
