SV420G

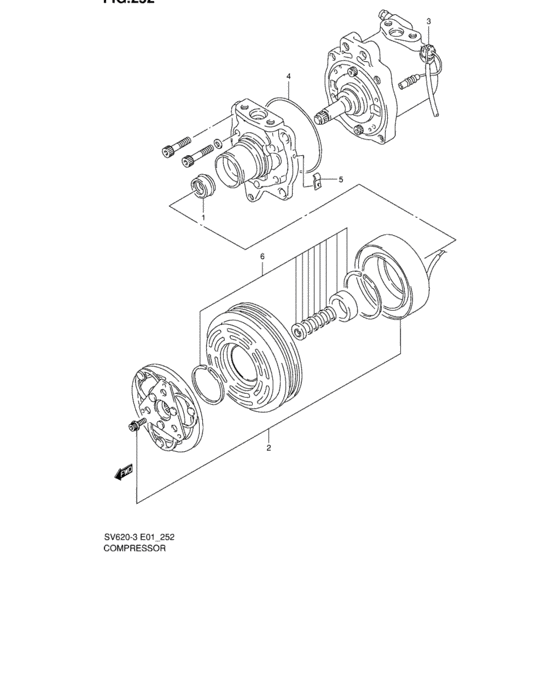

Compressor (COMPRESSOR) 22
| # | OEM | Part name |
|---|---|---|
| 0 | 95200-70C11-000 | COMPRESSORMAGNET CLUTCH |
| 0 | 95200-70C20-000 | COMPRESSOR ASSY |
| 0 | 95533-70C00-000 | HARNESS,COMPRESSOR JOINT |
| 0 | 95200-70CA2-000 | COMPRESSOR |
| 0 | 99000-99088-7CH | COMPRESSOR ASSY |
| 0 | 95200-70CH1-000 | COMPRESSOR ASSY |
| 0 | 95200-70CC0-000 | Compressor & magnet clutch |
| 0 | 99000-99088-70C | COMPRESSOR ASSY |
| 0 | 95200-70CF1-000 | AC COMPRESSOR ASSY |
| 1 | 95261-70B00-000 | Seal, lip |
| 2 | 95210-60B55-000 | Clutch,magnet |
| 2 | 95210-60B56-000 | CLUTCH,MAGNET |
| 2 | 95210-70CC0-000 | CLUTCH ASSY |
| 2 | 99000-99088-71C | CLUTCH ASSY. |
| 2 | 95210-70CC1-000 | CLUTCH ASSY |
| 2 | 95210-70C10-000 | MAGNET,CLUTCH |
| 2 | 95210-70C11-000 | CLUTCH,MAGNET |
| 3 | 95527-70CA0-000 | SWITCH,THERMAL |
| 4 | 95262-70B00-000 | O ring |
| 5 | 95291-70B00-000 | FIXING PLATE |
| 6 | 95298-72B20-000 | Clip kit |
| 6 | 95298-72B21-000 | CLIP KIT |
| OEM | Part name | Category |
|---|---|---|
| 95200-70C11-000 | COMPRESSORMAGNET CLUTCH | Compressor (COMPRESSOR) |
| 95200-70C20-000 | COMPRESSOR ASSY | Compressor (COMPRESSOR) |
| 95200-70CA2-000 | COMPRESSOR | Compressor (COMPRESSOR) |
| 95200-70CC0-000 | Compressor & magnet clutch | Compressor (COMPRESSOR) |
| 95200-70CF1-000 | AC COMPRESSOR ASSY | Compressor (COMPRESSOR) |
| 95200-70CH1-000 | COMPRESSOR ASSY | Compressor (COMPRESSOR) |
| 95210-60B55-000 | Clutch,magnet | Compressor (COMPRESSOR) |
| 95210-60B56-000 | CLUTCH,MAGNET | Compressor (COMPRESSOR) |
| 95210-70C10-000 | MAGNET,CLUTCH | Compressor (COMPRESSOR) |
| 95210-70C11-000 | CLUTCH,MAGNET | Compressor (COMPRESSOR) |
| 95210-70CC0-000 | CLUTCH ASSY | Compressor (COMPRESSOR) |
| 95210-70CC1-000 | CLUTCH ASSY | Compressor (COMPRESSOR) |
| 95261-70B00-000 | Seal, lip | Compressor (COMPRESSOR) |
| 95262-70B00-000 | O ring | Compressor (COMPRESSOR) |
| 95291-70B00-000 | FIXING PLATE | Compressor (COMPRESSOR) |
| 95298-72B20-000 | Clip kit | Compressor (COMPRESSOR) |
| 95298-72B21-000 | CLIP KIT | Compressor (COMPRESSOR) |
| 95527-70CA0-000 | SWITCH,THERMAL | Compressor (COMPRESSOR) |
| 95533-70C00-000 | HARNESS,COMPRESSOR JOINT | Compressor (COMPRESSOR) |
| 99000-99088-70C | COMPRESSOR ASSY | Compressor (COMPRESSOR) |
| 99000-99088-71C | CLUTCH ASSY. | Compressor (COMPRESSOR) |
| 99000-99088-7CH | COMPRESSOR ASSY | Compressor (COMPRESSOR) |
