SV420G

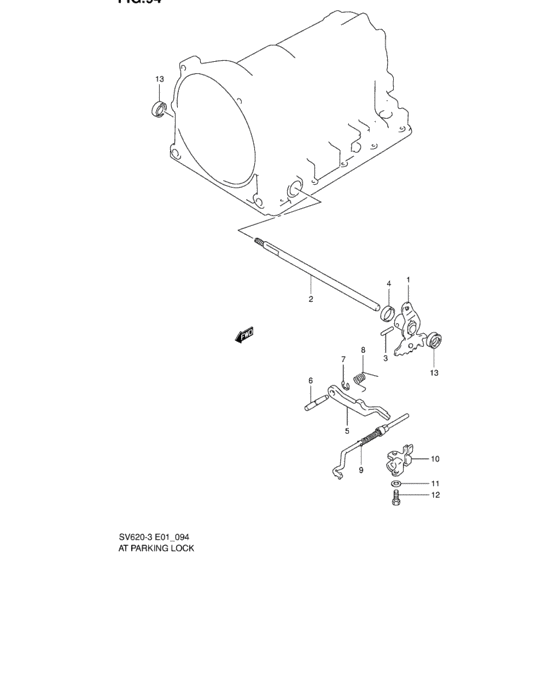

At parking lock (AT) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 25911-85FA0-000 | LEVER,MANUAL SHIFT |
| 2 | 25951-57B00-000 | SHAFT,MANUAL SHIFT |
| 3 | 29898-57B00-000 | PIN,SPRING MNL SHIFT LVR |
| 4 | 25921-57B00-000 | COVER SELECT |
| 4 | 25912-57B00-000 | SPACER,MANUAL DETENT LEVER |
| 5 | 25961-57B00-000 | PAWL,PARKING LOCK |
| 6 | 29899-57B00-000 | PIN,PARKING LOCK PAWL |
| 7 | 28948-57B00-000 | RING,SNAP PARKING LOCK PAWL |
| 8 | 29624-57B00-000 | SPRING,PARKING LOCK PAWL |
| 9 | 25931-57B00-000 | ROD,PARKING LOCK |
| 10 | 25941-57B00-000 | BRACKET,PARKING LOCK PAWL |
| 11 | 29944-57B00-000 | WASHER,PARKING LOCK PAWL BRKT |
| 12 | 29988-57B00-000 | SCREW,PARK LOCK PAWL BRKT |
| 13 | 29793-57B00-000 | SEAL,OIL LIP |
| OEM | Part name | Category |
|---|---|---|
| 25911-85FA0-000 | LEVER,MANUAL SHIFT | At parking lock (AT) |
| 25912-57B00-000 | SPACER,MANUAL DETENT LEVER | At parking lock (AT) |
| 25921-57B00-000 | COVER SELECT | At parking lock (AT) |
| 25931-57B00-000 | ROD,PARKING LOCK | At parking lock (AT) |
| 25941-57B00-000 | BRACKET,PARKING LOCK PAWL | At parking lock (AT) |
| 25951-57B00-000 | SHAFT,MANUAL SHIFT | At parking lock (AT) |
| 25961-57B00-000 | PAWL,PARKING LOCK | At parking lock (AT) |
| 28948-57B00-000 | RING,SNAP PARKING LOCK PAWL | At parking lock (AT) |
| 29624-57B00-000 | SPRING,PARKING LOCK PAWL | At parking lock (AT) |
| 29793-57B00-000 | SEAL,OIL LIP | At parking lock (AT) |
| 29898-57B00-000 | PIN,SPRING MNL SHIFT LVR | At parking lock (AT) |
| 29899-57B00-000 | PIN,PARKING LOCK PAWL | At parking lock (AT) |
| 29944-57B00-000 | WASHER,PARKING LOCK PAWL BRKT | At parking lock (AT) |
| 29988-57B00-000 | SCREW,PARK LOCK PAWL BRKT | At parking lock (AT) |
