SV420G

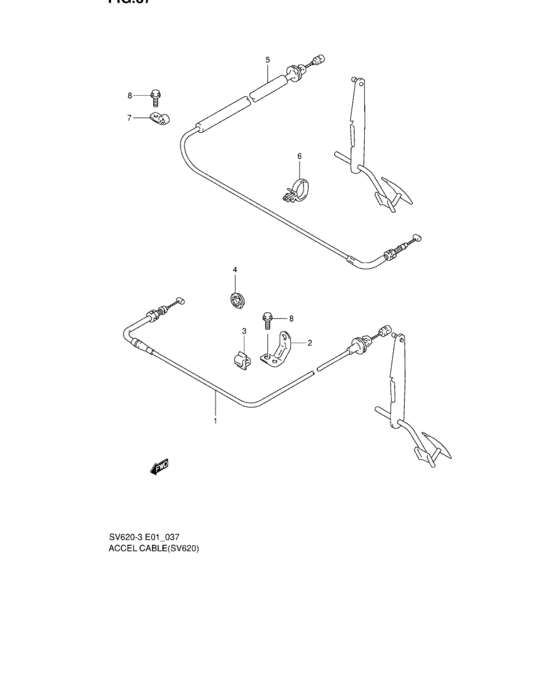

Accel cable (SV620) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 15910-77E12-000 | Cable assy, accel |
| 1 | 15910-77EV4-000 | Cable,accel |
| 2 | 15918-77E01-000 | BRACKET,ACCEL CABLE CLAMP |
| 3 | 09403-05313-000 | Clip, band - Clamp |
| 3 | 18214-75F00-000 | CLAMP |
| 4 | 09250-20015-000 | CAP(OD:28.5) - Cap, air con harness |
| 5 | 15910-77E01-000 | ケーブルアッシ,アクセル |
| 5 | 15910-77EV1-000 | CABLE,ACCEL |
| 6 | 09403-24302-000 | CLAMP |
| 7 | 09403-08404-000 | CLAMP |
| 7 | 09403-08417-000 | Clamp,rsvr Hose |
| 8 | 01550-06123-000 | Bolt |
| 8 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 8 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Accel cable (SV620) |
| 01550-0612A-000 | Bolt | Accel cable (SV620) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Accel cable (SV620) |
| 09250-20015-000 | CAP(OD:28.5) - Cap, air con harness | Accel cable (SV620) |
| 09403-05313-000 | Clip, band - Clamp | Accel cable (SV620) |
| 09403-08404-000 | CLAMP | Accel cable (SV620) |
| 09403-08417-000 | Clamp,rsvr Hose | Accel cable (SV620) |
| 09403-24302-000 | CLAMP | Accel cable (SV620) |
| 15910-77E01-000 | ケーブルアッシ,アクセル | Accel cable (SV620) |
| 15910-77E12-000 | Cable assy, accel | Accel cable (SV620) |
| 15910-77EV1-000 | CABLE,ACCEL | Accel cable (SV620) |
| 15910-77EV4-000 | Cable,accel | Accel cable (SV620) |
| 15918-77E01-000 | BRACKET,ACCEL CABLE CLAMP | Accel cable (SV620) |
| 18214-75F00-000 | CLAMP | Accel cable (SV620) |
