SV420G

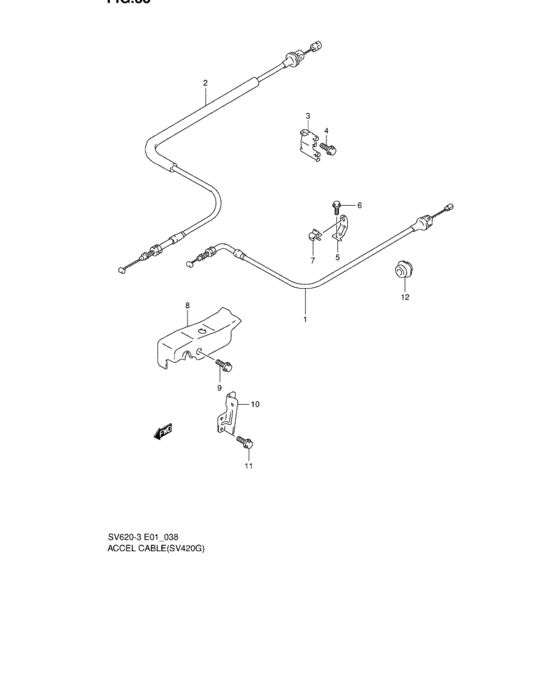

Accel cable (SV420G) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 15910-77EA1-000 | Cable assy, accel |
| 1 | 15910-77EV6-000 | CABLE,ACCEL |
| 2 | 15910-77EB0-000 | Cable assy,accel |
| 3 | 15919-77EA0-000 | GUIDE,ACCEL CABLE |
| 4 | 09103-06092-000 | BOLT(6X15) - Bolt (6x15) |
| 5 | 15918-77E01-000 | BRACKET,ACCEL CABLE CLAMP |
| 6 | 01550-05123-000 | Screw - Bolt |
| 6 | 01550-0512B-000 | Bolt |
| 7 | 09403-05313-000 | Clip, band - Clamp |
| 7 | 18214-75F00-000 | CLAMP |
| 7 | 09403-24302-000 | CLAMP |
| 8 | 13471-77EA0-000 | COVER,THROTTLE |
| 9 | 02162-06123-000 | Bolt (6x12) |
| 9 | 02162-0612B-000 | SCREW - Bolt |
| 9 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 10 | 13472-77EA1-000 | ブラケット,スロットルカバー |
| 11 | 01550-06123-000 | Bolt |
| 11 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 11 | 01550-0612A-000 | Bolt |
| 12 | 09250-20015-000 | CAP(OD:28.5) - Cap, air con harness |
| OEM | Part name | Category |
|---|---|---|
| 01550-05123-000 | Screw - Bolt | Accel cable (SV420G) |
| 01550-0512B-000 | Bolt | Accel cable (SV420G) |
| 01550-06123-000 | Bolt | Accel cable (SV420G) |
| 01550-0612A-000 | Bolt | Accel cable (SV420G) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Accel cable (SV420G) |
| 02162-06123-000 | Bolt (6x12) | Accel cable (SV420G) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Accel cable (SV420G) |
| 02162-0612B-000 | SCREW - Bolt | Accel cable (SV420G) |
| 09103-06092-000 | BOLT(6X15) - Bolt (6x15) | Accel cable (SV420G) |
| 09250-20015-000 | CAP(OD:28.5) - Cap, air con harness | Accel cable (SV420G) |
| 09403-05313-000 | Clip, band - Clamp | Accel cable (SV420G) |
| 09403-24302-000 | CLAMP | Accel cable (SV420G) |
| 13471-77EA0-000 | COVER,THROTTLE | Accel cable (SV420G) |
| 13472-77EA1-000 | ブラケット,スロットルカバー | Accel cable (SV420G) |
| 15910-77EA1-000 | Cable assy, accel | Accel cable (SV420G) |
| 15910-77EB0-000 | Cable assy,accel | Accel cable (SV420G) |
| 15910-77EV6-000 | CABLE,ACCEL | Accel cable (SV420G) |
| 15918-77E01-000 | BRACKET,ACCEL CABLE CLAMP | Accel cable (SV420G) |
| 15919-77EA0-000 | GUIDE,ACCEL CABLE | Accel cable (SV420G) |
| 18214-75F00-000 | CLAMP | Accel cable (SV420G) |
