SV420D

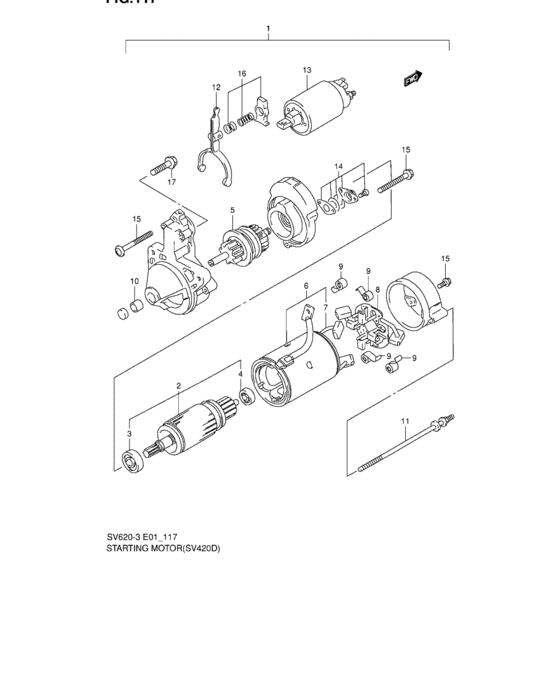

Starting motor (SV420D) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 31100-77E91-000 | MOTOR ASSY,STARTING |
| 2 | 31311-77E90-000 | ARMATURE |
| 3 | 31312-77E90-000 | BEARING,ARMATURE |
| 4 | 31313-77E90-000 | BEARING,ARMATURE |
| 5 | 31337-77E90-000 | CLUTCH ASSY |
| 6 | 31110-77E90-000 | Yoke assy |
| 7 | 31131-77E90-000 | BRUSH |
| 8 | 31173-77E90-000 | HOLDER,BRUSH |
| 9 | 31135-77E90-000 | SPRING,BRUSH |
| 10 | 31152-77E90-000 | BUSH,FRONT |
| 11 | 31261-77E90-000 | Bolt |
| 12 | 31191-77E90-000 | LEVER,PINION DRIVE |
| 13 | 31220-77E90-000 | Switch assy |
| 14 | 31339-77E90-000 | キャップセット |
| 15 | 31262-77E90-000 | SCREW SET |
| 16 | 31195-77E90-000 | SPRING SET,LEVER |
| 17 | 31109-77E90-000 | Bolt,starting motor |
| OEM | Part name | Category |
|---|---|---|
| 31100-77E91-000 | MOTOR ASSY,STARTING | Starting motor (SV420D) |
| 31109-77E90-000 | Bolt,starting motor | Starting motor (SV420D) |
| 31110-77E90-000 | Yoke assy | Starting motor (SV420D) |
| 31131-77E90-000 | BRUSH | Starting motor (SV420D) |
| 31135-77E90-000 | SPRING,BRUSH | Starting motor (SV420D) |
| 31152-77E90-000 | BUSH,FRONT | Starting motor (SV420D) |
| 31173-77E90-000 | HOLDER,BRUSH | Starting motor (SV420D) |
| 31191-77E90-000 | LEVER,PINION DRIVE | Starting motor (SV420D) |
| 31195-77E90-000 | SPRING SET,LEVER | Starting motor (SV420D) |
| 31220-77E90-000 | Switch assy | Starting motor (SV420D) |
| 31261-77E90-000 | Bolt | Starting motor (SV420D) |
| 31262-77E90-000 | SCREW SET | Starting motor (SV420D) |
| 31311-77E90-000 | ARMATURE | Starting motor (SV420D) |
| 31312-77E90-000 | BEARING,ARMATURE | Starting motor (SV420D) |
| 31313-77E90-000 | BEARING,ARMATURE | Starting motor (SV420D) |
| 31337-77E90-000 | CLUTCH ASSY | Starting motor (SV420D) |
| 31339-77E90-000 | キャップセット | Starting motor (SV420D) |
