| 01550-06123-000 |
Bolt |

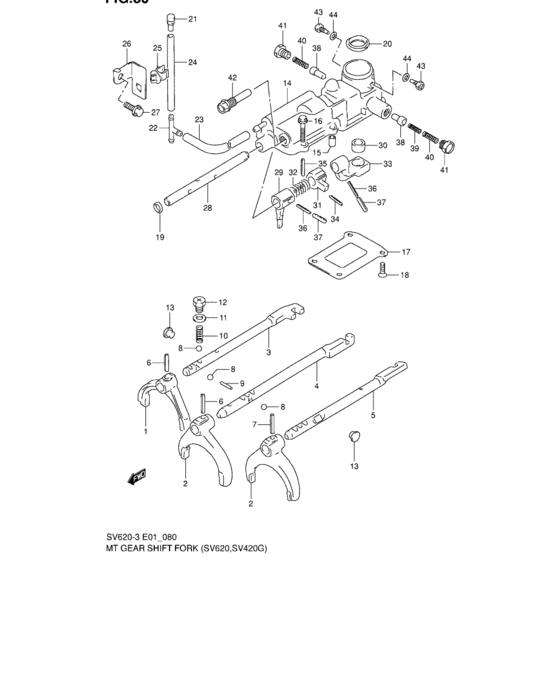

Mt gear shift fork (MT:SV620,SV420G) |
| 01550-0612A-000 |
Bolt |
Mt gear shift fork (MT:SV620,SV420G) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
Mt gear shift fork (MT:SV620,SV420G) |
| 01550-08203-000 |
Bolt |
Mt gear shift fork (MT:SV620,SV420G) |
| 01550-0820A-000 |
Bolt - Bolt, funnel bracket |
Mt gear shift fork (MT:SV620,SV420G) |
| 01550-0820B-000 |
Bolt |
Mt gear shift fork (MT:SV620,SV420G) |
| 02122-06163-000 |
Screw |
Mt gear shift fork (MT:SV620,SV420G) |
| 02122-0616A-000 |
SCREW |
Mt gear shift fork (MT:SV620,SV420G) |
| 02122-0616B-000 |
SCREW - Screw, intake pipe |
Mt gear shift fork (MT:SV620,SV420G) |
| 04211-09149-000 |
PIN - Dowel pin |
Mt gear shift fork (MT:SV620,SV420G) |
| 06111-12004-000 |
BALL |
Mt gear shift fork (MT:SV620,SV420G) |
| 09135-08006-000 |
BOLT(8X20) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09162-08008-000 |
WASHER,LOCK - Lock washer |
Mt gear shift fork (MT:SV620,SV420G) |
| 09168-12011-000 |
GASKET(12.1X19X1.5) - Gasket, water plug (12x19x1.5) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09205-03037-000 |
PIN,SPRING(3X25) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09205-05012-000 |
PIN,SPRING(5X25) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09205-05015-000 |
PIN,SPRING(5X20) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09205-05016-000 |
PIN,SPRING(5X32) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09205-06007-000 |
PIN,SPRING(6X25) - Pin (6x27) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09241-14002-000 |
PLUG(OD:14) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09247-16005-000 |
PLUG |
Mt gear shift fork (MT:SV620,SV420G) |
| 09248-12005-000 |
PLUG,M12 |
Mt gear shift fork (MT:SV620,SV420G) |
| 09250-10006-000 |
PLUG(OD:16) - Plug, oil level gauge hole |
Mt gear shift fork (MT:SV620,SV420G) |
| 09261-03017-000 |
ROLLER(3X12.5) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09355-70125-600 |
HOSE(7X12X600) - Hose, fuel (pump to separator) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09367-08004-000 |
3 WAY - 3 way (m8) |
Mt gear shift fork (MT:SV620,SV420G) |
| 09403-11311-000 |
CLAMP |
Mt gear shift fork (MT:SV620,SV420G) |
| 09440-05037-000 |
SPRING |
Mt gear shift fork (MT:SV620,SV420G) |
| 09440-08029-000 |
SPRING |
Mt gear shift fork (MT:SV620,SV420G) |
| 09448-18019-000 |
SPRING |
Mt gear shift fork (MT:SV620,SV420G) |
| 24831-57B00-000 |
BRACKET,BREATHER HOSE CLAMP |
Mt gear shift fork (MT:SV620,SV420G) |
| 25120-60AV0-000 |
CASE,GEAR SHIFT LEVER |
Mt gear shift fork (MT:SV620,SV420G) |
| 25120-85F40-000 |
ケース,ギヤシフトレバー |
Mt gear shift fork (MT:SV620,SV420G) |
| 25129-60A00-000 |
PLATE,GEAR SHF CASE |
Mt gear shift fork (MT:SV620,SV420G) |
| 25211-60A02-000 |
FORK,LOW SPEED GEAR SHF |
Mt gear shift fork (MT:SV620,SV420G) |
| 25221-60A11-000 |
FORK,HIGH SPEED GR SHF |
Mt gear shift fork (MT:SV620,SV420G) |
| 25271-60A01-000 |
YOKE,REV GEAR SHIFT LIM |
Mt gear shift fork (MT:SV620,SV420G) |
| 25281-60A10-000 |
BOLT,REV GEAR SHF LIM |
Mt gear shift fork (MT:SV620,SV420G) |
| 25341-80701-000 |
PIN,SELECT GUIDE |
Mt gear shift fork (MT:SV620,SV420G) |
| 25410-60A00-000 |
SHAFT,LOW SPEED GEAR SHIFT |
Mt gear shift fork (MT:SV620,SV420G) |
| 25415-60A00-000 |
SPRING,GR SHF LOCATING |
Mt gear shift fork (MT:SV620,SV420G) |
| 25420-60A10-000 |
SHAFT,HIGH SPEED GEAR SHIFT |
Mt gear shift fork (MT:SV620,SV420G) |
| 25450-60A00-000 |
SHAFT,REVERSE GEAR SHIFT |
Mt gear shift fork (MT:SV620,SV420G) |
| 25521-60A11-000 |
SHAFT,GEAR SHIFT |
Mt gear shift fork (MT:SV620,SV420G) |
| 25521-85F40-000 |
シャフト,ギヤシフト |
Mt gear shift fork (MT:SV620,SV420G) |
| 25531-60A01-000 |
ARM,GEAR SHIFT |
Mt gear shift fork (MT:SV620,SV420G) |
| 25531-78E11-000 |
ARM,GEAR SHIFT |
Mt gear shift fork (MT:SV620,SV420G) |
| 25541-60A03-000 |
LEVER,GEAR SHF |
Mt gear shift fork (MT:SV620,SV420G) |
| 25551-60A02-000 |
BUSH,GEAR CONT LEVER |
Mt gear shift fork (MT:SV620,SV420G) |
| 27991-65D01-000 |
PLUG,BREATHER |
Mt gear shift fork (MT:SV620,SV420G) |
| 28117-60A00-000 |
SEAT,GEAR SHF LEVER CASE |
Mt gear shift fork (MT:SV620,SV420G) |
| 44421-12FR0-000 |
HOSE |
Mt gear shift fork (MT:SV620,SV420G) |
