Search › Model › SV420D
SV420D

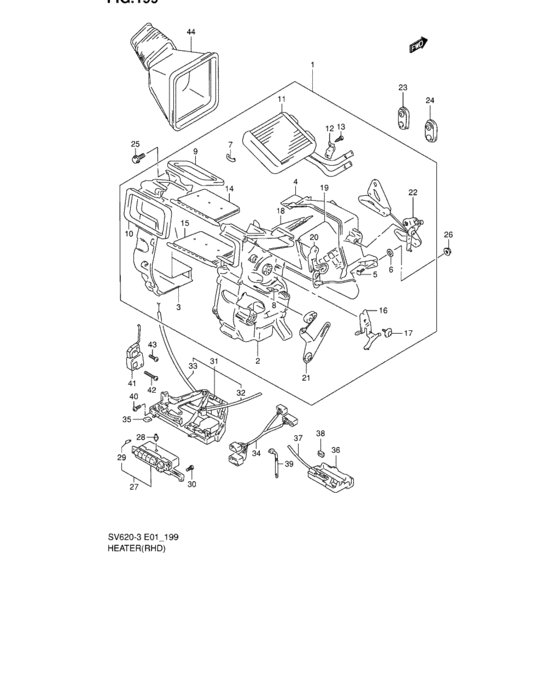

Heater (RHD) 55
| # | OEM | Part name |
|---|---|---|
| 1 | 74100-64A21-000 | HEATER ASSY |
| 1 | 74100-64A81-000 | ヒータアッシ |
| 1 | 74100-64A61-000 | Heater assy |
| 2 | 74111-64A21-000 | CASE,HEATER,R |
| 3 | 74112-64A20-000 | CASE,HEATER |
| 4 | 74113-60A00-000 | CASE,HEATER |
| 4 | 74113-64A40-000 | CASE,HTR |
| 5 | 74115-64A00-000 | Bolt |
| 6 | 74116-60A00-000 | PACKIN |
| 7 | 74133-82000-000 | CLAMP,CASE |
| 8 | 74151-70D01-000 | CLAMP,CONTROL WIRE |
| 9 | 74262-60A00-000 | パッキン |
| 9 | 74163-84101-000 | PACKING |
| 11 | 74120-64A00-000 | CORE,HTR |
| 11 | 74120-64A80-000 | Core comp,htr |
| 12 | 74199-60A00-000 | CLAMP |
| 12 | 74199-64A80-000 | クランプ,パイプ |
| 13 | 03111-05123-000 | Screw - Tapping screw |
| 13 | 03111-0512A-000 | SCREW |
| 14 | 74171-60A00-000 | DAMPER |
| 15 | 74172-64A00-000 | DAMPER |
| 16 | 74176-64A01-000 | LINK,CONTROL |
| 17 | 74183-82005-000 | SCREW,LINK |
| 18 | 74173-60A10-000 | DAMPER |
| 19 | 74174-60A00-000 | DAMPER |
| 20 | 74170-64A00-000 | LEVER ASSY,VENT |
| 21 | 74180-64A00-000 | LEVER ASSY,HEAT |
| 22 | 74190-64A00-000 | Lever assy,temp |
| 23 | 74812-82030-000 | GROMMET,HTR |
| 23 | 74812-77E00-000 | GROMMET,HTR |
| 25 | 02162-06163-000 | Screw - Bolt |
| 25 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 26 | 08316-10083-000 | Nut |
| 26 | 08316-1008B-000 | NUT |
| 27 | 74510-63G11-5PK | SWITCH,MODE CONTROL |
| 27 | 74510-63G01-5PK | SWITCH,MODE CONTROL |
| 28 | 74513-63G00-000 | BULB,0.7W |
| 29 | 74514-63G00-000 | BULB,0.6W |
| 30 | 03512-05163-000 | Screw |
| 30 | 03511-0516A-000 | SCREW |
| 31 | 74400-78E00-000 | Lever assy,htr control |
| 31 | 74400-78E20-000 | Lever assy,htr control |
| 32 | 74452-78E00-000 | CABLE,TEMP CONTROL |
| 33 | 74453-78E00-000 | CABLE,FRESH AIR CONTROL |
| 34 | 74436-78E01-000 | HARNESS,MODE CONTROL SW |
| 35 | 74461-78E00-5PK | KNOB,CONTROL LEVER |
| 36 | 74470-77E00-000 | JOINT,CABLE |
| 37 | 74514-77E00-000 | CABLE,JOINT |
| 38 | 74541-60E00-000 | CLIP,CONTROL CABLE |
| 39 | 09407-14403-000 | CLAMP(L:125) - Clamp, spark plug cap |
| 41 | 95653-78E00-000 | ACTUATOR,MODE |
| 42 | 95911-63G00-000 | SCREW,ACTUATOR |
| 43 | 03112-04253-000 | Screw |
| 43 | 03112-0425B-000 | SCREW |
| 44 | 74620-60A00-000 | DUCT,HEATER |
| OEM | Part name | Category |
|---|---|---|
| 02162-06163-000 | Screw - Bolt | Heater (RHD) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Heater (RHD) |
| 03111-05123-000 | Screw - Tapping screw | Heater (RHD) |
| 03111-0512A-000 | SCREW | Heater (RHD) |
| 03112-04253-000 | Screw | Heater (RHD) |
| 03112-0425B-000 | SCREW | Heater (RHD) |
| 03511-0516A-000 | SCREW | Heater (RHD) |
| 03512-05163-000 | Screw | Heater (RHD) |
| 08316-10083-000 | Nut | Heater (RHD) |
| 08316-1008B-000 | NUT | Heater (RHD) |
| 09407-14403-000 | CLAMP(L:125) - Clamp, spark plug cap | Heater (RHD) |
| 74100-64A21-000 | HEATER ASSY | Heater (RHD) |
| 74100-64A61-000 | Heater assy | Heater (RHD) |
| 74100-64A81-000 | ヒータアッシ | Heater (RHD) |
| 74111-64A21-000 | CASE,HEATER,R | Heater (RHD) |
| 74112-64A20-000 | CASE,HEATER | Heater (RHD) |
| 74113-60A00-000 | CASE,HEATER | Heater (RHD) |
| 74113-64A40-000 | CASE,HTR | Heater (RHD) |
| 74115-64A00-000 | Bolt | Heater (RHD) |
| 74116-60A00-000 | PACKIN | Heater (RHD) |
| 74120-64A00-000 | CORE,HTR | Heater (RHD) |
| 74120-64A80-000 | Core comp,htr | Heater (RHD) |
| 74133-82000-000 | CLAMP,CASE | Heater (RHD) |
| 74151-70D01-000 | CLAMP,CONTROL WIRE | Heater (RHD) |
| 74163-84101-000 | PACKING | Heater (RHD) |
| 74170-64A00-000 | LEVER ASSY,VENT | Heater (RHD) |
| 74171-60A00-000 | DAMPER | Heater (RHD) |
| 74172-64A00-000 | DAMPER | Heater (RHD) |
| 74173-60A10-000 | DAMPER | Heater (RHD) |
| 74174-60A00-000 | DAMPER | Heater (RHD) |
| 74176-64A01-000 | LINK,CONTROL | Heater (RHD) |
| 74180-64A00-000 | LEVER ASSY,HEAT | Heater (RHD) |
| 74183-82005-000 | SCREW,LINK | Heater (RHD) |
| 74190-64A00-000 | Lever assy,temp | Heater (RHD) |
| 74199-60A00-000 | CLAMP | Heater (RHD) |
| 74199-64A80-000 | クランプ,パイプ | Heater (RHD) |
| 74262-60A00-000 | パッキン | Heater (RHD) |
| 74400-78E00-000 | Lever assy,htr control | Heater (RHD) |
| 74400-78E20-000 | Lever assy,htr control | Heater (RHD) |
| 74436-78E01-000 | HARNESS,MODE CONTROL SW | Heater (RHD) |
| 74452-78E00-000 | CABLE,TEMP CONTROL | Heater (RHD) |
| 74453-78E00-000 | CABLE,FRESH AIR CONTROL | Heater (RHD) |
| 74461-78E00-5PK | KNOB,CONTROL LEVER | Heater (RHD) |
| 74470-77E00-000 | JOINT,CABLE | Heater (RHD) |
| 74510-63G01-5PK | SWITCH,MODE CONTROL | Heater (RHD) |
| 74510-63G11-5PK | SWITCH,MODE CONTROL | Heater (RHD) |
| 74513-63G00-000 | BULB,0.7W | Heater (RHD) |
| 74514-63G00-000 | BULB,0.6W | Heater (RHD) |
| 74514-77E00-000 | CABLE,JOINT | Heater (RHD) |
| 74541-60E00-000 | CLIP,CONTROL CABLE | Heater (RHD) |
| 74620-60A00-000 | DUCT,HEATER | Heater (RHD) |
| 74812-77E00-000 | GROMMET,HTR | Heater (RHD) |
| 74812-82030-000 | GROMMET,HTR | Heater (RHD) |
| 95653-78E00-000 | ACTUATOR,MODE | Heater (RHD) |
| 95911-63G00-000 | SCREW,ACTUATOR | Heater (RHD) |
