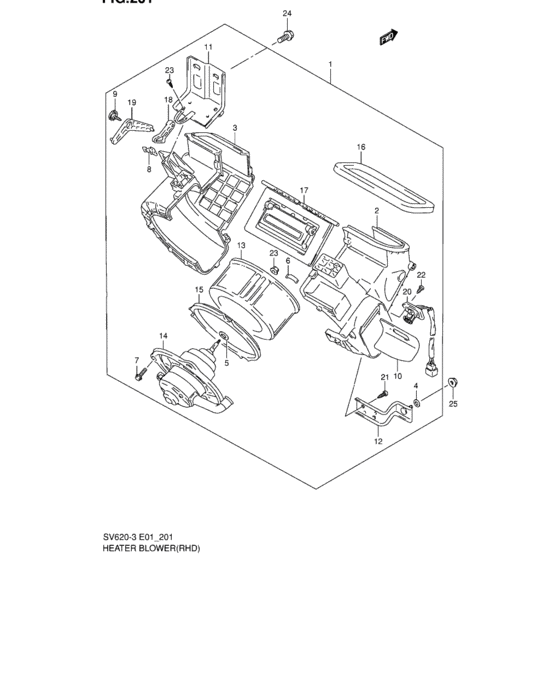

Heater blower (RHD)
31
| # | OEM | Part name |
|---|
| 1 |
74200-60A01-000 |
BLOWER ASSY |
| 2 |
74211-60A00-000 |
Case,blower |
| 3 |
74212-60A01-000 |
CASE,BLOWER |
| 4 |
74116-60A00-000 |
PACKIN |
| 5 |
17112-82000-000 |
WASHER,FAN |
| 6 |
74133-82000-000 |
CLAMP,CASE |
| 7 |
74135-82000-000 |
SCREW,MOTOR |
| 8 |
74151-70D01-000 |
CLAMP,CONTROL WIRE |
| 9 |
74183-82005-000 |
SCREW,LINK |
| 10 |
74215-60A00-000 |
PLATE,COVER |
| 11 |
74221-60A00-000 |
ブラケット,カバー |
| 12 |
74222-60A00-000 |
BRACKET,CASE |
| 13 |
74231-60A10-000 |
FAN,BLOWER |
| 14 |
74250-60A00-000 |
MOTOR ASSY |
| 15 |
74261-60A10-000 |
PACKING |
| 16 |
74262-60A00-000 |
パッキン |
| 16 |
74163-84101-000 |
PACKING |
| 17 |
74271-60A00-000 |
DAMPER ASSY |
| 18 |
74281-60A00-000 |
PLATE |
| 19 |
74282-60A00-000 |
LEVER,CONT |
| 20 |
74290-60A01-000 |
RESISTOR,BLOWER |
| 21 |
03512-05163-000 |
Screw |
| 21 |
03511-0516A-000 |
SCREW |
| 22 |
03112-04123-000 |
Screw |
| 22 |
03111-0412A-000 |
SCREW |
| 23 |
08316-10053-000 |
Nut |
| 23 |
08316-1005A-000 |
NUT |
| 24 |
02162-06163-000 |
Screw - Bolt |
| 24 |
02162-0616B-000 |
SCREW - Bolt, adjust |
| 25 |
08316-10083-000 |
Nut |
| 25 |
08316-1008B-000 |
NUT |
| OEM |
Part name |
Category |
| 02162-06163-000 |
Screw - Bolt |
Heater blower (RHD) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Heater blower (RHD) |
| 03111-0412A-000 |
SCREW |
Heater blower (RHD) |
| 03112-04123-000 |
Screw |
Heater blower (RHD) |
| 03511-0516A-000 |
SCREW |
Heater blower (RHD) |
| 03512-05163-000 |
Screw |
Heater blower (RHD) |
| 08316-10053-000 |
Nut |
Heater blower (RHD) |
| 08316-1005A-000 |
NUT |
Heater blower (RHD) |
| 08316-10083-000 |
Nut |
Heater blower (RHD) |
| 08316-1008B-000 |
NUT |
Heater blower (RHD) |
| 17112-82000-000 |
WASHER,FAN |
Heater blower (RHD) |
| 74116-60A00-000 |
PACKIN |
Heater blower (RHD) |
| 74133-82000-000 |
CLAMP,CASE |
Heater blower (RHD) |
| 74135-82000-000 |
SCREW,MOTOR |
Heater blower (RHD) |
| 74151-70D01-000 |
CLAMP,CONTROL WIRE |
Heater blower (RHD) |
| 74163-84101-000 |
PACKING |
Heater blower (RHD) |
| 74183-82005-000 |
SCREW,LINK |
Heater blower (RHD) |
| 74200-60A01-000 |
BLOWER ASSY |
Heater blower (RHD) |
| 74211-60A00-000 |
Case,blower |
Heater blower (RHD) |
| 74212-60A01-000 |
CASE,BLOWER |
Heater blower (RHD) |
| 74215-60A00-000 |
PLATE,COVER |
Heater blower (RHD) |
| 74221-60A00-000 |
ブラケット,カバー |
Heater blower (RHD) |
| 74222-60A00-000 |
BRACKET,CASE |
Heater blower (RHD) |
| 74231-60A10-000 |
FAN,BLOWER |
Heater blower (RHD) |
| 74250-60A00-000 |
MOTOR ASSY |
Heater blower (RHD) |
| 74261-60A10-000 |
PACKING |
Heater blower (RHD) |
| 74262-60A00-000 |
パッキン |
Heater blower (RHD) |
| 74271-60A00-000 |
DAMPER ASSY |
Heater blower (RHD) |
| 74281-60A00-000 |
PLATE |
Heater blower (RHD) |
| 74282-60A00-000 |
LEVER,CONT |
Heater blower (RHD) |
| 74290-60A01-000 |
RESISTOR,BLOWER |
Heater blower (RHD) |
