SV418

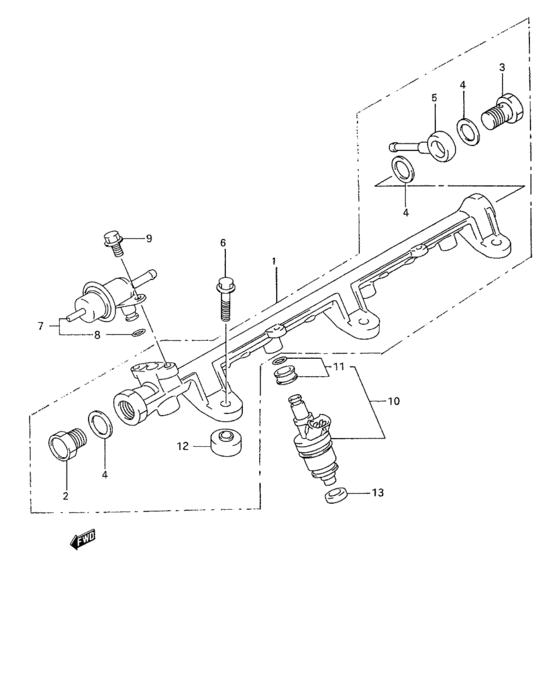

Delivery pipe (SV418) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 15700-77810-000 | Pipe set,delivery |
| 2 | 09247-14029-000 | PLUG |
| 3 | 09360-14012-000 | BOLT,14X27 - Bolt, union (14x27) |
| 4 | 15762-61B00-000 | Gasket,union(14x19x0.84) |
| 4 | 15762-61B01-000 | GASKET,UNION(14X19X0.84) |
| 5 | 15830-77EA0-000 | JOINT,FUEL MAIN |
| 6 | 01550-08353-000 | Bolt, rear |
| 6 | 01550-0835B-000 | Bolt |
| 6 | 01550-0835A-000 | Bolt |
| 7 | 15160-77E00-000 | REGULATOR FUEL PRESSURE |
| 7 | 15610-67D00-000 | REGULATOR,FUEL PRESSURE |
| 8 | 15710-51E10-000 | O-RING |
| 9 | 09103-06168-000 | BOLT(6X10) |
| 10 | 15710-77EA0-000 | INJECTOR ASSY,FUEL |
| 11 | 15716-73GT0-000 | GROMMET SET |
| 12 | 15735-58B00-000 | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe |
| 13 | 09320-08062-000 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 01550-08353-000 | Bolt, rear | Delivery pipe (SV418) |
| 01550-0835A-000 | Bolt | Delivery pipe (SV418) |
| 01550-0835B-000 | Bolt | Delivery pipe (SV418) |
| 09103-06168-000 | BOLT(6X10) | Delivery pipe (SV418) |
| 09247-14029-000 | PLUG | Delivery pipe (SV418) |
| 09320-08062-000 | CUSHION | Delivery pipe (SV418) |
| 09360-14012-000 | BOLT,14X27 - Bolt, union (14x27) | Delivery pipe (SV418) |
| 15160-77E00-000 | REGULATOR FUEL PRESSURE | Delivery pipe (SV418) |
| 15610-67D00-000 | REGULATOR,FUEL PRESSURE | Delivery pipe (SV418) |
| 15700-77810-000 | Pipe set,delivery | Delivery pipe (SV418) |
| 15710-51E10-000 | O-RING | Delivery pipe (SV418) |
| 15710-77EA0-000 | INJECTOR ASSY,FUEL | Delivery pipe (SV418) |
| 15716-73GT0-000 | GROMMET SET | Delivery pipe (SV418) |
| 15735-58B00-000 | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe | Delivery pipe (SV418) |
| 15762-61B00-000 | Gasket,union(14x19x0.84) | Delivery pipe (SV418) |
| 15762-61B01-000 | GASKET,UNION(14X19X0.84) | Delivery pipe (SV418) |
| 15830-77EA0-000 | JOINT,FUEL MAIN | Delivery pipe (SV418) |
