| 09119-05018-000 |
BOLT(8X35) |

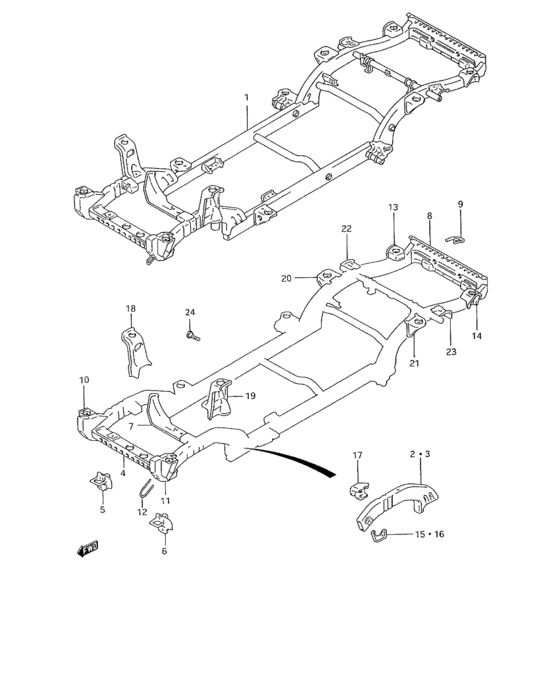

B chassis frame (V:SV418) |
| 57000-77E20-000 |
Frame assy |
B chassis frame (V:SV418) |
| 57000-77E30-000 |
Frame assy |
B chassis frame (V:SV418) |
| 57110-77E01-000 |
Member, side frame front rh |
B chassis frame (V:SV418) |
| 57160-77E00-000 |
MEMBER,SIDE FRAME FR,L |
B chassis frame (V:SV418) |
| 57210-77E00-000 |
Crossmember,1st |
B chassis frame (V:SV418) |
| 57220-77E01-000 |
Crossmember comp,2nd |
B chassis frame (V:SV418) |
| 57260-77E00-000 |
CROSSMEMBER,TAIL |
B chassis frame (V:SV418) |
| 57264-56B00-000 |
HOOK,RR TOWING |
B chassis frame (V:SV418) |
| 57310-77E00-000 |
Bracket,1st mounting,r |
B chassis frame (V:SV418) |
| 57320-77E00-000 |
Bracket,1st mounting,l |
B chassis frame (V:SV418) |
| 57324-77E00-000 |
HOOK,FR TOWING |
B chassis frame (V:SV418) |
| 57371-77E00-000 |
BRACKET,4TH MOUNTING,R |
B chassis frame (V:SV418) |
| 57381-77E00-000 |
BRACKET,4TH MOUNTING,L |
B chassis frame (V:SV418) |
| 57411-56B00-000 |
GUSSET,1ST CROSSMEMBER SIDE,R |
B chassis frame (V:SV418) |
| 57412-56B00-000 |
GUSSET,1ST CROSSMEMBER SIDE,L |
B chassis frame (V:SV418) |
| 57620-77E00-000 |
BRACKET,FR DIFF MTG |
B chassis frame (V:SV418) |
| 57710-77E00-000 |
HANGER,FR SPNSN ARM,R |
B chassis frame (V:SV418) |
| 57720-77E00-000 |
Hanger comp,fr spnsn arm,l |
B chassis frame (V:SV418) |
| 57730-77E00-000 |
BRACKET,FR STRUT,R |
B chassis frame (V:SV418) |
| 57740-77E00-000 |
ブラケット,フロントストラット,レフト |
B chassis frame (V:SV418) |
| 57810-77E00-000 |
BRACKET,RR COIL SPRING,R |
B chassis frame (V:SV418) |
| 57820-77E00-000 |
BRACKET,RR COIL SPRING,L |
B chassis frame (V:SV418) |
| 57831-56B00-000 |
BRACKET,RR SHOCK ABSORBER,R |
B chassis frame (V:SV418) |
| 57841-56B00-000 |
BRACKET,RR SHOCK ABSORBER,L |
B chassis frame (V:SV418) |
