SV418

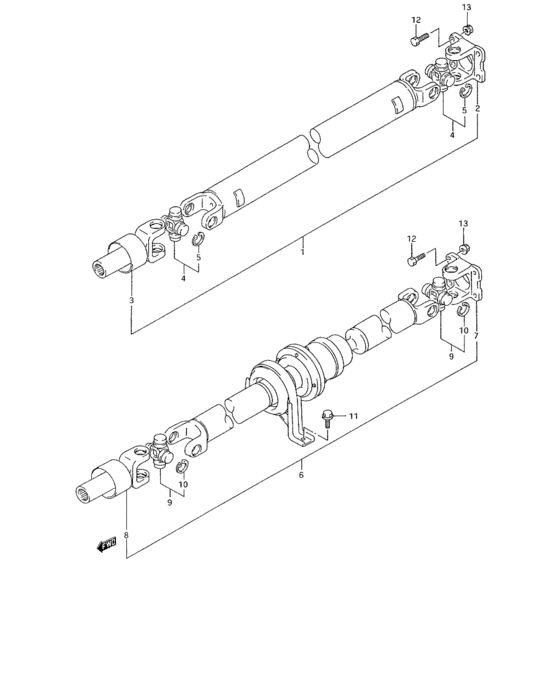

A propeller shaft (2WD) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 27100-61A52-000 | SHAFT ASSY,PROPELLER REAR |
| 2 | 27131-56B00-000 | YOKE,CROSS JOINT FLANGE |
| 3 | 27140-60A51-000 | YOKE,SLIDING |
| 4 | 27200-83812-000 | JOINT SET,UNIVERSAL |
| 4 | 27200-83813-000 | Joint Set,universal |
| 5 | 51118-36213-000 | RING,SNAP |
| 6 | 27102-57B20-000 | SHAFT ASSY,PROPELLER REAR |
| 6 | 27100-58B60-000 | SHAFT ASSY,PROPELLER |
| 8 | 27140-60A30-000 | YOKE,SLIDING |
| 11 | 01580-10203-000 | ボルト |
| 11 | 01580-1020A-000 | Bolt |
| 12 | 01500-10303-000 | Bolt |
| 12 | 01500-1030A-000 | Bolt |
| 13 | 09159-10091-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 01500-10303-000 | Bolt | A propeller shaft (2WD) |
| 01500-1030A-000 | Bolt | A propeller shaft (2WD) |
| 01580-10203-000 | ボルト | A propeller shaft (2WD) |
| 01580-1020A-000 | Bolt | A propeller shaft (2WD) |
| 09159-10091-000 | NUT | A propeller shaft (2WD) |
| 27100-58B60-000 | SHAFT ASSY,PROPELLER | A propeller shaft (2WD) |
| 27100-61A52-000 | SHAFT ASSY,PROPELLER REAR | A propeller shaft (2WD) |
| 27102-57B20-000 | SHAFT ASSY,PROPELLER REAR | A propeller shaft (2WD) |
| 27131-56B00-000 | YOKE,CROSS JOINT FLANGE | A propeller shaft (2WD) |
| 27140-60A30-000 | YOKE,SLIDING | A propeller shaft (2WD) |
| 27140-60A51-000 | YOKE,SLIDING | A propeller shaft (2WD) |
| 27200-83812-000 | JOINT SET,UNIVERSAL | A propeller shaft (2WD) |
| 27200-83813-000 | Joint Set,universal | A propeller shaft (2WD) |
| 51118-36213-000 | RING,SNAP | A propeller shaft (2WD) |
