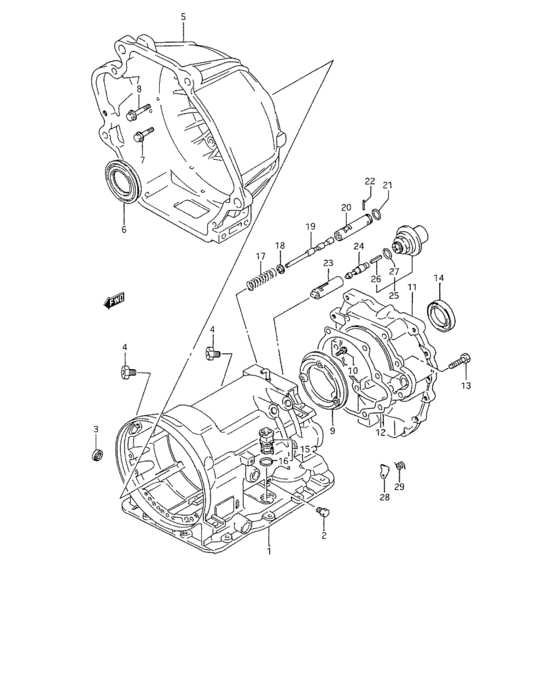

| 22820-61A01-000 |
Housing assy, torque converter |
3at tm case (AT:C:4WD) |
| 22823-61A01-000 |
RING,T/C HOUSING SEAL |
3at tm case (AT:C:4WD) |
| 22855-61A00-000 |
BOLT,OIL PUMP |
3at tm case (AT:C:4WD) |
| 22865-61A00-000 |
BOLT,T/C HOUSING |
3at tm case (AT:C:4WD) |
| 24716-61A00-000 |
RING,MANUAL SELECT SHAFT |
3at tm case (AT:C:4WD) |
| 24717-61A00-000 |
PLUG,T/M CASE |
3at tm case (AT:C:4WD) |
| 24721-61A00-000 |
CONNECTOROIL LINK |
3at tm case (AT:C:4WD) |
| 24728-61A00-000 |
PLATETM CASE BAFFLE |
3at tm case (AT:C:4WD) |
| 24729-61A00-000 |
SCREW |
3at tm case (AT:C:4WD) |
| 24730-61A00-000 |
Connector assy,electrical |
3at tm case (AT:C:4WD) |
| 24732-61A00-000 |
RING,CONNECTOR SEAL |
3at tm case (AT:C:4WD) |
| 24770-61A00-000 |
CASE TF ADAPTOR |
3at tm case (AT:C:4WD) |
| 24772-61A00-000 |
SEAL ADAPTOR CASE OIL |
3at tm case (AT:C:4WD) |
| 24781-61A00-000 |
GASKET,T/F ADAPTER CASE |
3at tm case (AT:C:4WD) |
| 24782-61A00-000 |
Bolt,t/f adapter |
3at tm case (AT:C:4WD) |
| 24783-61A00-000 |
PAWL,PARKING LOCK |
3at tm case (AT:C:4WD) |
| 24784-61A00-000 |
SPRING,PARKING LOCK |
3at tm case (AT:C:4WD) |
| 24790-61X50-000 |
Case assy, transmission |
3at tm case (AT:C:4WD) |
| 26929-61A00-000 |
VALVE,KICK DOWN |
3at tm case (AT:C:4WD) |
| 26931-61A00-000 |
SPRING KICK DOWN VALVE |
3at tm case (AT:C:4WD) |
| 26932-61A00-000 |
SEATKICK DOWN VALVE SPRING |
3at tm case (AT:C:4WD) |
| 26933-61A00-000 |
SLEEVE,KICK DOWN VALVE |
3at tm case (AT:C:4WD) |
| 26934-61A00-000 |
RING,KICK DOWN SLEEVE SEAL |
3at tm case (AT:C:4WD) |
| 26935-61A00-000 |
SPRING PIN,KICK DOWN VALVE |
3at tm case (AT:C:4WD) |
| 26936-61A30-000 |
VALVE,MODULATOR |
3at tm case (AT:C:4WD) |
| 26937-61A30-000 |
SLEEVE,MODULATOR |
3at tm case (AT:C:4WD) |
| 26938-61A00-000 |
PLUNGER MODULATOR |
3at tm case (AT:C:4WD) |
| 26941-61A00-000 |
O ring,modulator |
3at tm case (AT:C:4WD) |
| 26980-61A30-000 |
KIT,MODULATOR ASSY |
3at tm case (AT:C:4WD) |
