Search › Model › SV41
SV41

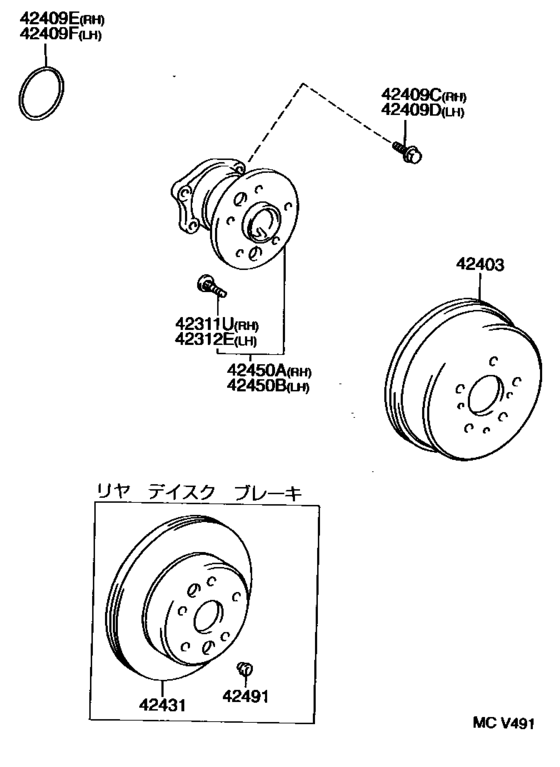

Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) 8
| # | OEM | Part name |
|---|---|---|
| 42311 | 90942-02047 | Bolt, Hub |
| 42409 | 90105-10124 | Bolt (For Axle Bearing) |
| 42409 | 90301-63003 | Ring, O (For Rear Axle Bearing Rh) |
| 42409 | 90301-63006 | Ring, O (For Rear Axle Bearing Rh) |
| 42431 | 42431-32090 | Disc, Rear |
| 42450 | 42450-32020 | Hub & Bearing Assy, Rear Axle |
| 42450 | 42450-33020 | Hub & Bearing Assy, Rear Axle, Rh |
| 42491 | 47491-22020 | Plug, Shoe Adjusting Hole (For Parking Brake) |
| OEM | Part name | Category |
|---|---|---|
| 42431-32090 | Disc, Rear | Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) |
| 42450-32020 | Hub & Bearing Assy, Rear Axle | Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) |
| 42450-33020 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) |
| 47491-22020 | Plug, Shoe Adjusting Hole (For Parking Brake) | Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) |
| 90105-10124 | Bolt (For Axle Bearing) | Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) |
| 90301-63003 | Ring, O (For Rear Axle Bearing Rh) | Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) |
| 90301-63006 | Ring, O (For Rear Axle Bearing Rh) | Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) |
| 90942-02047 | Bolt, Hub | Rear Axle Shaft & Hub ([05.1996 - ] (9605- )CV40,SV40,41,42) |
