SV41

Toyota CAMRY-VISTA-AURION · 1994 · 4,844 parts · 209 categories
SV41 ×

← Back to categories

4,844 items

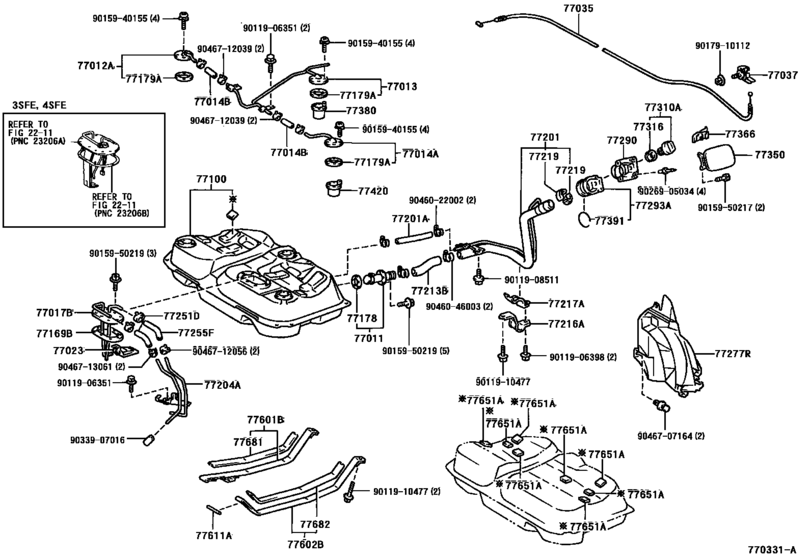

Fuel Tank & Tube ([06.1994 - ] (9406- )CV40,SV40,41,42) 59
#OEMPart name
77011 77011-32040 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-32070 Tube Sub-Assy, Fuel Tank Breather, No.1
77013 77013-32050 Tube Sub-Assy, Fuel Tank Breather, No.2
77014 77014-32060 Tube Sub-Assy, Fuel Tank Breather, No.3
77014 95333-06010 Hose, Fuel
77035 77035-32180 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-14020 Lock Sub-Assy, Fuel Filler Opening Lid
77037 77037-32030 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-39306 Tank Assy, Fuel
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-32150 Pipe Sub-Assy, Fuel Tank Inlet
77201 90445-22024 Hose, Fuel, No.1(For Fuel Tank)
77213 77213-32050 Hose, Fuel Tank To Filler Pipe
77216 77216-33010 Support, Fuel Tank Filler Pipe, No.1
77217 77217-33010 Support, Fuel Tank Filler Pipe, No.2
77219 77219-32030 Cover, Fuel Tank Filler Pipe
77277 77277-32060 Protector, Fuel Tank Filler Pipe
77290 77290-32050 Shield Assy, Fuel Tank Filler Pipe
77293 77293-32040 Shield, Fuel Tank Filler Pipe, No.3
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-32100 Lid Assy, Fuel Filler Opening
77366 77360-12080 Spring, Fuel Filler Opening Lid Hinge
77366 77360-20050 Spring, Fuel Filler Opening Lid Hinge
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-16011 Ring, Fuel Inlet Box
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77601 77601-32090 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-32080 Band Sub-Assy, Fuel Tank, No.1 Lh
77611 90250-08019 Pin (For Fuel Tank Band)
77651 77651-32050 Cushion, Fuel Tank, No.1
77681 77681-32060 Seat, Fuel Tank Band, Rh
9011906351 90119-06351 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011908511 90119-08511 BOLT
9011910477 90119-10477 New Genuine Part
9011910477 91655-B1040 BOLT WWASHER
9015940155 90159-40155 SCREW WWASHER
9015950217 90159-50217 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9017910112 90179-10112 New Genuine Part
9017910112 90179-10186 New Genuine Part
9026905034 90269-05034 RIVET
9033907016 90339-07016 Cap(For Intake Air Connector)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046707164 90467-07164 Clip(For Front Fender Apron Seal)
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
