Search › Model › SV30

SV30

Toyota CAMRY-VISTA-AURION · 1990 · 7,069 parts · 228 categories

← Back to categories

7,069 items

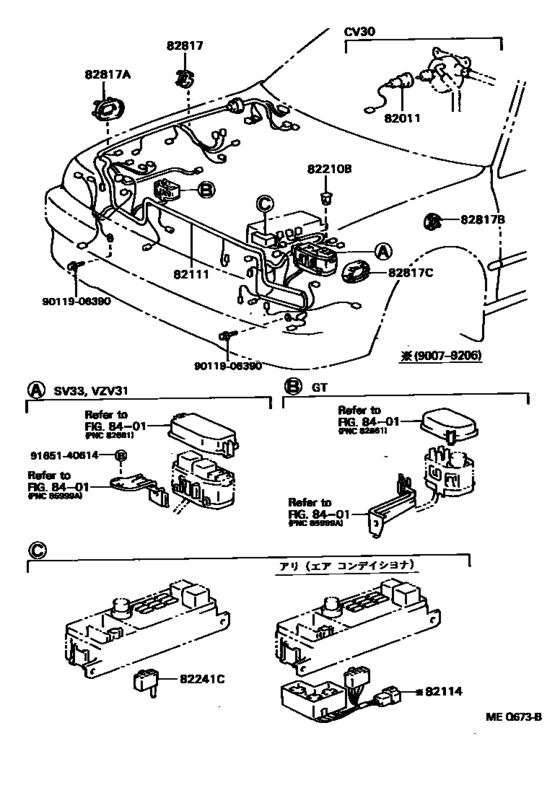

Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406)) 18

#	OEM	Part name
82111	82111-32610	Wire, Engine Room Main
82111	82111-32611	Wire, Engine Room Main
82111	82111-32620	Wire, Engine Room Main
82111	82111-32621	Wire, Engine Room Main
82111	82111-32631	Wire, Engine Room Main
82111	82111-32770	Wire, Engine Room Main
82111	82111-32781	Wire, Engine Room Main
82111	82111-32780	Wire, Engine Room Main
82111	82111-32790	Wire, Engine Room Main
82111	82111-32630	Wire, Engine Room Main
82114	82114-32140	Wire, Engine Room, No.4
82241	82241-32040	Wire, Relay
82817	82817-2B730	Protector, Wiring Harness, No.1
82817	82817-32840	Protector, Wiring Harness, No.1
82817	82817-32730	Protector, Wiring Harness, No.1
82817	82817-32760	Protector, Wiring Harness, No.3
9011906390	90119-06390	BOLT WWASHER
9165140614	91651-40614	Bolt

OEM	Part name	Category
82111-32610	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32611	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32620	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32621	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32630	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32631	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32770	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32780	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32781	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82111-32790	Wire, Engine Room Main	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82114-32140	Wire, Engine Room, No.4	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82241-32040	Wire, Relay	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82817-2B730	Protector, Wiring Harness, No.1	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82817-32730	Protector, Wiring Harness, No.1	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82817-32760	Protector, Wiring Harness, No.3	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
82817-32840	Protector, Wiring Harness, No.1	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
90119-06390	BOLT WWASHER	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))
91651-40614	Bolt	Wiring & Clamp ([07.1990 - 06.1994] ENGINE ROOM WIRE (9007-9406))

Source: Public OEM parts-catalog data
Variants: 2 / 22
Category: 228
Collected: 2026-08-02
