Search › Model › SV30
SV30

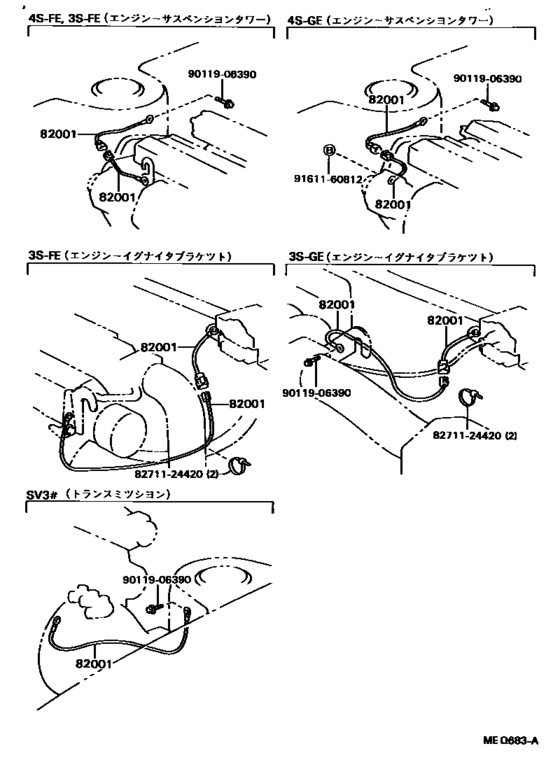

Wiring & Clamp ([07.1990 - 06.1994] CABLE BOND (9007-9406)SV3#) 7
| # | OEM | Part name |
|---|---|---|
| 82001 | 90980-07264 | Cable, Bond, No.1 |
| 82001 | 90980-07280 | Cable, Bond, No.1 |
| 82001 | 90980-07287 | Cable, Bond, No.1 |
| 8271124420 | 82711-24420 | Wire, Fuse To Fuse(for Combustion Heater) |
| 9011906390 | 90119-06390 | BOLT WWASHER |
| 9161160812 | 91611-60812 | Bolt(For Drive Plate & Torque Converter Setting) |
| 9161160812 | 91611-B0812 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 82711-24420 | Wire, Fuse To Fuse(for Combustion Heater) | Wiring & Clamp ([07.1990 - 06.1994] CABLE BOND (9007-9406)SV3#) |
| 90119-06390 | BOLT WWASHER | Wiring & Clamp ([07.1990 - 06.1994] CABLE BOND (9007-9406)SV3#) |
| 90980-07264 | Cable, Bond, No.1 | Wiring & Clamp ([07.1990 - 06.1994] CABLE BOND (9007-9406)SV3#) |
| 90980-07280 | Cable, Bond, No.1 | Wiring & Clamp ([07.1990 - 06.1994] CABLE BOND (9007-9406)SV3#) |
| 90980-07287 | Cable, Bond, No.1 | Wiring & Clamp ([07.1990 - 06.1994] CABLE BOND (9007-9406)SV3#) |
| 91611-60812 | Bolt(For Drive Plate & Torque Converter Setting) | Wiring & Clamp ([07.1990 - 06.1994] CABLE BOND (9007-9406)SV3#) |
| 91611-B0812 | Bolt | Wiring & Clamp ([07.1990 - 06.1994] CABLE BOND (9007-9406)SV3#) |
