Search › Model › SV30

SV30

Toyota CAMRY-VISTA-AURION · 1990 · 7,069 parts · 228 categories

7,069 items

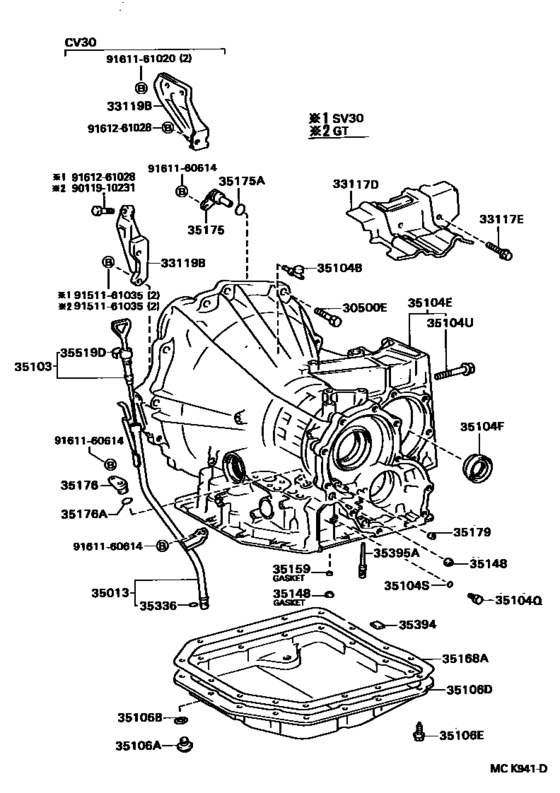

Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33) 49

#	OEM	Part name
30500	90105-08040	Bolt(For Plate Bolt Lock)
30500	91641-H0820	Bolt
30500	90105-10077	Bolt(For Transaxle Case Protector)
30500	91619-61245	Bolt(For Transaxle & Engine Setting)
30500	91651-41022	Bolt(For Transaxle & Engine Setting)
33117	33117-32060	Protector, Automatic Transmission Case
33119	33119-32020	Plate, Stiffener, Lh(Mtm)
35013	35013-32140	Tube Sub-Assy, Transmission Oil Filler
35103	35103-32110	Gage Sub-Assy, Transmission Oil Level
35104	90930-03089	Plug, Breather, No.1 (Atm)
35104	35104-20073	Case Sub-Assy, Automatic Transaxle
35104	35104-32102	Case Sub-Assy, Automatic Transaxle
35104	90105-10203	New Genuine Part
35104	91642-H0822	New Genuine Part
35104	35104-32101	Case Sub-Assy, Automatic Transaxle
35104	90311-35019	Seal, Oil, No.2(For Transaxle Case)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90105-12052	Bolt (For Transaxle Case)
35104	90105-12263	Bolt (For Rear Axle Carrier)
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-10022	Pan Sub-Assy, Automatic Transaxle Oil
35106	35106-32012	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35148	35148-16010	Gasket (For Automatic Transfer Case)
35159	35159-32011	Gasket, Brake Drum
35168	35168-32010	Gasket, Automatic Transaxle Oil Pan
35175	35175-32010	Cap, Transaxle Case, No.2
35175	90301-21002	Ring, O (For Transaxle Case Cap)
35176	35176-32010	Cap, Wire Harness
35176	96721-24013	Ring, O (For Wire Harness Cap)
35179	35179-32010	Gasket, Overdrive Brake
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-32020	Strainer, Governor Oil
35395	35395-32030	Strainer, Governor Oil
35519	35519-32030	Label, Automatic Transmission Information
35519	35519-32040	Label, Automatic Transmission Information
9011910231	90119-10231	Bolt(For Transaxle Case & Engine Setting)
9011910231	90119-10672	Bolt(For Transaxle Case & Engine Setting)
9151161035	91511-61035	Bolt(For Transaxle Case & Engine Setting)
9151161035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9161261028	91612-61028	Bolt(For Transaxle Case & Engine Setting)

OEM	Part name	Category
33117-32060	Protector, Automatic Transmission Case	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
33119-32020	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35013-32140	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35103-32110	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35104-20073	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35104-32101	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35104-32102	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35106-10022	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35106-32012	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35159-32011	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35168-32010	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35175-32010	Cap, Transaxle Case, No.2	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35176-32010	Cap, Wire Harness	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35179-32010	Gasket, Overdrive Brake	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35395-32020	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35395-32030	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35519-32030	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35519-32040	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90105-08040	Bolt(For Plate Bolt Lock)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90105-10077	Bolt(For Transaxle Case Protector)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90105-10203	New Genuine Part	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90105-12052	Bolt (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90105-12263	Bolt (For Rear Axle Carrier)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90119-10231	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90119-10672	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90301-21002	Ring, O (For Transaxle Case Cap)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90311-35019	Seal, Oil, No.2(For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90930-03089	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91511-61035	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91611-61020	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91642-H0822	New Genuine Part	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91651-41022	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
96721-24013	Ring, O (For Wire Harness Cap)	Transmission Case & Oil Pan (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
