SV30

Toyota CAMRY-VISTA-AURION · 1990 · 7,069 parts · 228 categories

← Back to categories

7,069 items

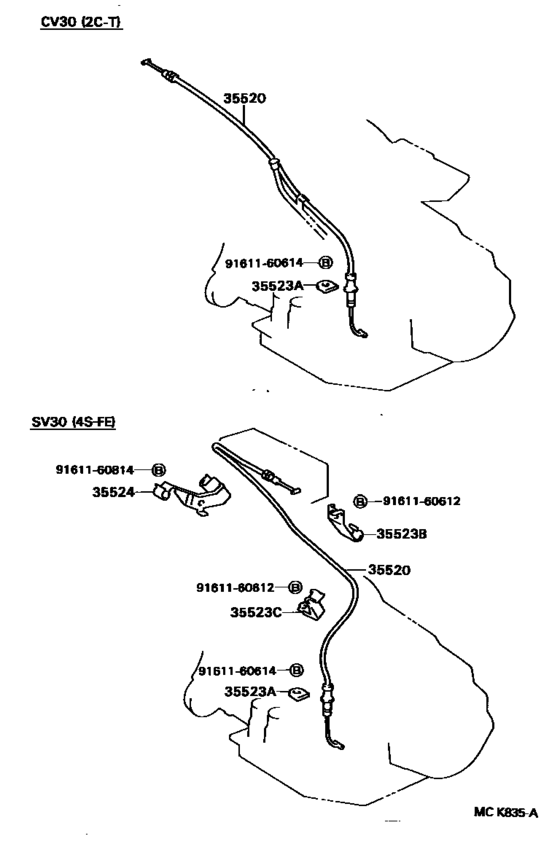

Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30) 13

#	OEM	Part name
35520	35520-32030	Cable Assy, Throttle
35520	35520-32130	Cable Assy, Throttle
35523	35523-32010	Clamp, Throttle Cable
35523	35523-20300	Clamp, Throttle Cable, No.3
35523	35523-32150	Clamp, Throttle Cable, No.3
35523	35523-32160	Clamp, Throttle Cable, No.4
35524	35523-32170	Clamp, Throttle Cable, No.2
35524	35523-32180	Clamp, Throttle Cable, No.2
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160814	91611-60814	Bolt

OEM	Part name	Category
35520-32030	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
35520-32130	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
35523-20300	Clamp, Throttle Cable, No.3	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
35523-32010	Clamp, Throttle Cable	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
35523-32150	Clamp, Throttle Cable, No.3	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
35523-32160	Clamp, Throttle Cable, No.4	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
35523-32170	Clamp, Throttle Cable, No.2	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
35523-32180	Clamp, Throttle Cable, No.2	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
91611-60814	Bolt	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
91611-G0612	Bolt	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140L (9007- )CV30,SV30)
