Search › Model › SV30

SV30

Toyota CAMRY-VISTA-AURION · 1990 · 7,069 parts · 228 categories

← Back to categories

7,069 items

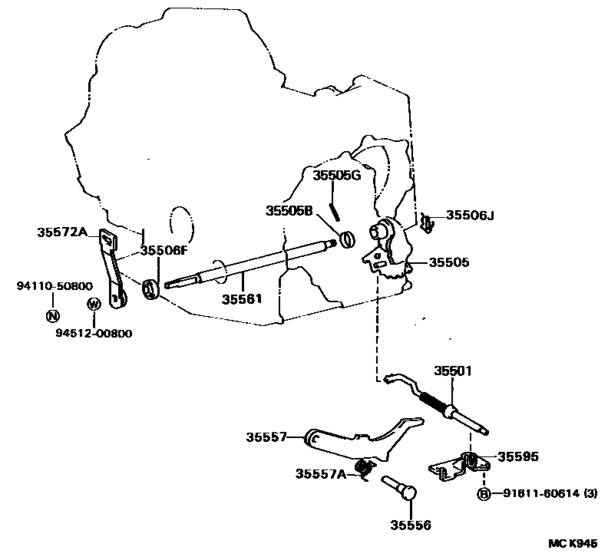

Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33) 15

#	OEM	Part name
35501	35501-32030	Rod Sub-Assy, Parking Lock
35505	35505-32040	Lever Sub-Assy, Manual Valve
35505	90560-20006	Spacer (For Manual Valve Lever)
35505	90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506	90311-12002	Oil Seal, Type T
35506	90524-09001	Spring, Retainer (For Manual Valve Lever Shaft)
35556	35556-32010	Shaft, Parking Lock Pawl
35557	35557-32020	Pawl, Parking Lock
35557	90508-26047	Spring, Torsion (For Parking Lock Pawl)
35561	35561-32010	Shaft Sub-Assy, Manual Valve Lever
35572	35572-32030	Lever, Transmission Control Shaft
35595	35595-32010	Bracket, Parking Lock Pawl
9181160614	91811-60614	New Genuine Part
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
35501-32030	Rod Sub-Assy, Parking Lock	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35505-32040	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35556-32010	Shaft, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35557-32020	Pawl, Parking Lock	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35561-32010	Shaft Sub-Assy, Manual Valve Lever	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35572-32030	Lever, Transmission Control Shaft	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
35595-32010	Bracket, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90311-12002	Oil Seal, Type T	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90508-26047	Spring, Torsion (For Parking Lock Pawl)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90524-09001	Spring, Retainer (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
90560-20006	Spacer (For Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
91811-60614	New Genuine Part	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
94110-50800	Nut(For Repair Actuator Set)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Throttle Link & Valve Lever (Atm) ([07.1990 - ] A140E,A140L (9007- )CV30,SV30,32,33)

Source: Public OEM parts-catalog data
Variants: 2 / 22
Category: 228
Collected: 2026-08-02
