Search › Model › SV12

SV12

Toyota CAMRY-VISTA-AURION · 1984 · 4,690 parts · 170 categories

4,690 items

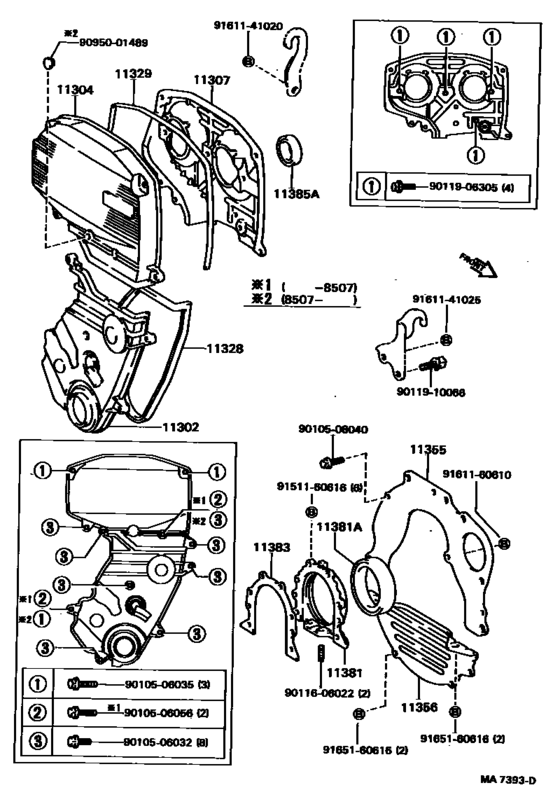

Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU) 44

#	OEM	Part name
11302	11321-88360	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-74030	Cover Sub-Assy, Timing Chain Or Belt
11304	11322-88360	Cover, Timing Chain Or Belt, No.2
11304	91511-G0620	BOLT, FLANGE
11304	11322-88361	Cover, Timing Chain Or Belt, No.2
11304	90950-01489	Plug, Semi Circular(For Chain Cover No.2)
11307	11323-88360	Cover, Sub-Assy, Timing Belt, No.3
11307	11323-88361	Cover, Sub-Assy, Timing Belt, No.3
11328	11328-88360	Gasket, Timing Gear Or Chain Cover
11328	11328-88361	Gasket, Timing Gear Or Chain Cover
11329	11329-88360	Gasket, Timing Gear Rear Cover
11355	11355-63020	Plate, Rear End
11355	11355-63021	Plate, Rear End
11356	11356-63020	Plate, Rear End, No.2
11356	11356-74030	Plate, Rear End, No.2
11356	11356-63030	Plate, Rear End, No.2
11381	11381-63010	Retainer, Engine Rear Oil Seal
11381	11381-63011	Retainer, Engine Rear Oil Seal
11381	11381-63012	Retainer, Engine Rear Oil Seal
11381	90311-85003	Seal, Engine Rear Oil
11381	90311-85009	Seal, Engine Rear Oil
11383	11383-63010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-74021	Gasket, Engine Rear Oil Seal Retainer
11385	90311-35008	Seal, Oil(For Camshaft Setting)
11385	90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)
9010506032	90105-06032	New Genuine Part
9010506035	90105-06035	New Genuine Part
9010506056	90105-06056	New Genuine Part
9010506056	91511-60635	Bolt
9010508040	90105-08040	Bolt(For Plate Bolt Lock)
9010508040	91641-H0820	Bolt
9011606022	90116-06022	Bolt, Stud(For Valve Push Rod Cover)
9011906305	90119-06305	New Genuine Part
9011910066	90119-10066	New Genuine Part
9011910066	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9161141020	91611-41020	Bolt(for Transaxle & Engine Setting)
9161141020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9161141025	91611-41025	Bolt(for Transaxle & Engine Setting)
9161141025	91612-61025	Bolt (For Control Shaft Cover)
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9165160616	91651-60616	BOLT

OEM	Part name	Category
11321-74030	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11321-88360	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11322-88360	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11322-88361	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11323-88360	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11323-88361	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11328-88360	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11328-88361	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11329-88360	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11355-63020	Plate, Rear End	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11355-63021	Plate, Rear End	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11356-63020	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11356-63030	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11356-74030	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11381-63010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11381-63011	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11381-63012	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11383-63010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
11383-74021	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90105-06032	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90105-06035	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90105-06056	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90105-08040	Bolt(For Plate Bolt Lock)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90116-06022	Bolt, Stud(For Valve Push Rod Cover)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90119-06305	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90119-10066	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90311-35008	Seal, Oil(For Camshaft Setting)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90311-85003	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90311-85009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
90950-01489	Plug, Semi Circular(For Chain Cover No.2)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91511-60616	BOLTFLANGE	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91511-60635	Bolt	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91511-B0616	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91511-G0620	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91611-41020	Bolt(for Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91611-41025	Bolt(for Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91612-61025	Bolt (For Control Shaft Cover)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91641-H0820	Bolt	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)
91651-60616	BOLT	Timing Gear Cover & Rear End Plate ([06.1984 - ] (8406- )3SGELU)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 170
Collected: 2026-08-02
