Search › Model › SV12

SV12

Toyota CAMRY-VISTA-AURION · 1984 · 4,690 parts · 170 categories

4,690 items

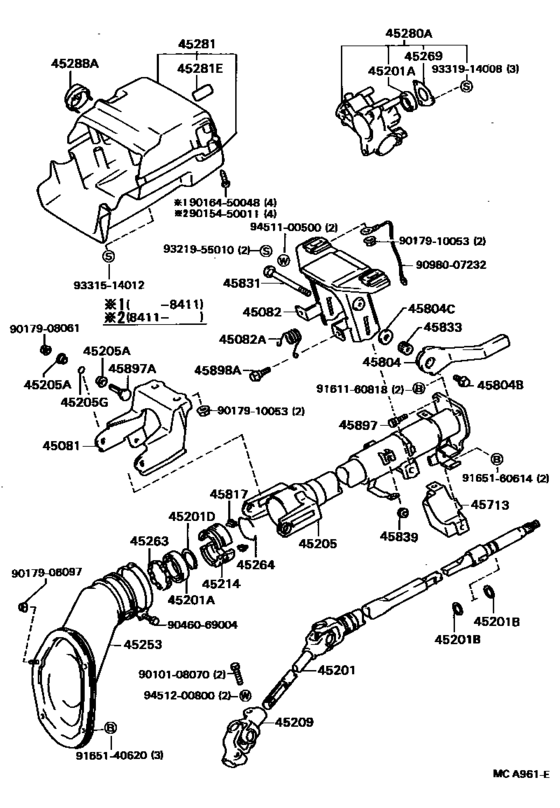

Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX) 58

#	OEM	Part name
45081	45081-32010	Support Sub-Assy, Tilt Steering
45081	45081-32050	Support Sub-Assy, Tilt Steering
45082	45082-32010	Bracket Sub-Assy, Break Away W/capsule
45082	90508-29015	Spring, Torsion(For Tilt Steering Return)
45201	45210-32090	Shaft Sub-Assy, Steering Main
45201	90363-18038	Bearing(For Steering Main Shaft)
45201	90363-30007	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17196	Ring, Shaft Snap(For Steering Main Shaft)
45201	96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)
45205	45870-32050	Tube Sub-Assy, Steering Column
45205	90389-11005	Bush(For Steering Column Tube)
45205	90301-11005	Ring, O(For Steering Column Tube)
45209	45209-32020	Yoke Sub-Assy, Steering Sliding
45209	45209-16010	Yoke Sub-Assy, Steering Sliding
45214	45214-32010	Retainer, Main Shaft Spring
45253	45025-32030	Cover, Steering Column Hole
45263	45263-32010	Ring, Steering Column, No.1
45264	45264-32010	Ring, Steering Column, No.2
45269	45269-35010	Retainer, Main Shaft Bearing
45280	45280-32011	Bracket Assy, Steering Column, Upper
45280	45280-32050	Bracket Assy, Steering Column, Upper
45281	45286-32905-03	Housing, Steering Column
45281	45286-32905-C0	Housing, Steering Column
45281	45286-32905-04	Housing, Steering Column
45281	45286-32905-05	Housing, Steering Column
45281	45283-12010	Plate, Safety Caution
45288	45288-32020	Spacer, Column Cover
45713	45713-20010	Dumper, Steering Shake
45804	45804-20010	Lever Sub-Assy, Steering Tilt
45804	90105-08060	Bolt(For Steering Tilt Lever)
45804	90201-08029	Washer, Plate(For Steering Tilt Lever)
45817	45817-32010	Stopper, Steering Shaft Thrust
45831	45831-20010	Bolt, Tilt Lever Lock, No.1
45833	45833-20010	Nut, Tilt Steering Adjusting, No.1
45839	45839-20010	Grommet, Return Spring
45897	45897-12020	Bolt, Steering Lock Set
45897	45897-26010	Bolt, Tilt Steering Pawl Set
45898	45898-20020	Bolt, Return Spring Set
9010108070	90101-08070	Bolt, Hexagon
9010108070	90119-08560	Bolt, Hexagon
9015450011	90154-50011	New Genuine Part
9016450048	90164-50048	SCREW
9017906097	90179-06097	Clip(For Front Bumper), No.1
9017906097	90179-06206	Nut
9017908061	90179-08061	Nut (For Connecting Rod Swivel)
9017910053	90179-10053	New Genuine Part
9046069004	90460-69004	New Genuine Part
9098007232	90980-07232	New Genuine Part
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9165140620	91651-40620	BOLT
9165160614	91651-60614	Bolt
9321955010	93219-55010	New Genuine Part
9331514012	93315-14012	Screw with washer
9331914008	93319-14008	SCREW
9451100500	94511-00500	Washer, Cover Set, No.2
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45025-32030	Cover, Steering Column Hole	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45081-32010	Support Sub-Assy, Tilt Steering	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45081-32050	Support Sub-Assy, Tilt Steering	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45082-32010	Bracket Sub-Assy, Break Away W/capsule	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45209-16010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45209-32020	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45210-32090	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45214-32010	Retainer, Main Shaft Spring	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45263-32010	Ring, Steering Column, No.1	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45264-32010	Ring, Steering Column, No.2	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45269-35010	Retainer, Main Shaft Bearing	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45280-32011	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45280-32050	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45283-12010	Plate, Safety Caution	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45286-32905-03	Housing, Steering Column	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45286-32905-04	Housing, Steering Column	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45286-32905-05	Housing, Steering Column	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45286-32905-C0	Housing, Steering Column	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45288-32020	Spacer, Column Cover	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45713-20010	Dumper, Steering Shake	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45804-20010	Lever Sub-Assy, Steering Tilt	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45817-32010	Stopper, Steering Shaft Thrust	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45831-20010	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45833-20010	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45839-20010	Grommet, Return Spring	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45870-32050	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45897-26010	Bolt, Tilt Steering Pawl Set	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
45898-20020	Bolt, Return Spring Set	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90101-08070	Bolt, Hexagon	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90105-08060	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90119-08830	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90154-50011	New Genuine Part	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90164-50048	SCREW	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90179-06097	Clip(For Front Bumper), No.1	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90179-06206	Nut	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90179-08061	Nut (For Connecting Rod Swivel)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90179-10053	New Genuine Part	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90201-08029	Washer, Plate(For Steering Tilt Lever)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90301-11005	Ring, O(For Steering Column Tube)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90363-18038	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90363-30007	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90389-11005	Bush(For Steering Column Tube)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90460-69004	New Genuine Part	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90508-29015	Spring, Torsion(For Tilt Steering Return)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90520-17196	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
90980-07232	New Genuine Part	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
91611-60818	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
91651-40620	BOLT	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
91651-60614	Bolt	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
93219-55010	New Genuine Part	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
93315-14012	Screw with washer	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
93319-14008	SCREW	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
94511-00500	Washer, Cover Set, No.2	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)
96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)	Steering Column & Shaft ([06.1984 - ] (8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 170
Collected: 2026-08-02
