SV12

Toyota CAMRY-VISTA-AURION · 1984 · 4,690 parts · 170 categories
SV12 ×

← Back to categories

4,690 items

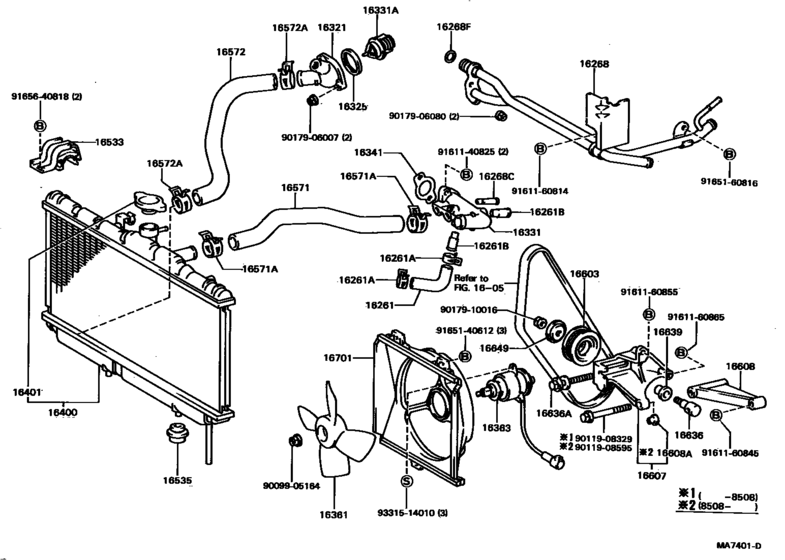

Radiator & Water Outlet ([06.1984 - ] (8406- )3SGELU) 67
#OEMPart name
16261 16261-88360 Hose, Water By-Pass
16261 90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 90467-21006 Clip(For Ventilation Hose No.2)
16261 90467-22003 Clip(For Ventilation Hose No.2)
16261 90467-21010 Clip(For Ventilation Hose No.2)
16261 90406-17001 Union(For Water By-Pass Hose)
16261 90406-17012 Joint Or Union, Front Heater Hose Through Or Inlet Valve
16268 16268-88360 Pipe, Water By-Pass, No.1
16268 90072-40625 Union(For Cylinder Head)
16268 96761-24017 Ring, O(For Water By-Pass Pipe)
16321 16321-88360 Inlet, Water
16325 16325-63010 Gasket, Water Inlet Housing, No.1
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16331 16331-88360 Outlet, Water
16331 16304-88360 Outlet, Water
16331 90916-03046 Thermostat
16341 16341-63010 Gasket, Cylinder Head Rear Cover
16341 16341-74020 Gasket, Water Outlet
16361 16361-63020 Fan
16361 16361-74070 Fan
16363 16363-64030 Motor, Cooling Fan
16400 16400-74050 Radiator Assy
16401 16401-63010 Cap Sub-Assy,
16533 16533-63070 Support, Radiator, Upper
16535 16535-63030 Support, Radiator, Lower
16571 16571-74020 Hose, Radiator, Inlet
16571 90467-33002 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16571 90467-34001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-33003 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-74020 Hose, Radiator, Outlet
16603 16603-88360 Pulley Sub-Assy, Idler, No.1
16607 16631-88360 Bracket Sub-Assy, Idler Pulley, No.1
16607 16631-74030 Bracket Sub-Assy, Idler Pulley, No.1
16607 90119-08721 BOLT WWASHER
16607 90119-08595 New Genuine Part
16607 16631-88361 Bracket Sub-Assy, Idler Pulley, No.1
16608 16632-88360 Bracket Sub-Assy, Idler Pulley, No.2
16608 90560-08060 Bracket Sub-Assy, Idler Pulley, No.2
16608 27351-70010 Bush, Alternator Bracket
16636 16636-88360 Shaft, Idler Pully, No.1
16636 90109-08116 Bolt(For Idler Pully Tension)
16636 90109-08191 Bolt(For Idler Pully Tension)
16639 16639-88360 Spacer, Idler Pulley
16639 16639-88361 Spacer, Idler Pulley
16649 16649-88360 Plate, Idler Pulley Cover
16701 16711-63030 Shroud Sub-Assy, Fan
9009905164 90099-05164 Nut
9011908329 90119-08329 New Genuine Part
9017906007 90179-06007 Nut
9017906080 90179-06080 NUT
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9161140825 91611-40825 Bolt(For Clutch Release Cylinder Setting)
9161140825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160814 91611-60814 Bolt
9161160845 91611-60845 Bolt(for Clutch Release Cylinder Setting)
9161160845 91611-B0845 Bolt(for Clutch Release Cylinder Setting)
9161160855 91611-60855 Bolt(For Rocker Support Set)
9161160865 91611-60865 Bolt(For Rocker Support Set)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165640818 91656-40818 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818 91651-B0814 Bolt with washer
9331514010 93315-14010 SCREW
