Search › Model › SV12

SV12

Toyota CAMRY-VISTA-AURION · 1984 · 4,690 parts · 170 categories

4,690 items

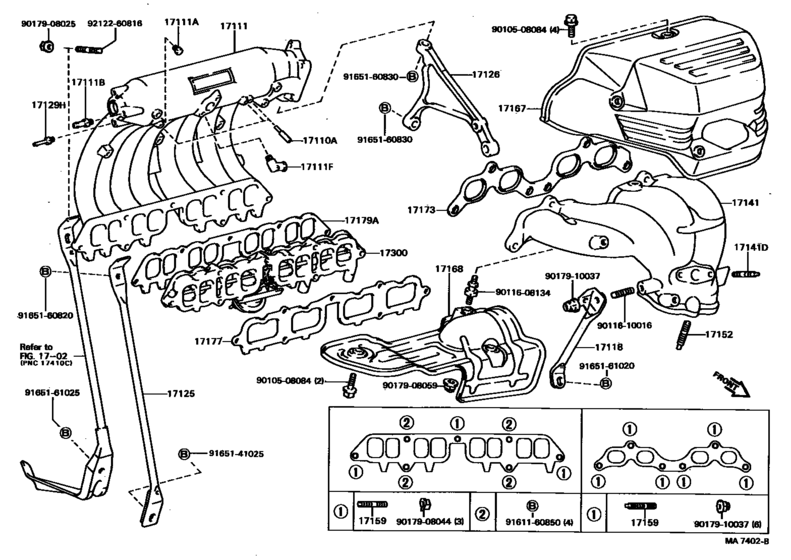

Manifold ([06.1984 - ] (8406- )3SGELU) 43

#	OEM	Part name
17110	90406-04002	Union, Vacuum Hose
17111	17111-88360	Manifold, Intake
17111	90072-34107	Plug, W/head Taper Screw, No.1
17111	90345-51006	Plug, W/head Taper Screw, No.2
17111	96411-43000	Plug, Tight, No.1
17111	90405-14004	Union(For Vacuum Hose To Carburetor)
17118	17118-88360	Stay, Manifold
17118	17118-88362	Stay, Manifold
17125	17125-88360	Stay, Surge Tank, No.1
17126	17126-88360	Stay, Surge Tank, No.2
17129	90404-51026	Union(For Vacuum Hose To Carburetor)
17141	17141-88360	Manifold, Exhaust
17141	90116-08187	Bolt, Stud(For Oxygen Sensor)
17152	90116-10058	Bolt, Stud(For Manifold Extension)
17159	90116-08186	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-10063	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17167	17167-88360	Insulator, Exhaust Manifold Heat, No.1
17167	17167-74021	Insulator, Exhaust Manifold Heat, No.1
17167	17167-88361	Insulator, Exhaust Manifold Heat, No.1
17168	17168-88360	Insulator, Exhaust Manifold Heat, No.2
17173	17173-88360	Gasket, Exhaust Manifold To Head
17173	17173-88362	Gasket, Exhaust Manifold To Head
17177	17177-88360	Gasket, Intake Manifold To Head, No.1
17179	17171-88360	Gasket, Intake Manifold, No.2
17300	17300-88360	Valve Assy, Intake Air Control
17300	17300-88381	Valve Assy, Intake Air Control
9010508084	90105-08084	Bolt
9011608134	90116-08134	New Genuine Part
9011610016	90116-10016	Bolt, Stud(For Manifold To Exhaust Pipe)
9017908025	90179-08025	Nut, Cap(For Cylinder Head Cover)
9017908044	90179-08044	NUT
9017908059	90179-08059	Nut
9017908059	90179-08101	NUT
9017910037	90179-10037	NUT
9017910037	90179-10128	NUT
9161160850	91611-60850	Bolt(For Rocker Support Set)
9165141025	91651-41025	Bolt(For Transaxle Case & Engine Setting)
9165141025	91651-61025	Bolt with washer
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9165160830	91651-60830	Bolt (For Transfer Power Take-Off Cover)
9165161020	91651-61020	Bolt, No.1 (For Center Support Bearing)
9212260816	92122-60816	Bolt, Stud(For Water Pump Set)

OEM	Part name	Category
17111-88360	Manifold, Intake	Manifold ([06.1984 - ] (8406- )3SGELU)
17118-88360	Stay, Manifold	Manifold ([06.1984 - ] (8406- )3SGELU)
17118-88362	Stay, Manifold	Manifold ([06.1984 - ] (8406- )3SGELU)
17125-88360	Stay, Surge Tank, No.1	Manifold ([06.1984 - ] (8406- )3SGELU)
17126-88360	Stay, Surge Tank, No.2	Manifold ([06.1984 - ] (8406- )3SGELU)
17141-88360	Manifold, Exhaust	Manifold ([06.1984 - ] (8406- )3SGELU)
17167-74021	Insulator, Exhaust Manifold Heat, No.1	Manifold ([06.1984 - ] (8406- )3SGELU)
17167-88360	Insulator, Exhaust Manifold Heat, No.1	Manifold ([06.1984 - ] (8406- )3SGELU)
17167-88361	Insulator, Exhaust Manifold Heat, No.1	Manifold ([06.1984 - ] (8406- )3SGELU)
17168-88360	Insulator, Exhaust Manifold Heat, No.2	Manifold ([06.1984 - ] (8406- )3SGELU)
17171-88360	Gasket, Intake Manifold, No.2	Manifold ([06.1984 - ] (8406- )3SGELU)
17173-88360	Gasket, Exhaust Manifold To Head	Manifold ([06.1984 - ] (8406- )3SGELU)
17173-88362	Gasket, Exhaust Manifold To Head	Manifold ([06.1984 - ] (8406- )3SGELU)
17177-88360	Gasket, Intake Manifold To Head, No.1	Manifold ([06.1984 - ] (8406- )3SGELU)
17300-88360	Valve Assy, Intake Air Control	Manifold ([06.1984 - ] (8406- )3SGELU)
17300-88381	Valve Assy, Intake Air Control	Manifold ([06.1984 - ] (8406- )3SGELU)
90072-34107	Plug, W/head Taper Screw, No.1	Manifold ([06.1984 - ] (8406- )3SGELU)
90105-08084	Bolt	Manifold ([06.1984 - ] (8406- )3SGELU)
90116-08134	New Genuine Part	Manifold ([06.1984 - ] (8406- )3SGELU)
90116-08186	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([06.1984 - ] (8406- )3SGELU)
90116-08187	Bolt, Stud(For Oxygen Sensor)	Manifold ([06.1984 - ] (8406- )3SGELU)
90116-10016	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([06.1984 - ] (8406- )3SGELU)
90116-10058	Bolt, Stud(For Manifold Extension)	Manifold ([06.1984 - ] (8406- )3SGELU)
90116-10063	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Manifold ([06.1984 - ] (8406- )3SGELU)
90179-08025	Nut, Cap(For Cylinder Head Cover)	Manifold ([06.1984 - ] (8406- )3SGELU)
90179-08044	NUT	Manifold ([06.1984 - ] (8406- )3SGELU)
90179-08059	Nut	Manifold ([06.1984 - ] (8406- )3SGELU)
90179-08101	NUT	Manifold ([06.1984 - ] (8406- )3SGELU)
90179-10037	NUT	Manifold ([06.1984 - ] (8406- )3SGELU)
90179-10128	NUT	Manifold ([06.1984 - ] (8406- )3SGELU)
90345-51006	Plug, W/head Taper Screw, No.2	Manifold ([06.1984 - ] (8406- )3SGELU)
90404-51026	Union(For Vacuum Hose To Carburetor)	Manifold ([06.1984 - ] (8406- )3SGELU)
90405-14004	Union(For Vacuum Hose To Carburetor)	Manifold ([06.1984 - ] (8406- )3SGELU)
90406-04002	Union, Vacuum Hose	Manifold ([06.1984 - ] (8406- )3SGELU)
91611-60850	Bolt(For Rocker Support Set)	Manifold ([06.1984 - ] (8406- )3SGELU)
91651-41025	Bolt(For Transaxle Case & Engine Setting)	Manifold ([06.1984 - ] (8406- )3SGELU)
91651-60820	Bolt, Radiator Side Support Plate	Manifold ([06.1984 - ] (8406- )3SGELU)
91651-60830	Bolt (For Transfer Power Take-Off Cover)	Manifold ([06.1984 - ] (8406- )3SGELU)
91651-61020	Bolt, No.1 (For Center Support Bearing)	Manifold ([06.1984 - ] (8406- )3SGELU)
91651-61025	Bolt with washer	Manifold ([06.1984 - ] (8406- )3SGELU)
91651-B0820	Bolt, Radiator Side Support Plate	Manifold ([06.1984 - ] (8406- )3SGELU)
92122-60816	Bolt, Stud(For Water Pump Set)	Manifold ([06.1984 - ] (8406- )3SGELU)
96411-43000	Plug, Tight, No.1	Manifold ([06.1984 - ] (8406- )3SGELU)
