Search › Model › SV12
SV12

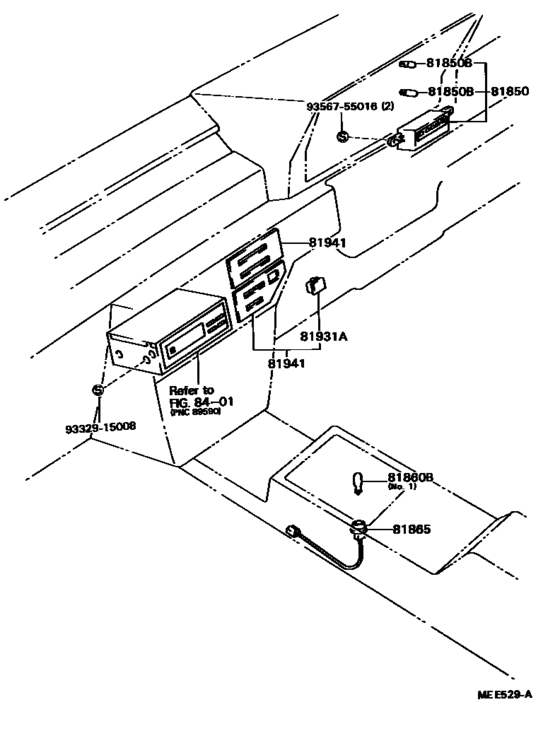

Indicator ([06.1984 - ] (8406- )) 14
| # | OEM | Part name |
|---|---|---|
| 81850 | 81850-32030 | Lamp Assy, Indicator |
| 81850 | 84999-20020 | Bulb, Indicator Lamp |
| 81850 | 84999-20040 | Bulb, Indicator Lamp |
| 81860 | 99132-12034 | Bulb, Position Indicator Lamp |
| 81860 | 00234-00158 | Bulb, Position Indicator Lamp |
| 81865 | 35906-32030 | Wire Sub-Assy, Indicator Lamp |
| 81931 | 55538-32010 | Cover, Cooler Switch Hole |
| 81941 | 55519-32011 | Plate, Heater Control Name |
| 81941 | 55519-32021 | Plate, Heater Control Name |
| 81941 | 55519-32031 | Plate, Heater Control Name |
| 81941 | 55519-32041 | Plate, Heater Control Name |
| 9332915008 | 93329-15008 | New Genuine Part |
| 9356755016 | 93567-55016 | Screw |
| 9356755016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 00234-00158 | Bulb, Position Indicator Lamp | Indicator ([06.1984 - ] (8406- )) |
| 35906-32030 | Wire Sub-Assy, Indicator Lamp | Indicator ([06.1984 - ] (8406- )) |
| 55519-32011 | Plate, Heater Control Name | Indicator ([06.1984 - ] (8406- )) |
| 55519-32021 | Plate, Heater Control Name | Indicator ([06.1984 - ] (8406- )) |
| 55519-32031 | Plate, Heater Control Name | Indicator ([06.1984 - ] (8406- )) |
| 55519-32041 | Plate, Heater Control Name | Indicator ([06.1984 - ] (8406- )) |
| 55538-32010 | Cover, Cooler Switch Hole | Indicator ([06.1984 - ] (8406- )) |
| 81850-32030 | Lamp Assy, Indicator | Indicator ([06.1984 - ] (8406- )) |
| 84999-20020 | Bulb, Indicator Lamp | Indicator ([06.1984 - ] (8406- )) |
| 84999-20040 | Bulb, Indicator Lamp | Indicator ([06.1984 - ] (8406- )) |
| 93329-15008 | New Genuine Part | Indicator ([06.1984 - ] (8406- )) |
| 93567-55016 | Screw | Indicator ([06.1984 - ] (8406- )) |
| 93568-55016 | Screw | Indicator ([06.1984 - ] (8406- )) |
| 99132-12034 | Bulb, Position Indicator Lamp | Indicator ([06.1984 - ] (8406- )) |
