SV12

Toyota CAMRY-VISTA-AURION · 1984 · 4,690 parts · 170 categories

4,690 items

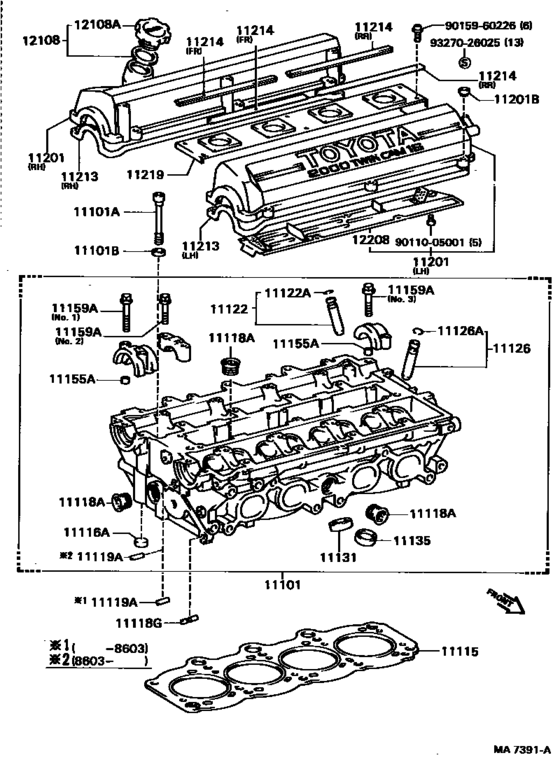

Cylinder Head ([06.1984 - ] (8406- )3SGELU) 45

#	OEM	Part name
11101	11101-88360	Head Sub-Assy, Cylinder
11101	90110-10006	Bolt(For Cylinder Head Set)
11101	90201-10050	Washer, Plate(For Cylinder Head Set)
11115	11115-88360	Gasket, Cylinder Head
11115	11115-88362	Gasket, Cylinder Head
11115	11115-88361	Gasket, Cylinder Head
11116	96411-41800	Plug, Tight, No.1
11118	90341-27001	Plug, Straight, No.1
11118	90341-27003	Plug, W/head Taper Screw, No.1
11118	90249-06052	Pin, Slotted Spring, No.1
11119	90250-06003	Pin, Straight
11122	11122-88310	Bush, Intake Valve Guide
11122	11122-88320	Bush, Intake Valve Guide
11122	11123-88310	Bush, Intake Valve Guide
11122	11123-88320	Bush, Intake Valve Guide
11122	90520-10004	Ring, Shaft Snap (For Valve Guide Bush)
11131	11131-74010	Seat, Intake Valve
11131	11132-74010	Seat, Intake Valve
11135	11135-74010	Seat, Exhaust Valve
11135	11136-74010	Seat, Exhaust Valve
11155	90253-10004	Pin, Ring W/head
11159	90119-07001	Bolt(For Head To Camshaft Bearing Cap)
11159	90119-07002	Bolt(For Head To Camshaft Bearing Cap)
11159	90119-07003	Bolt(For Head To Camshaft Bearing Cap)
11201	11202-88360	Cover Sub-Assy, Cylinder Head
11201	11211-88360	Cover Sub-Assy, Cylinder Head
11201	11211-88361	Cover Sub-Assy, Cylinder Head
11201	90210-07001	Washer, Seal(For Cylinder Head Cover)
11213	11213-88360	Gasket, Cylinder Head Cover
11213	11214-88360	Gasket, Cylinder Head Cover
11214	11229-88360	Gasket, Cylinder Head Cover, No.2
11214	11239-88360	Gasket, Cylinder Head Cover, No.2
11219	11219-74020	Cover, Cylinder Head, No.3
11219	11219-88361	Cover, Cylinder Head, No.3
11219	11219-88360	Cover, Cylinder Head, No.3
12108	12180-13030	Cap Sub-Assy, Oil Filler
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	12180-70010	Cap Sub-Assy, Oil Filler
12108	12180-E0010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
12208	12208-88360	Plate Sub-Assy, Ventilation Baffle
9011005001	90110-05001	New Genuine Part
9015960226	90159-60226	New Genuine Part
9015960226	90159-60167	New Genuine Part
9327026025	93270-26025	SCREW

OEM	Part name	Category
11101-88360	Head Sub-Assy, Cylinder	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11115-88360	Gasket, Cylinder Head	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11115-88361	Gasket, Cylinder Head	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11115-88362	Gasket, Cylinder Head	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11122-88310	Bush, Intake Valve Guide	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11122-88320	Bush, Intake Valve Guide	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11123-88310	Bush, Intake Valve Guide	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11123-88320	Bush, Intake Valve Guide	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11131-74010	Seat, Intake Valve	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11132-74010	Seat, Intake Valve	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11135-74010	Seat, Exhaust Valve	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11136-74010	Seat, Exhaust Valve	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11202-88360	Cover Sub-Assy, Cylinder Head	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11211-88360	Cover Sub-Assy, Cylinder Head	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11211-88361	Cover Sub-Assy, Cylinder Head	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11213-88360	Gasket, Cylinder Head Cover	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11214-88360	Gasket, Cylinder Head Cover	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11219-74020	Cover, Cylinder Head, No.3	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11219-88360	Cover, Cylinder Head, No.3	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11219-88361	Cover, Cylinder Head, No.3	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11229-88360	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
11239-88360	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
12180-13030	Cap Sub-Assy, Oil Filler	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
12180-70010	Cap Sub-Assy, Oil Filler	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
12180-E0010	Cap Sub-Assy, Oil Filler	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
12208-88360	Plate Sub-Assy, Ventilation Baffle	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90110-05001	New Genuine Part	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90110-10006	Bolt(For Cylinder Head Set)	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90119-07001	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90119-07002	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90119-07003	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90159-60167	New Genuine Part	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90159-60226	New Genuine Part	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90201-10050	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90210-07001	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90249-06052	Pin, Slotted Spring, No.1	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90250-06003	Pin, Straight	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90253-10004	Pin, Ring W/head	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90341-27001	Plug, Straight, No.1	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90341-27003	Plug, W/head Taper Screw, No.1	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
90520-10004	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
93270-26025	SCREW	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
96411-41800	Plug, Tight, No.1	Cylinder Head ([06.1984 - ] (8406- )3SGELU)
