Search › Model › SV12
SV12

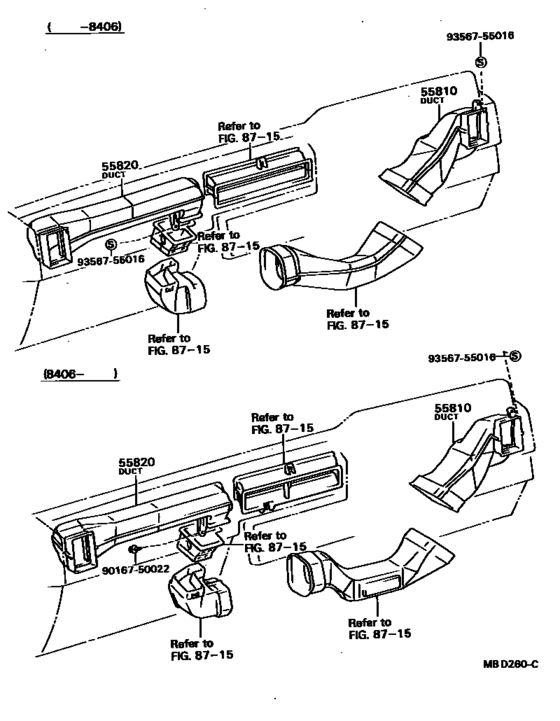

Cowl Ventilator ([03.1982 - ] (8203- )) 5
| # | OEM | Part name |
|---|---|---|
| 55810 | 55084-32010 | Duct Assy, Side Ventilator, Rh |
| 55820 | 55088-32010 | Duct Assy, Side Ventilator, Lh |
| 9016750022 | 90167-50022 | SCREW |
| 9356755016 | 93567-55016 | Screw |
| 9356755016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 55084-32010 | Duct Assy, Side Ventilator, Rh | Cowl Ventilator ([03.1982 - ] (8203- )) |
| 55088-32010 | Duct Assy, Side Ventilator, Lh | Cowl Ventilator ([03.1982 - ] (8203- )) |
| 90167-50022 | SCREW | Cowl Ventilator ([03.1982 - ] (8203- )) |
| 93567-55016 | Screw | Cowl Ventilator ([03.1982 - ] (8203- )) |
| 93568-55016 | Screw | Cowl Ventilator ([03.1982 - ] (8203- )) |
