Search › Model › SV12
SV12

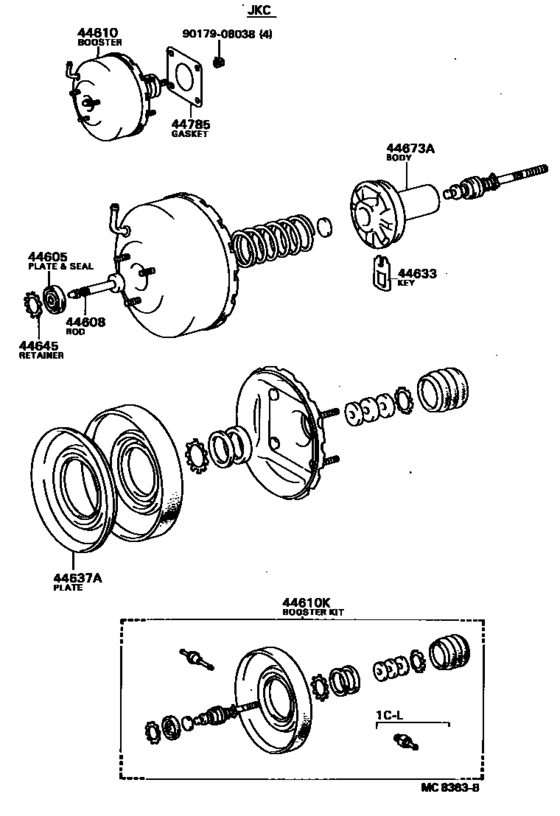

Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) 10
| # | OEM | Part name |
|---|---|---|
| 44605 | 44605-22021 | Plate & Seal Sub-Assy, Booster |
| 44605 | 44605-10080 | Plate & Seal Sub-Assy, Booster |
| 44608 | 44608-32020 | Rod Sub-Assy, Brake Booster Piston |
| 44610 | 44610-32090 | Booster Assy, Brake |
| 44610 | 04443-32060 | Booster Kit, Brake |
| 44633 | 44633-28130 | Key, Booster Valve Plunger |
| 44645 | 44645-22020 | Retainer, Booster Push Rod Seal |
| 44673 | 44673-32040 | Body, Booster Valve |
| 44785 | 44785-32010 | Gasket, Brake Booster |
| 9017908038 | 90179-08038 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 04443-32060 | Booster Kit, Brake | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 44605-10080 | Plate & Seal Sub-Assy, Booster | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 44605-22021 | Plate & Seal Sub-Assy, Booster | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 44608-32020 | Rod Sub-Assy, Brake Booster Piston | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 44610-32090 | Booster Assy, Brake | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 44633-28130 | Key, Booster Valve Plunger | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 44645-22020 | Retainer, Booster Push Rod Seal | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 44673-32040 | Body, Booster Valve | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 44785-32010 | Gasket, Brake Booster | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
| 90179-08038 | Nut | Brake Booster & Vacuum Tube ([03.1982 - ] (8203- )) |
