Search › Model › ST90V

ST90V

Suzuki CARRY-SUPER-CARRY · 3,800 parts · 123 categories

3,800 items

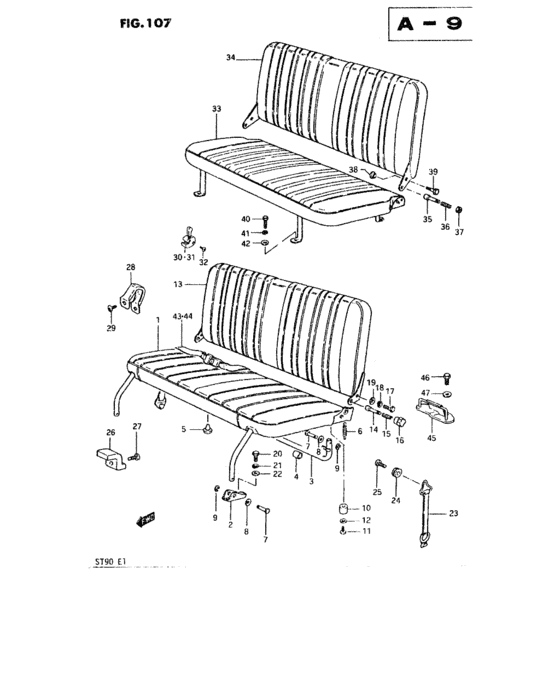

Rear seat (ST90V) 89

#	OEM	Part name
1	83001-79512-42S	Cushion assy, seat
1	83001-79502-70R	Cushion assy, seat
1	83001-79521-42S	Cushion assy, seat
1	83001-79700-42S	Cushion assy, seat
1	83001-79512-45U	Cushion assy, seat
1	83001-79502-80Y	Cushion assy, seat
1	83001-79521-45U	Cushion assy, seat
1	83001-79700-45U	Cushion assy, seat
1	83001-79760-45U	Cushion assy, seat
1	83001-79400-90V	Cushion assy, seat
1	83001-79680-90V	Cushion assy, seat
1	83001-79780-90W	Cushion assy, seat
1	83001-79410-90V	Cushion assy, seat
1	83001-79430-90V	Cushion assy, seat
1	83001-79440-90V	Cushion assy, seat
1	83001-79770-90V	Cushion assy, seat
2	84351-79500-000	Bracket, front leg
2	84351-79501-000	BRACKET,FR LEG
3	84353-79500-000	LEG,RR SEAT CUSH,R
4	84354-79500-000	CUSHION,RR SEAT LEG
5	09321-06016-000	CUSHION
6	09443-14015-000	SPRING
7	09208-06003-000	Pin
7	87259-85510-000	PIN
8	09164-07001-000	WASHER
9	08332-11046-000	E ring
9	08332-1104B-000	E RING
9	08332-1104A-000	E RING
10	09320-06003-000	CUSHION
11	03111-05168-000	New Genuine Part
11	03111-0516A-000	SCREW
12	08322-21058-000	Washer
12	08322-01057-000	WASHER - Washer, front hook holder
13	84004-79560-42S	Back assy, rear seat
13	83004-79590-70R	Back assy, rear seat
13	83004-79700-42S	Back assy, rear seat
13	83004-79560-45U	Back assy, third seat
13	83004-79590-80Y	Back assy, rear seat
13	83004-79700-45U	Back assy, rear seat
13	83004-79760-45U	Back assy, rear seat
13	84004-79570-90V	Back assy, third seat
13	83004-79780-90W	Back assy, rear seat
13	83004-79430-90V	Back assy, rear seat
13	83004-79440-90V	Back assy, rear seat
14	83913-59001-000	CHECK,RR SEAT BACK
15	09440-07011-000	SPRING
16	83914-59001-000	KNOB
17	09111-08044-000	BOLT(8X16)
18	08321-21108-000	Lock washer
18	08321-01107-000	WASHER,LOCK - Lock washer
19	08322-11108-000	Washer
19	08322-01107-000	WASHER - Washer, throttle drum
20	01107-06128-000	Bolt, earth lead
20	01500-06127-000	Bolt
21	08321-21068-000	Lock washer
21	08321-01067-000	WASHER,LOCK
22	08322-21068-000	Washer
22	08322-01067-000	WASHER
23	83290-68210-000	Band, seat stopper
23	83290-68211-000	BAND,RR SEAT
23	83290-79540-000	Band, seat stopper
24	09306-06002-000	BUSH
25	02142-06167-000	SCREW
26	83975-79510-000	Cushion,rr seat back stopper
26	83975-79500-000	Cushion, back stopper
27	03141-05168-000	スクリュ
27	03141-0516A-000	SCREW
27	03142-05169-000	Tapping screw
28	83971-79530-000	Bracket, stopper
30	84330-78001-281	Lock assy,rr seat rh
30	84330-79700-281	Lock assy, rh
31	84340-78001-281	LOCK ASSY,RR SEAT BACK,L
31	84340-79700-281	Lock assy, lh
32	09127-06006-000	Screw
33	84001-79500-42S	Cushion assy, third seat
33	84001-79500-45U	Cushion assy, third seat
33	84001-79510-90V	Cushion assy, third seat
34	84004-68202-42S	Back assy, third seat
34	84004-68200-45U	Back assy, third seat
34	84004-68210-90V	Back assy, third seat
37	08310-11058-000	Nut
37	08310-00057-000	NUT
38	09306-08006-000	Bush
39	09111-08007-000	Bolt
40	01107-06168-000	Bolt
40	01500-06167-000	Bolt - Bolt, fuel cooler
42	09160-06019-000	WASHER(6.5X16X1.2) - Washer (6.5x16x1.2)
43	87304-79700-382	Seat belt assy, rear - Black
43	87304-79700-49L	Seat belt assy, rear - Beige

OEM	Part name	Category
01107-06128-000	Bolt, earth lead	Rear seat (ST90V)
01107-06168-000	Bolt	Rear seat (ST90V)
01500-06127-000	Bolt	Rear seat (ST90V)
01500-06167-000	Bolt - Bolt, fuel cooler	Rear seat (ST90V)
02142-06167-000	SCREW	Rear seat (ST90V)
03111-05168-000	New Genuine Part	Rear seat (ST90V)
03111-0516A-000	SCREW	Rear seat (ST90V)
03141-05168-000	スクリュ	Rear seat (ST90V)
03141-0516A-000	SCREW	Rear seat (ST90V)
03142-05169-000	Tapping screw	Rear seat (ST90V)
08310-00057-000	NUT	Rear seat (ST90V)
08310-11058-000	Nut	Rear seat (ST90V)
08321-01067-000	WASHER,LOCK	Rear seat (ST90V)
08321-01107-000	WASHER,LOCK - Lock washer	Rear seat (ST90V)
08321-21068-000	Lock washer	Rear seat (ST90V)
08321-21108-000	Lock washer	Rear seat (ST90V)
08322-01057-000	WASHER - Washer, front hook holder	Rear seat (ST90V)
08322-01067-000	WASHER	Rear seat (ST90V)
08322-01107-000	WASHER - Washer, throttle drum	Rear seat (ST90V)
08322-11108-000	Washer	Rear seat (ST90V)
08322-21058-000	Washer	Rear seat (ST90V)
08322-21068-000	Washer	Rear seat (ST90V)
08332-11046-000	E ring	Rear seat (ST90V)
08332-1104A-000	E RING	Rear seat (ST90V)
08332-1104B-000	E RING	Rear seat (ST90V)
09111-08007-000	Bolt	Rear seat (ST90V)
09111-08044-000	BOLT(8X16)	Rear seat (ST90V)
09127-06006-000	Screw	Rear seat (ST90V)
09160-06019-000	WASHER(6.5X16X1.2) - Washer (6.5x16x1.2)	Rear seat (ST90V)
09164-07001-000	WASHER	Rear seat (ST90V)
09208-06003-000	Pin	Rear seat (ST90V)
09306-06002-000	BUSH	Rear seat (ST90V)
09306-08006-000	Bush	Rear seat (ST90V)
09320-06003-000	CUSHION	Rear seat (ST90V)
09321-06016-000	CUSHION	Rear seat (ST90V)
09440-07011-000	SPRING	Rear seat (ST90V)
09443-14015-000	SPRING	Rear seat (ST90V)
83001-79400-90V	Cushion assy, seat	Rear seat (ST90V)
83001-79410-90V	Cushion assy, seat	Rear seat (ST90V)
83001-79430-90V	Cushion assy, seat	Rear seat (ST90V)
83001-79440-90V	Cushion assy, seat	Rear seat (ST90V)
83001-79502-70R	Cushion assy, seat	Rear seat (ST90V)
83001-79502-80Y	Cushion assy, seat	Rear seat (ST90V)
83001-79512-42S	Cushion assy, seat	Rear seat (ST90V)
83001-79512-45U	Cushion assy, seat	Rear seat (ST90V)
83001-79521-42S	Cushion assy, seat	Rear seat (ST90V)
83001-79521-45U	Cushion assy, seat	Rear seat (ST90V)
83001-79680-90V	Cushion assy, seat	Rear seat (ST90V)
83001-79700-42S	Cushion assy, seat	Rear seat (ST90V)
83001-79700-45U	Cushion assy, seat	Rear seat (ST90V)
83001-79760-45U	Cushion assy, seat	Rear seat (ST90V)
83001-79770-90V	Cushion assy, seat	Rear seat (ST90V)
83001-79780-90W	Cushion assy, seat	Rear seat (ST90V)
83004-79430-90V	Back assy, rear seat	Rear seat (ST90V)
83004-79440-90V	Back assy, rear seat	Rear seat (ST90V)
83004-79560-45U	Back assy, third seat	Rear seat (ST90V)
83004-79590-70R	Back assy, rear seat	Rear seat (ST90V)
83004-79590-80Y	Back assy, rear seat	Rear seat (ST90V)
83004-79700-42S	Back assy, rear seat	Rear seat (ST90V)
83004-79700-45U	Back assy, rear seat	Rear seat (ST90V)
83004-79760-45U	Back assy, rear seat	Rear seat (ST90V)
83004-79780-90W	Back assy, rear seat	Rear seat (ST90V)
83290-68210-000	Band, seat stopper	Rear seat (ST90V)
83290-68211-000	BAND,RR SEAT	Rear seat (ST90V)
83290-79540-000	Band, seat stopper	Rear seat (ST90V)
83913-59001-000	CHECK,RR SEAT BACK	Rear seat (ST90V)
83914-59001-000	KNOB	Rear seat (ST90V)
83971-79530-000	Bracket, stopper	Rear seat (ST90V)
83975-79500-000	Cushion, back stopper	Rear seat (ST90V)
83975-79510-000	Cushion,rr seat back stopper	Rear seat (ST90V)
84001-79500-42S	Cushion assy, third seat	Rear seat (ST90V)
84001-79500-45U	Cushion assy, third seat	Rear seat (ST90V)
84001-79510-90V	Cushion assy, third seat	Rear seat (ST90V)
84004-68200-45U	Back assy, third seat	Rear seat (ST90V)
84004-68202-42S	Back assy, third seat	Rear seat (ST90V)
84004-68210-90V	Back assy, third seat	Rear seat (ST90V)
84004-79560-42S	Back assy, rear seat	Rear seat (ST90V)
84004-79570-90V	Back assy, third seat	Rear seat (ST90V)
84330-78001-281	Lock assy,rr seat rh	Rear seat (ST90V)
84330-79700-281	Lock assy, rh	Rear seat (ST90V)
84340-78001-281	LOCK ASSY,RR SEAT BACK,L	Rear seat (ST90V)
84340-79700-281	Lock assy, lh	Rear seat (ST90V)
84351-79500-000	Bracket, front leg	Rear seat (ST90V)
84351-79501-000	BRACKET,FR LEG	Rear seat (ST90V)
84353-79500-000	LEG,RR SEAT CUSH,R	Rear seat (ST90V)
84354-79500-000	CUSHION,RR SEAT LEG	Rear seat (ST90V)
87259-85510-000	PIN	Rear seat (ST90V)
87304-79700-382	Seat belt assy, rear - Black	Rear seat (ST90V)
87304-79700-49L	Seat belt assy, rear - Beige	Rear seat (ST90V)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 123
Collected: 2026-08-01
