Search › Model › ST90V

ST90V

Suzuki CARRY-SUPER-CARRY · 3,800 parts · 123 categories

3,800 items

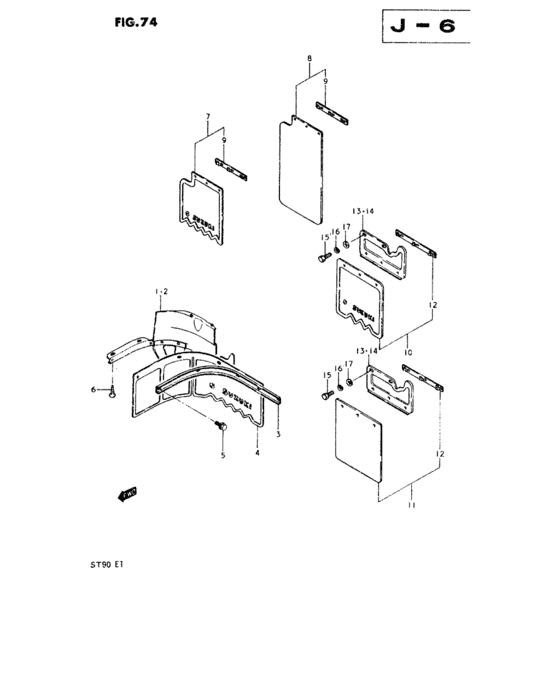

Mud flap (MUD FLAP) 28

#	OEM	Part name
1	57611-79700-019	Panel, front rh
1	57611-79700-000	PANEL,FR MUD FLAP,R
2	57621-79100-019	PANEL,FRONT MUD FLAP,L
3	57612-79001-000	PLATE,FRONT MUD FLAP ATTACHING
4	57613-79000-000	FLAP,FR MUD
4	57613-79230-000	Flap, front mud
5	01517-06108-000	Bolt 6x10 hexagon
5	01550-06107-000	Bolt
6	03141-06128-000	Mold.inner fix.screw
6	03141-0612A-000	SCREW
7	57600-79820-000	Flap set, rear mud
7	57600-79822-000	Mud flap set,rr
8	57600-79840-000	Flap set, rear mud
9	57631-52001-000	Plate, attaching
9	57631-52002-000	PLATE,ATTACHING
10	57600-79831-000	Flap set, rear mud
11	57600-79850-000	Flap set, rear mud
11	57600-79851-000	FLAP SET,RR MUD
12	57681-79500-000	Plate, attaching
12	57681-79501-000	PLATE,ATTACHING
13	57662-79500-000	PANEL,REAR MUD FLAP,R
14	57672-79500-000	PANEL,REAR MUD FLAP,L
15	01107-06128-000	Bolt, earth lead
15	01500-06127-000	Bolt
16	08321-21068-000	Lock washer
16	08321-01067-000	WASHER,LOCK
17	08322-21068-000	Washer
17	08322-01067-000	WASHER

OEM	Part name	Category
01107-06128-000	Bolt, earth lead	Mud flap (MUD FLAP)
01500-06127-000	Bolt	Mud flap (MUD FLAP)
01517-06108-000	Bolt 6x10 hexagon	Mud flap (MUD FLAP)
01550-06107-000	Bolt	Mud flap (MUD FLAP)
03141-06128-000	Mold.inner fix.screw	Mud flap (MUD FLAP)
03141-0612A-000	SCREW	Mud flap (MUD FLAP)
08321-01067-000	WASHER,LOCK	Mud flap (MUD FLAP)
08321-21068-000	Lock washer	Mud flap (MUD FLAP)
08322-01067-000	WASHER	Mud flap (MUD FLAP)
08322-21068-000	Washer	Mud flap (MUD FLAP)
57600-79820-000	Flap set, rear mud	Mud flap (MUD FLAP)
57600-79822-000	Mud flap set,rr	Mud flap (MUD FLAP)
57600-79831-000	Flap set, rear mud	Mud flap (MUD FLAP)
57600-79840-000	Flap set, rear mud	Mud flap (MUD FLAP)
57600-79850-000	Flap set, rear mud	Mud flap (MUD FLAP)
57600-79851-000	FLAP SET,RR MUD	Mud flap (MUD FLAP)
57611-79700-000	PANEL,FR MUD FLAP,R	Mud flap (MUD FLAP)
57611-79700-019	Panel, front rh	Mud flap (MUD FLAP)
57612-79001-000	PLATE,FRONT MUD FLAP ATTACHING	Mud flap (MUD FLAP)
57613-79000-000	FLAP,FR MUD	Mud flap (MUD FLAP)
57613-79230-000	Flap, front mud	Mud flap (MUD FLAP)
57621-79100-019	PANEL,FRONT MUD FLAP,L	Mud flap (MUD FLAP)
57631-52001-000	Plate, attaching	Mud flap (MUD FLAP)
57631-52002-000	PLATE,ATTACHING	Mud flap (MUD FLAP)
57662-79500-000	PANEL,REAR MUD FLAP,R	Mud flap (MUD FLAP)
57672-79500-000	PANEL,REAR MUD FLAP,L	Mud flap (MUD FLAP)
57681-79500-000	Plate, attaching	Mud flap (MUD FLAP)
57681-79501-000	PLATE,ATTACHING	Mud flap (MUD FLAP)
