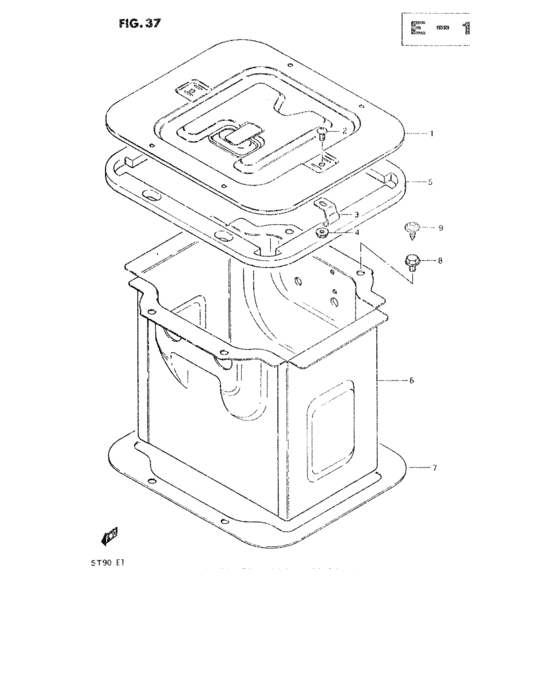

Battery box (ST90V)
18
| # | OEM | Part name |
|---|
| 1 |
66430-79500-000 |
LID,BATTERY BOX |
| 2 |
02142-05128-000 |
Screw |
| 2 |
02142-05127-000 |
SCREW |
| 3 |
65647-68000-000 |
SPRING,SERVICE LID |
| 4 |
08316-26056-000 |
Nut, cam lever |
| 4 |
08316-2005A-000 |
NUT |
| 5 |
66521-79500-000 |
ダストシール,リッド |
| 5 |
66522-75D00-000 |
DUST SEAL,BATTERY BOX |
| 6 |
66440-79500-000 |
Panel, battery box |
| 6 |
09308-19001-000 |
GROMMET |
| 6 |
09308-26001-000 |
GROMMET |
| 6 |
66440-79502-000 |
PANEL,BATTERY BOX |
| 6 |
66440-79501-000 |
Panel, battery box |
| 7 |
66531-79500-000 |
Packing, box |
| 8 |
01517-06128-000 |
Bolt |
| 8 |
01550-06127-000 |
Bolt - Bolt, rect |
| 9 |
03141-06128-000 |
Mold.inner fix.screw |
| 9 |
03141-0612A-000 |
SCREW |
| OEM |
Part name |
Category |
| 01517-06128-000 |
Bolt |
Battery box (ST90V) |
| 01550-06127-000 |
Bolt - Bolt, rect |
Battery box (ST90V) |
| 02142-05127-000 |
SCREW |
Battery box (ST90V) |
| 02142-05128-000 |
Screw |
Battery box (ST90V) |
| 03141-06128-000 |
Mold.inner fix.screw |
Battery box (ST90V) |
| 03141-0612A-000 |
SCREW |
Battery box (ST90V) |
| 08316-2005A-000 |
NUT |
Battery box (ST90V) |
| 08316-26056-000 |
Nut, cam lever |
Battery box (ST90V) |
| 09308-19001-000 |
GROMMET |
Battery box (ST90V) |
| 09308-26001-000 |
GROMMET |
Battery box (ST90V) |
| 65647-68000-000 |
SPRING,SERVICE LID |
Battery box (ST90V) |
| 66430-79500-000 |
LID,BATTERY BOX |
Battery box (ST90V) |
| 66440-79500-000 |
Panel, battery box |
Battery box (ST90V) |
| 66440-79501-000 |
Panel, battery box |
Battery box (ST90V) |
| 66440-79502-000 |
PANEL,BATTERY BOX |
Battery box (ST90V) |
| 66521-79500-000 |
ダストシール,リッド |
Battery box (ST90V) |
| 66522-75D00-000 |
DUST SEAL,BATTERY BOX |
Battery box (ST90V) |
| 66531-79500-000 |
Packing, box |
Battery box (ST90V) |
