Search › Model › ST90K
ST90K

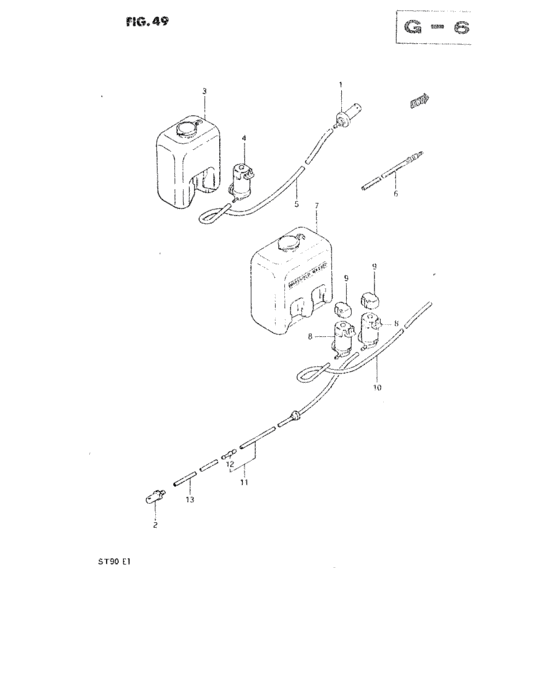

Washer (TYPE 2,TYPE 3) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 38480-80000-000 | NOZZLE ASSY,FR WASHER |
| 2 | 38840-79511-000 | Nozzle, rear washer |
| 3 | 38450-67011-000 | TANK ASSY,WASHER |
| 4 | 38410-66112-000 | Pump assy, washer |
| 4 | 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer |
| 5 | 38491-79020-000 | HOSE,WASHER L:3500 |
| 6 | 38490-78100-000 | HOSE |
| 7 | 38834-79510-000 | Tank assy |
| 9 | 38837-79500-000 | CAP,WASHER MOTOR |
| 11 | 38832-79510-000 | Rear hose assy, front |
| 12 | 38833-79500-000 | VALVE |
| 12 | 38496-61A00-000 | VALVE,CHECK |
| 13 | 38494-64010-000 | Rear hose, rear |
| 13 | 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) |
| OEM | Part name | Category |
|---|---|---|
| 38410-66112-000 | Pump assy, washer | Washer (TYPE 2,TYPE 3) |
| 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer | Washer (TYPE 2,TYPE 3) |
| 38450-67011-000 | TANK ASSY,WASHER | Washer (TYPE 2,TYPE 3) |
| 38480-80000-000 | NOZZLE ASSY,FR WASHER | Washer (TYPE 2,TYPE 3) |
| 38490-78100-000 | HOSE | Washer (TYPE 2,TYPE 3) |
| 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) | Washer (TYPE 2,TYPE 3) |
| 38491-79020-000 | HOSE,WASHER L:3500 | Washer (TYPE 2,TYPE 3) |
| 38494-64010-000 | Rear hose, rear | Washer (TYPE 2,TYPE 3) |
| 38496-61A00-000 | VALVE,CHECK | Washer (TYPE 2,TYPE 3) |
| 38832-79510-000 | Rear hose assy, front | Washer (TYPE 2,TYPE 3) |
| 38833-79500-000 | VALVE | Washer (TYPE 2,TYPE 3) |
| 38834-79510-000 | Tank assy | Washer (TYPE 2,TYPE 3) |
| 38837-79500-000 | CAP,WASHER MOTOR | Washer (TYPE 2,TYPE 3) |
| 38840-79511-000 | Nozzle, rear washer | Washer (TYPE 2,TYPE 3) |
