Search › Model › ST90K

ST90K

Suzuki CARRY-SUPER-CARRY · 3,800 parts · 123 categories

3,800 items

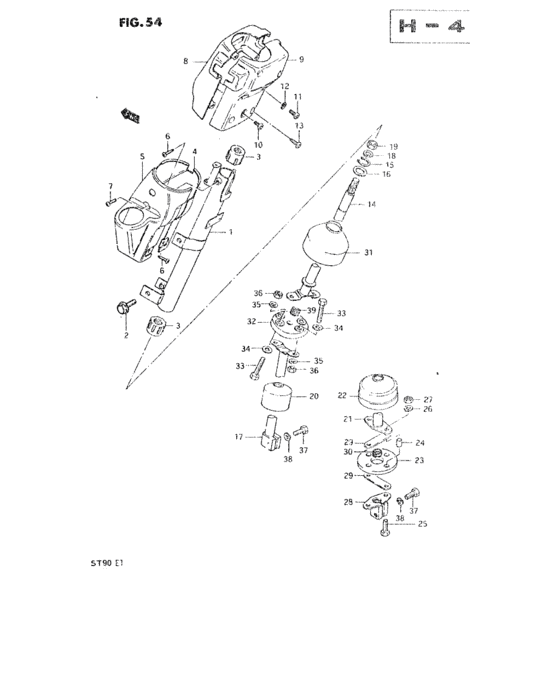

Steering shaft (STEERING SHAFT) 77

#	OEM	Part name
1	48310-79040-000	Column, steering
1	48310-79020-000	Column, steering
1	48310-79120-000	Column, steering
1	48310-79150-000	COLUMN,STRG
1	48310-79031-000	Column, steering
1	48310-79011-000	Column, steering
1	48310-79110-000	Column, steering
1	48310-79140-000	Column, steering
2	01517-08168-000	Bolt
2	01550-08167-000	Bolt - Bolt (8x16)
3	48381-51040-000	BUSHING STEERING
3	48381-51041-000	BUSHING,STRG COLUMN
4	48410-79080-000	Cover, steering rh
4	48410-79010-000	Cover, steering rh
4	48382-66040-000	Bush, column lower
5	48420-79080-000	Cover, steering lh
5	48420-79010-000	Cover, steering lh
6	03142-04129-000	Screw
6	03142-0412B-000	SCREW
7	02142-05087-000	SCREW
8	48410-79150-281	Cover, steering upper - Black
8	48400-79801-281	COVER SET,STRG COLUMN
8	48410-79150-49N	Cover, steering upper - Beige
8	48410-79250-281	Cover, steering upper
8	48410-79250-49N	Cover, steering upper
9	48420-79180-281	Cover, steering lower
9	48420-79180-49N	Cover, steering lower
9	48420-79280-281	Cover, steering lower
9	48420-79280-49N	Cover, steering lower
11	02112-05128-000	Screw
11	02112-05127-000	SCREW - Screw, vacuum sw valve
12	08321-21058-000	Lock washer
12	08321-0105A-000	WASHER,LOCK
13	03211-05168-000	Screw
13	03212-0516B-000	SCREW
13	13765-48GV0-000	Screw
14	48210-79010-000	Shaft, steering upper
14	48210-79110-000	Shaft, steering upper
14	48210-79120-000	SHAFT,STEERING UPPER
15	08331-31178-000	Circlip
15	08331-31179-000	CIRCLIP
15	48210-79031-000	Shaft, steering
15	48210-79200-000	Shaft, steering
16	09160-17021-000	Washer
16	09160-17501-XC0	WASHER(17.5X34X2)
17	48220-79010-000	Shaft, steering lower
17	09180-08007-000	SPACER(8.1X11X9)
17	09440-18002-000	SPRING
17	48220-79012-000	SHAFT,STEERING LOWER
17	48251-52000-000	JOINT,RUBBER
17	48262-58001-000	PLATE,STRG RUBBER JOINT
17	48270-79000-000	FLANGE,RUBBER JOINT
17	48481-79000-000	COVER,RUBBER JOINT
18	09162-12004-000	Lock washer
18	08321-0112A-000	WASHER,LOCK
18	48228-69100-000	COVER,JOINT
19	09140-12022-000	ナット
19	09159-12025-000	NUT
20	48451-79000-000	Cover, shaft lower
21	48220-79011-000	Shaft, lower
25	01107-08258-000	Bolt
25	01500-08257-000	Bolt
26	08321-31088-000	Lock washer
26	08321-01087-000	WASHER,LOCK - Washer, lock
27	08310-12088-000	Nut
27	08310-00087-000	NUT
29	48262-58000-000	Plaque
31	48481-79010-000	COVER,STRG RUBBER JOINT
32	48250-79000-000	JOINT SET,STEERING RUBBER
33	01107-08308-000	Bolt
33	01500-08307-000	Bolt
34	08322-21088-000	Washer
34	08322-01087-000	WASHER - Lock washer
37	09111-08052-000	ボルト
37	09111-08066-000	BOLT(8X30)
39	09440-09001-000	New Genuine Part
39	09440-09004-000	SPRING

OEM	Part name	Category
01107-08258-000	Bolt	Steering shaft (STEERING SHAFT)
01107-08308-000	Bolt	Steering shaft (STEERING SHAFT)
01500-08257-000	Bolt	Steering shaft (STEERING SHAFT)
01500-08307-000	Bolt	Steering shaft (STEERING SHAFT)
01517-08168-000	Bolt	Steering shaft (STEERING SHAFT)
01550-08167-000	Bolt - Bolt (8x16)	Steering shaft (STEERING SHAFT)
02112-05127-000	SCREW - Screw, vacuum sw valve	Steering shaft (STEERING SHAFT)
02112-05128-000	Screw	Steering shaft (STEERING SHAFT)
02142-05087-000	SCREW	Steering shaft (STEERING SHAFT)
03142-04129-000	Screw	Steering shaft (STEERING SHAFT)
03142-0412B-000	SCREW	Steering shaft (STEERING SHAFT)
03211-05168-000	Screw	Steering shaft (STEERING SHAFT)
03212-0516B-000	SCREW	Steering shaft (STEERING SHAFT)
08310-00087-000	NUT	Steering shaft (STEERING SHAFT)
08310-12088-000	Nut	Steering shaft (STEERING SHAFT)
08321-0105A-000	WASHER,LOCK	Steering shaft (STEERING SHAFT)
08321-01087-000	WASHER,LOCK - Washer, lock	Steering shaft (STEERING SHAFT)
08321-0112A-000	WASHER,LOCK	Steering shaft (STEERING SHAFT)
08321-21058-000	Lock washer	Steering shaft (STEERING SHAFT)
08321-31088-000	Lock washer	Steering shaft (STEERING SHAFT)
08322-01087-000	WASHER - Lock washer	Steering shaft (STEERING SHAFT)
08322-21088-000	Washer	Steering shaft (STEERING SHAFT)
08331-31178-000	Circlip	Steering shaft (STEERING SHAFT)
08331-31179-000	CIRCLIP	Steering shaft (STEERING SHAFT)
09111-08052-000	ボルト	Steering shaft (STEERING SHAFT)
09111-08066-000	BOLT(8X30)	Steering shaft (STEERING SHAFT)
09140-12022-000	ナット	Steering shaft (STEERING SHAFT)
09159-12025-000	NUT	Steering shaft (STEERING SHAFT)
09160-17021-000	Washer	Steering shaft (STEERING SHAFT)
09160-17501-XC0	WASHER(17.5X34X2)	Steering shaft (STEERING SHAFT)
09162-12004-000	Lock washer	Steering shaft (STEERING SHAFT)
09180-08007-000	SPACER(8.1X11X9)	Steering shaft (STEERING SHAFT)
09440-09001-000	New Genuine Part	Steering shaft (STEERING SHAFT)
09440-09004-000	SPRING	Steering shaft (STEERING SHAFT)
09440-18002-000	SPRING	Steering shaft (STEERING SHAFT)
13765-48GV0-000	Screw	Steering shaft (STEERING SHAFT)
48210-79010-000	Shaft, steering upper	Steering shaft (STEERING SHAFT)
48210-79031-000	Shaft, steering	Steering shaft (STEERING SHAFT)
48210-79110-000	Shaft, steering upper	Steering shaft (STEERING SHAFT)
48210-79120-000	SHAFT,STEERING UPPER	Steering shaft (STEERING SHAFT)
48210-79200-000	Shaft, steering	Steering shaft (STEERING SHAFT)
48220-79010-000	Shaft, steering lower	Steering shaft (STEERING SHAFT)
48220-79011-000	Shaft, lower	Steering shaft (STEERING SHAFT)
48220-79012-000	SHAFT,STEERING LOWER	Steering shaft (STEERING SHAFT)
48228-69100-000	COVER,JOINT	Steering shaft (STEERING SHAFT)
48250-79000-000	JOINT SET,STEERING RUBBER	Steering shaft (STEERING SHAFT)
48251-52000-000	JOINT,RUBBER	Steering shaft (STEERING SHAFT)
48262-58000-000	Plaque	Steering shaft (STEERING SHAFT)
48262-58001-000	PLATE,STRG RUBBER JOINT	Steering shaft (STEERING SHAFT)
48270-79000-000	FLANGE,RUBBER JOINT	Steering shaft (STEERING SHAFT)
48310-79011-000	Column, steering	Steering shaft (STEERING SHAFT)
48310-79020-000	Column, steering	Steering shaft (STEERING SHAFT)
48310-79031-000	Column, steering	Steering shaft (STEERING SHAFT)
48310-79040-000	Column, steering	Steering shaft (STEERING SHAFT)
48310-79110-000	Column, steering	Steering shaft (STEERING SHAFT)
48310-79120-000	Column, steering	Steering shaft (STEERING SHAFT)
48310-79140-000	Column, steering	Steering shaft (STEERING SHAFT)
48310-79150-000	COLUMN,STRG	Steering shaft (STEERING SHAFT)
48381-51040-000	BUSHING STEERING	Steering shaft (STEERING SHAFT)
48381-51041-000	BUSHING,STRG COLUMN	Steering shaft (STEERING SHAFT)
48382-66040-000	Bush, column lower	Steering shaft (STEERING SHAFT)
48400-79801-281	COVER SET,STRG COLUMN	Steering shaft (STEERING SHAFT)
48410-79010-000	Cover, steering rh	Steering shaft (STEERING SHAFT)
48410-79080-000	Cover, steering rh	Steering shaft (STEERING SHAFT)
48410-79150-281	Cover, steering upper - Black	Steering shaft (STEERING SHAFT)
48410-79150-49N	Cover, steering upper - Beige	Steering shaft (STEERING SHAFT)
48410-79250-281	Cover, steering upper	Steering shaft (STEERING SHAFT)
48410-79250-49N	Cover, steering upper	Steering shaft (STEERING SHAFT)
48420-79010-000	Cover, steering lh	Steering shaft (STEERING SHAFT)
48420-79080-000	Cover, steering lh	Steering shaft (STEERING SHAFT)
48420-79180-281	Cover, steering lower	Steering shaft (STEERING SHAFT)
48420-79180-49N	Cover, steering lower	Steering shaft (STEERING SHAFT)
48420-79280-281	Cover, steering lower	Steering shaft (STEERING SHAFT)
48420-79280-49N	Cover, steering lower	Steering shaft (STEERING SHAFT)
48451-79000-000	Cover, shaft lower	Steering shaft (STEERING SHAFT)
48481-79000-000	COVER,RUBBER JOINT	Steering shaft (STEERING SHAFT)
48481-79010-000	COVER,STRG RUBBER JOINT	Steering shaft (STEERING SHAFT)
