Search › Model › ST90K
ST90K

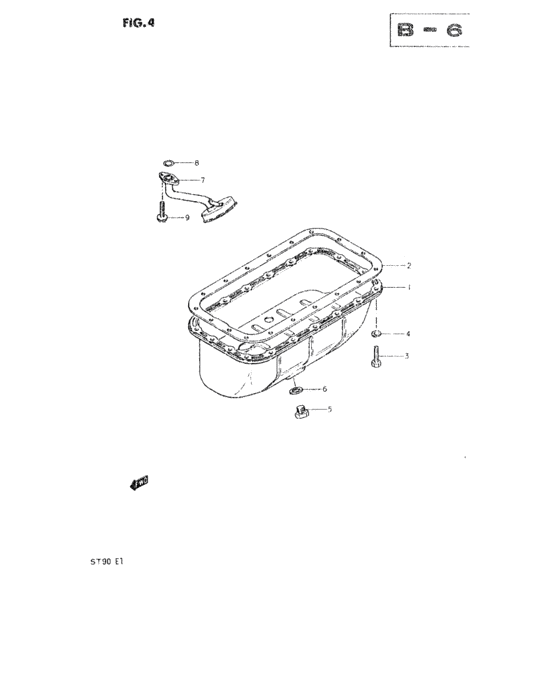

Oil pan (OIL PAN) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 11510-79201-000 | Pan, oil |
| 1 | 11510-85202-000 | PAN,OIL |
| 2 | 11529-80000-000 | Gasket, Oil Pan |
| 2 | 11529-73001-000 | GASKET,OIL PAN |
| 3 | 01107-06168-000 | Bolt |
| 3 | 01500-06167-000 | Bolt - Bolt, fuel cooler |
| 4 | 09162-06005-000 | Lock washer |
| 4 | 09162-06006-000 | WASHER,LOCK - Lock washer |
| 5 | 09247-12101-000 | Bolt |
| 6 | 09168-12007-000 | ガスケット,12X21X2 |
| 6 | 09168-12016-000 | GASKET(12.2X21X0.8) |
| 6 | 09168-12018-000 | GASKET(12X21X2) |
| 7 | 16520-79101-000 | STRAINER,OIL PUMP |
| 8 | 09280-16005-000 | O RING(D:2.4,ID:15.8) - O ring, exhaust pipe |
| 9 | 01517-06168-000 | Bolt |
| 9 | 01550-06167-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01107-06168-000 | Bolt | Oil pan (OIL PAN) |
| 01500-06167-000 | Bolt - Bolt, fuel cooler | Oil pan (OIL PAN) |
| 01517-06168-000 | Bolt | Oil pan (OIL PAN) |
| 01550-06167-000 | Bolt | Oil pan (OIL PAN) |
| 09162-06005-000 | Lock washer | Oil pan (OIL PAN) |
| 09162-06006-000 | WASHER,LOCK - Lock washer | Oil pan (OIL PAN) |
| 09168-12007-000 | ガスケット,12X21X2 | Oil pan (OIL PAN) |
| 09168-12016-000 | GASKET(12.2X21X0.8) | Oil pan (OIL PAN) |
| 09168-12018-000 | GASKET(12X21X2) | Oil pan (OIL PAN) |
| 09247-12101-000 | Bolt | Oil pan (OIL PAN) |
| 09280-16005-000 | O RING(D:2.4,ID:15.8) - O ring, exhaust pipe | Oil pan (OIL PAN) |
| 11510-79201-000 | Pan, oil | Oil pan (OIL PAN) |
| 11510-85202-000 | PAN,OIL | Oil pan (OIL PAN) |
| 11529-73001-000 | GASKET,OIL PAN | Oil pan (OIL PAN) |
| 11529-80000-000 | Gasket, Oil Pan | Oil pan (OIL PAN) |
| 16520-79101-000 | STRAINER,OIL PUMP | Oil pan (OIL PAN) |
