ST90K

Suzuki CARRY-SUPER-CARRY · 3,800 parts · 123 categories
ST90K ×

← Back to categories

3,800 items

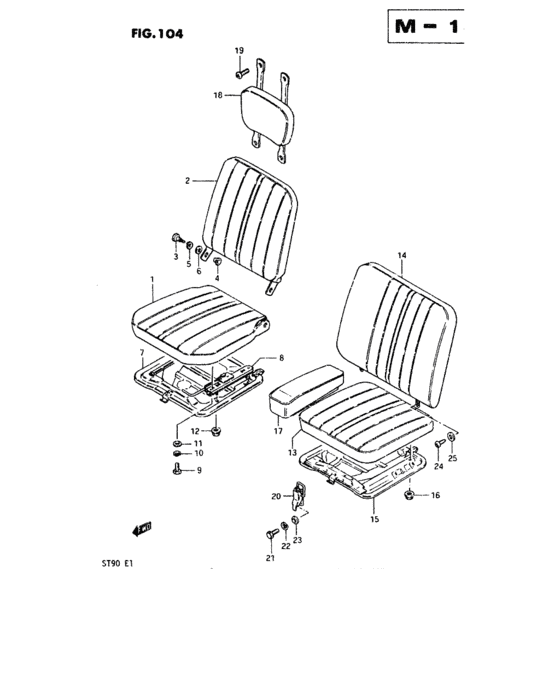

Front seat (ST90K : Sinagpore) 34
#OEMPart name
1 81001-79080-90V Cushion assy, seat rh
2 81004-79080-90V Back assy, seat rh
3 09111-08041-000 Bolt
4 09306-08006-000 Bush
5 08321-21108-000 Lock washer
5 08321-01107-000 WASHER,LOCK - Lock washer
6 08322-11108-000 Washer
6 08322-01107-000 WASHER - Washer, throttle drum
7 82310-79003-000 Panel, rh
8 82410-79004-000 Rail, rh
9 01107-06126-000 Bolt 6x12
9 01500-0612A-000 Bolt
10 08321-21066-000 Lock washer
10 08321-0106A-000 WASHER,LOCK
11 08322-21068-000 Washer
11 08322-01067-000 WASHER
12 08316-26066-000 Nut 6mm
12 08316-2006A-000 NUT
12 08316-1006B-000 NUT
13 81002-79260-90V Cushion assy, seat lh
14 81005-79090-90V Back assy, seat lh
15 82320-79512-000 Panel, lh
15 82320-79515-000 PANEL,FR SEAT RISER,L
17 81003-79021-90V Cushion assy, seat center
18 82110-79030-90V Head rest assy
19 02142-06108-000 6 x 10 screw
19 02142-06107-000 SCREW
20 81920-79002-000 LOCK,FR SEAT CUSHION
23 08322-21066-000 Washer
23 08322-0106B-000 WASHER
24 03211-06128-000 スクリュ
24 03211-0612A-000 SCREW
25 09160-06027-000 Washer (6.5x20x1.2)
25 09160-06077-000 WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)
