ST90K

Suzuki CARRY-SUPER-CARRY · 3,800 parts · 123 categories
ST90K ×

← Back to categories

3,800 items

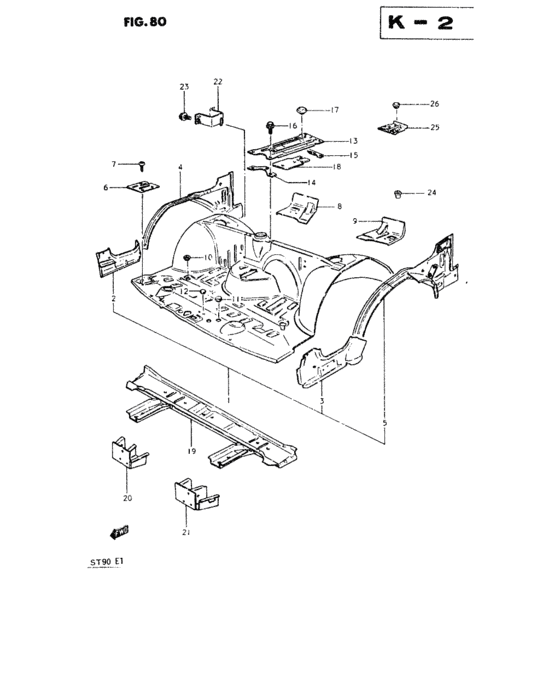

Front floor (ST90V) 59
#OEMPart name
1 65400-79720-000 Panel assy, front floor
1 65400-79722-000 Panel assy, front floor
1 65400-79741-000 Panel assy, front floor
1 65400-79791-000 Panel assy, front floor
1 65400-79750-000 Panel assy, front floor
1 65400-79752-000 Panel assy, front floor
1 65400-79761-000 Panel assy, front floor
1 65400-79780-000 Panel assy, front floor
1 65400-79770-000 Panel assy, front floor
1 65400-79772-000 Panel assy, front floor
2 65450-79000-000 PANEL,FR FLOOR INNER FR RH
2 65450-79230-000 Panel, inner front rh
3 65461-79000-000 PANEL,FR FLOOR INNER FR LH
3 65461-79230-000 Panel, inner front lh
4 65470-79720-000 PANEL,SIDE SILL INNER RR,R
4 65470-79750-000 Panel, inner rear rh
4 65470-79770-000 Panel, inner rear rh
5 65480-79600-000 PANEL,FR FLOOR INNER RR LH
5 65480-79750-000 Panel, inner rear lh
5 65480-79770-000 Panel, inner rear lh
6 65492-79060-000 Cover, floor front rh
7 03141-06108-000 New Genuine Part
7 03141-0610A-000 SCREW
8 65118-79500-000 Panel, floor side rh
8 65118-79250-000 Panel,frame floor side rh
9 65128-79500-000 PANEL,FRAME FLOOR SIDE LH
10 09250-30002-000 キャップ,OD:30
10 72999-67H00-000 CAP,OD:40
11 09250-26003-000 CAP(OD:32) - Plug, clutch hole
11 09250-26006-000 Cap(Od:32)
11 09250-40002-000 CAP(OD:52)
12 09250-07001-000 CAP(OD:10)
13 66410-79200-000 Member, engine room center
13 66411-79220-000 Member, engine room center
13 09250-20009-000 CAP(OD:30) - Cap, switch plate
13 09250-20002-000 キャップ,OD:30
13 09250-20034-000 Cap(Od:30)
13 66410-79750-000 Member, engine room center
14 66551-79500-000 Dust seal, front
15 66552-79500-000 Dust seal, rear
16 01517-06128-000 Bolt
16 01550-06127-000 Bolt - Bolt, rect
18 66416-79200-000 INSULATOR,ENGINE ROOM MEMBER
19 65310-79230-000 Cross member, floor
19 65310-79001-000 Cross member, floor
19 09160-06019-000 WASHER(6.5X16X1.2) - Washer (6.5x16x1.2)
19 08321-0106A-000 WASHER,LOCK
19 01500-0616A-000 Bolt
19 08321-21066-000 Lock washer
19 01107-06166-000 Bolt
19 65310-79060-000 Cross member, floor
19 65310-79061-000 Cross member, floor
19 65310-79231-000 Cross member, floor
20 65130-79000-000 BRACKET,STEERING GEAR BOX RH
21 65140-79060-000 BRACKET,STEERING GEAR BOX LH
22 65490-79500-000 Bracket,jack
24 09250-05003-000 PLUG(OD:12)
25 66471-79750-000 Bracket, seat belt center
26 09250-14005-000 PLUG(OD:19)
