Search › Model › ST90
ST90

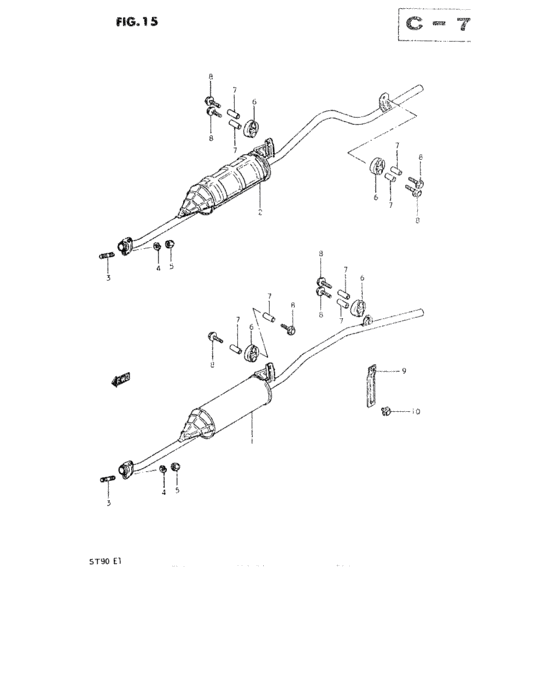

Muffler (MUFFLER) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 14300-79204-000 | MUFFLER ASSY |
| 1 | 14300-79214-000 | Muffler |
| 1 | 14300-7970V-000 | Muffler |
| 2 | 14300-79704-000 | Muffler |
| 3 | 01411-10308-000 | Stud bolt |
| 3 | 01411-1030A-000 | BOLT,STUD |
| 4 | 08321-21108-000 | Lock washer |
| 4 | 08321-01107-000 | WASHER,LOCK - Lock washer |
| 5 | 09159-10017-000 | NUT |
| 5 | 09159-10016-000 | NUT - Nut, clamp bracket |
| 6 | 14282-78010-000 | MOUNTING EX |
| 6 | 14281-60G11-000 | MOUNTING,MUFFLER(HS60) |
| 7 | 09180-08057-000 | Spacer |
| 7 | 09180-08227-000 | SPACER(8.2X12.5X23.5) |
| 8 | 01517-08358-000 | Bolt |
| 8 | 01550-08357-000 | Bolt |
| 9 | 14327-79210-000 | Bracket, tail adapter |
| 10 | 01517-08128-000 | Bolt |
| 10 | 01550-08127-000 | Bolt - Bolt, clamp |
| OEM | Part name | Category |
|---|---|---|
| 01411-10308-000 | Stud bolt | Muffler (MUFFLER) |
| 01411-1030A-000 | BOLT,STUD | Muffler (MUFFLER) |
| 01517-08128-000 | Bolt | Muffler (MUFFLER) |
| 01517-08358-000 | Bolt | Muffler (MUFFLER) |
| 01550-08127-000 | Bolt - Bolt, clamp | Muffler (MUFFLER) |
| 01550-08357-000 | Bolt | Muffler (MUFFLER) |
| 08321-01107-000 | WASHER,LOCK - Lock washer | Muffler (MUFFLER) |
| 08321-21108-000 | Lock washer | Muffler (MUFFLER) |
| 09159-10016-000 | NUT - Nut, clamp bracket | Muffler (MUFFLER) |
| 09159-10017-000 | NUT | Muffler (MUFFLER) |
| 09180-08057-000 | Spacer | Muffler (MUFFLER) |
| 09180-08227-000 | SPACER(8.2X12.5X23.5) | Muffler (MUFFLER) |
| 14281-60G11-000 | MOUNTING,MUFFLER(HS60) | Muffler (MUFFLER) |
| 14282-78010-000 | MOUNTING EX | Muffler (MUFFLER) |
| 14300-79204-000 | MUFFLER ASSY | Muffler (MUFFLER) |
| 14300-79214-000 | Muffler | Muffler (MUFFLER) |
| 14300-79704-000 | Muffler | Muffler (MUFFLER) |
| 14300-7970V-000 | Muffler | Muffler (MUFFLER) |
| 14327-79210-000 | Bracket, tail adapter | Muffler (MUFFLER) |
