| 02112-06127-000 |
SCREW |

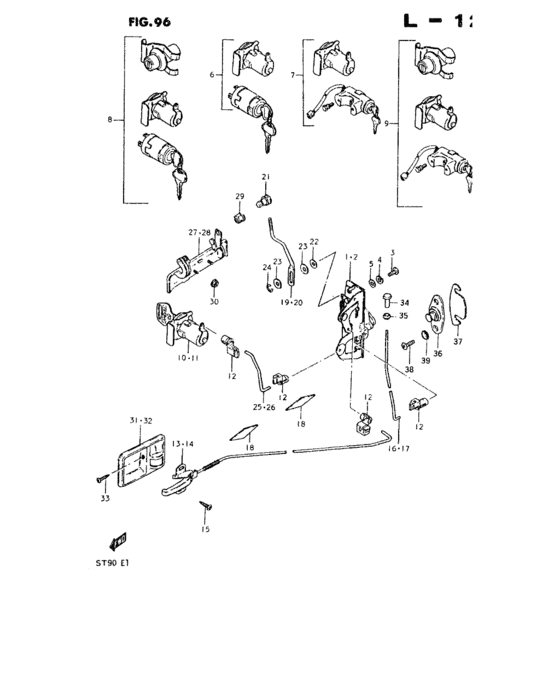

Front door lock (FRONT DOOR LOCK) |
| 02112-06128-000 |
Screw |
Front door lock (FRONT DOOR LOCK) |
| 02122-08188-000 |
Screw |
Front door lock (FRONT DOOR LOCK) |
| 02142-06107-000 |
SCREW |
Front door lock (FRONT DOOR LOCK) |
| 02142-06108-000 |
6 x 10 screw |
Front door lock (FRONT DOOR LOCK) |
| 03111-04088-000 |
Cross screw (4x8) |
Front door lock (FRONT DOOR LOCK) |
| 03112-0408B-000 |
SCREW |
Front door lock (FRONT DOOR LOCK) |
| 08316-2006A-000 |
NUT |
Front door lock (FRONT DOOR LOCK) |
| 08316-26068-000 |
Nut |
Front door lock (FRONT DOOR LOCK) |
| 08321-01067-000 |
WASHER,LOCK |
Front door lock (FRONT DOOR LOCK) |
| 08321-21068-000 |
Lock washer |
Front door lock (FRONT DOOR LOCK) |
| 08322-01067-000 |
WASHER |
Front door lock (FRONT DOOR LOCK) |
| 08322-21068-000 |
Washer |
Front door lock (FRONT DOOR LOCK) |
| 08323-31088-000 |
Washer,lock |
Front door lock (FRONT DOOR LOCK) |
| 08332-11058-000 |
E ring |
Front door lock (FRONT DOOR LOCK) |
| 08332-1105A-000 |
E RING |
Front door lock (FRONT DOOR LOCK) |
| 09126-08004-XC0 |
SCREW(8X18) |
Front door lock (FRONT DOOR LOCK) |
| 09161-04008-000 |
WASHER(4X12X2) |
Front door lock (FRONT DOOR LOCK) |
| 09161-06008-000 |
WASHER(6.5X13X1) |
Front door lock (FRONT DOOR LOCK) |
| 09163-08002-000 |
WASHER,LOCK - Rondelle |
Front door lock (FRONT DOOR LOCK) |
| 09209-05016-000 |
PIN |
Front door lock (FRONT DOOR LOCK) |
| 77101-79000-000 |
LOCK ASSY,DR,R |
Front door lock (FRONT DOOR LOCK) |
| 77101-79010-000 |
Lock assy, rh |
Front door lock (FRONT DOOR LOCK) |
| 77102-79000-000 |
LOCK ASSY,DR,L |
Front door lock (FRONT DOOR LOCK) |
| 77102-79010-000 |
Lock assy, lh |
Front door lock (FRONT DOOR LOCK) |
| 77400-67870-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77400-70811-000 |
Key cylinder, lock rh |
Front door lock (FRONT DOOR LOCK) |
| 77400-70812-000 |
CYLINDER,FR DR LATCH LOCK,R |
Front door lock (FRONT DOOR LOCK) |
| 77400-70831-000 |
Key cylinder, lock lh |
Front door lock (FRONT DOOR LOCK) |
| 77400-70832-000 |
CYLINDER,FR DR LATCH LOCK,L |
Front door lock (FRONT DOOR LOCK) |
| 77400-72830-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77400-77812-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77400-78851-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77400-78861-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77400-78871-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77400-79881-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77400-79883-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77401-79810-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77401-79820-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77401-79830-000 |
Key cylinder set |
Front door lock (FRONT DOOR LOCK) |
| 77401-85810-000 |
LOCK SET,NOUKA |
Front door lock (FRONT DOOR LOCK) |
| 77591-75000-000 |
PAD |
Front door lock (FRONT DOOR LOCK) |
| 77610-79000-281 |
Handle, inside rh - Black |
Front door lock (FRONT DOOR LOCK) |
| 77610-79000-49F |
Handle, inside rh - Beige |
Front door lock (FRONT DOOR LOCK) |
| 77610-79090-281 |
HANDLE,INSIDE,R |
Front door lock (FRONT DOOR LOCK) |
| 77610-79090-49F |
HANDLE,INSIDE,R |
Front door lock (FRONT DOOR LOCK) |
| 77630-79000-281 |
Handle, inside lh |
Front door lock (FRONT DOOR LOCK) |
| 77630-79000-49F |
Handle, inside lh |
Front door lock (FRONT DOOR LOCK) |
| 77630-79090-281 |
HANDLE,INSIDE,L |
Front door lock (FRONT DOOR LOCK) |
| 77630-79090-49F |
HANDLE,INSIDE,L |
Front door lock (FRONT DOOR LOCK) |
| 77711-79000-000 |
Rod, out side handle rh |
Front door lock (FRONT DOOR LOCK) |
| 77711-79100-000 |
ROD,OUTSIDE HANDLE,R |
Front door lock (FRONT DOOR LOCK) |
| 77712-79000-000 |
Rod, out side handle lh |
Front door lock (FRONT DOOR LOCK) |
| 77712-79100-000 |
ROD,OUTSIDE HANDLE,L |
Front door lock (FRONT DOOR LOCK) |
| 77716-79000-000 |
JOINT,ROD |
Front door lock (FRONT DOOR LOCK) |
| 77731-79000-000 |
ROD,KEY CYLINDER CONTROL,R |
Front door lock (FRONT DOOR LOCK) |
| 77732-79000-000 |
ROD,KEY CYLINDER CONTROL,L |
Front door lock (FRONT DOOR LOCK) |
| 77741-79000-000 |
ROD,SAFETY LOCK,R |
Front door lock (FRONT DOOR LOCK) |
| 77742-79000-000 |
ROD,SAFETY LOCK,L |
Front door lock (FRONT DOOR LOCK) |
| 78110-79000-000 |
Fermeture |
Front door lock (FRONT DOOR LOCK) |
| 78110-79010-000 |
Striker, door lock |
Front door lock (FRONT DOOR LOCK) |
| 78199-79000-000 |
SPACER |
Front door lock (FRONT DOOR LOCK) |
| 78241-60002-000 |
KNOB |
Front door lock (FRONT DOOR LOCK) |
| 78242-61000-000 |
CAP,LOCK KNOB |
Front door lock (FRONT DOOR LOCK) |
| 78310-78001-000 |
Handle,fr door outside rh |
Front door lock (FRONT DOOR LOCK) |
| 78320-78001-000 |
HANDLE,OUTSIDE,L |
Front door lock (FRONT DOOR LOCK) |
| 78391-78000-000 |
SNAP.JOINT |
Front door lock (FRONT DOOR LOCK) |
| 78471-79000-281 |
Case, inside handle rh - Black |
Front door lock (FRONT DOOR LOCK) |
| 78471-79000-49F |
Case, inside handle rh - Beige |
Front door lock (FRONT DOOR LOCK) |
| 78471-79001-5ES |
BEZEL,DR INSIDE HDL,R |
Front door lock (FRONT DOOR LOCK) |
| 78481-79000-281 |
Case, inside handle lh |
Front door lock (FRONT DOOR LOCK) |
| 78481-79000-49F |
Case, inside handle lh |
Front door lock (FRONT DOOR LOCK) |
| 78481-79001-49F |
BEZEL,DR INSIDE HDL,L |
Front door lock (FRONT DOOR LOCK) |
| 78481-79001-5ES |
BEZEL,DR INSIDE HDL,L |
Front door lock (FRONT DOOR LOCK) |
| 82660-80101-000 |
STRIKER,BACK DOOR LATCH |
Front door lock (FRONT DOOR LOCK) |
| 82810-80102-000 |
Handle, out side rh |
Front door lock (FRONT DOOR LOCK) |
| 82810-83000-000 |
HANDLE,DOOR OUTSIDE,R |
Front door lock (FRONT DOOR LOCK) |
| 82820-80102-000 |
Handle, out side lh |
Front door lock (FRONT DOOR LOCK) |
| 82820-83000-000 |
HANDLE,DOOR OUTSIDE,L |
Front door lock (FRONT DOOR LOCK) |
| 82891-80100-000 |
SNAP,JOINT |
Front door lock (FRONT DOOR LOCK) |
