Search › Model › ST90
ST90

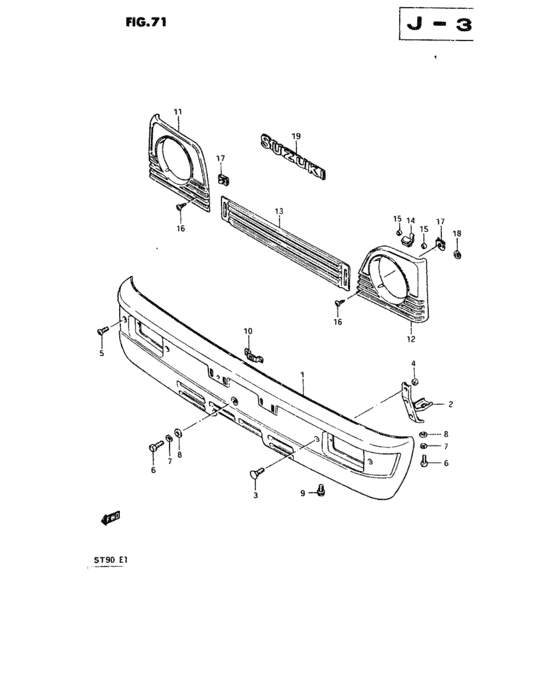

Front bumper (TYPE 3) 33
| # | OEM | Part name |
|---|---|---|
| 1 | 57411-79010-281 | BAR,FR BUMPER |
| 2 | 57420-79001-000 | Stay, front bumper |
| 2 | 57420-79002-000 | STAY,FRONT BUMPER |
| 3 | 57439-79001-000 | ボルト,バンパ |
| 3 | 57439-79003-000 | BOLT,FR BUMPER |
| 4 | 08310-11068-000 | Nut |
| 4 | 08310-00067-000 | NUT |
| 5 | 02142-06125-000 | Screw |
| 5 | 02142-0612B-000 | SCREW |
| 5 | 02142-0612A-000 | SCREW |
| 6 | 01107-08168-000 | Bolt |
| 6 | 01500-0816B-000 | Bolt |
| 7 | 08321-21088-000 | Lock washer |
| 7 | 08321-01087-000 | WASHER,LOCK - Washer, lock |
| 8 | 09160-08010-000 | Washer (8.2x20x1.6) |
| 8 | 09160-08054-000 | WASHER(8.5X20X1.6) |
| 9 | 01517-06128-000 | Bolt |
| 9 | 01550-06127-000 | Bolt - Bolt, rect |
| 10 | 57515-79001-000 | RETAINER,LICENSE PLATE |
| 11 | 61111-79001-16K | Grille, headlamp rh |
| 12 | 61121-79001-16K | Grille, headlamp lh |
| 13 | 61141-79011-16K | Grille, front center |
| 13 | 61141-79011-000 | GRILLE,FR CENTER |
| 14 | 61151-79000-000 | SPRING,FR GRILLE |
| 15 | 61155-79000-000 | CUSHION,FR GRILLE,UPPER |
| 15 | 44420-44AR0-000 | HOSE SET,FUEL |
| 15 | 61155-79010-000 | Cushion,fr Grille,upper |
| 16 | 03212-05105-000 | Screw, body |
| 16 | 03211-0510C-000 | SCREW |
| 17 | 09148-05003-000 | NUT |
| 18 | 09148-04010-000 | NUT - Ecrou |
| 19 | 77814-80000-000 | Emblem, suzuki |
| 19 | 77814-80000-8VP | EMBLEM,SUZUKI |
| OEM | Part name | Category |
|---|---|---|
| 01107-08168-000 | Bolt | Front bumper (TYPE 3) |
| 01500-0816B-000 | Bolt | Front bumper (TYPE 3) |
| 01517-06128-000 | Bolt | Front bumper (TYPE 3) |
| 01550-06127-000 | Bolt - Bolt, rect | Front bumper (TYPE 3) |
| 02142-06125-000 | Screw | Front bumper (TYPE 3) |
| 02142-0612A-000 | SCREW | Front bumper (TYPE 3) |
| 02142-0612B-000 | SCREW | Front bumper (TYPE 3) |
| 03211-0510C-000 | SCREW | Front bumper (TYPE 3) |
| 03212-05105-000 | Screw, body | Front bumper (TYPE 3) |
| 08310-00067-000 | NUT | Front bumper (TYPE 3) |
| 08310-11068-000 | Nut | Front bumper (TYPE 3) |
| 08321-01087-000 | WASHER,LOCK - Washer, lock | Front bumper (TYPE 3) |
| 08321-21088-000 | Lock washer | Front bumper (TYPE 3) |
| 09148-04010-000 | NUT - Ecrou | Front bumper (TYPE 3) |
| 09148-05003-000 | NUT | Front bumper (TYPE 3) |
| 09160-08010-000 | Washer (8.2x20x1.6) | Front bumper (TYPE 3) |
| 09160-08054-000 | WASHER(8.5X20X1.6) | Front bumper (TYPE 3) |
| 44420-44AR0-000 | HOSE SET,FUEL | Front bumper (TYPE 3) |
| 57411-79010-281 | BAR,FR BUMPER | Front bumper (TYPE 3) |
| 57420-79001-000 | Stay, front bumper | Front bumper (TYPE 3) |
| 57420-79002-000 | STAY,FRONT BUMPER | Front bumper (TYPE 3) |
| 57439-79001-000 | ボルト,バンパ | Front bumper (TYPE 3) |
| 57439-79003-000 | BOLT,FR BUMPER | Front bumper (TYPE 3) |
| 57515-79001-000 | RETAINER,LICENSE PLATE | Front bumper (TYPE 3) |
| 61111-79001-16K | Grille, headlamp rh | Front bumper (TYPE 3) |
| 61121-79001-16K | Grille, headlamp lh | Front bumper (TYPE 3) |
| 61141-79011-000 | GRILLE,FR CENTER | Front bumper (TYPE 3) |
| 61141-79011-16K | Grille, front center | Front bumper (TYPE 3) |
| 61151-79000-000 | SPRING,FR GRILLE | Front bumper (TYPE 3) |
| 61155-79000-000 | CUSHION,FR GRILLE,UPPER | Front bumper (TYPE 3) |
| 61155-79010-000 | Cushion,fr Grille,upper | Front bumper (TYPE 3) |
| 77814-80000-000 | Emblem, suzuki | Front bumper (TYPE 3) |
| 77814-80000-8VP | EMBLEM,SUZUKI | Front bumper (TYPE 3) |
