ST246

Toyota CALDINA · 2002 · 4,383 parts · 199 categories

4,383 items

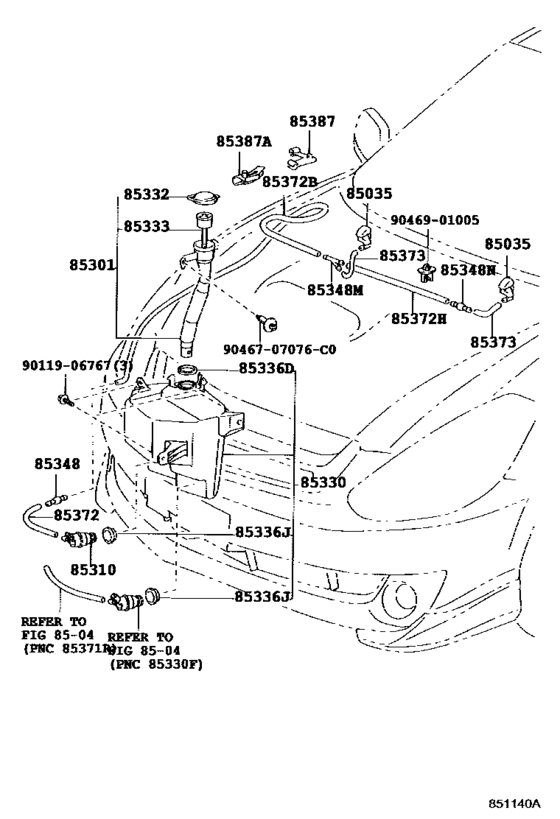

Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246) 22

#	OEM	Part name
85035	85381-30020	Nozzle Sub-Assy, Washer
85035	85381-30020-C1	Nozzle Sub-Assy, Washer
85301	85301-21010	Inlet Sub-Assy, Washer
85310	85330-10280	Motor And Pump Assy, Windshield Washer
85310	85330-21010	Motor And Pump Assy, Windshield Washer
85330	85315-20650	Jar Assy, Windshield Washer
85330	85315-21010	Jar Assy, Windshield Washer
85332	85316-33120	Cap, Washer, Inlet
85333	85312-21010	Filter, Windshield Washer Jar
85336	85336-30160	Bush, Windshield Washer Jar
85336	85336-60300	Bush, Windshield Washer Jar
85348	85349-89122	Valve Sub-Assy, Washer
85348	85348-12250	Joint, Windshield Washer Hose, No.1
85372	90099-33080	Hose, Windshield Washer (From Motor To Joint)
85372	90099-33815	Hose, Windshield Washer (From Joint To Joint), No.1
85372	90099-33803	Hose, Windshield Washer (From Joint To Joint), No.1
85373	90099-33076	Hose, Windshield Washer (From Motor To Joint)
85387	85387-22410	Clamp No.1 (For Windseield Washer)
85387	85371-21010	Clamp, Washer, No.2
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9046707076	90467-07076-C0	Clip, Radiator Grille
9046901005	90469-01005	New Genuine Part

OEM	Part name	Category
85301-21010	Inlet Sub-Assy, Washer	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85312-21010	Filter, Windshield Washer Jar	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85315-20650	Jar Assy, Windshield Washer	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85315-21010	Jar Assy, Windshield Washer	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85316-33120	Cap, Washer, Inlet	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85330-10280	Motor And Pump Assy, Windshield Washer	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85330-21010	Motor And Pump Assy, Windshield Washer	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85336-30160	Bush, Windshield Washer Jar	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85336-60300	Bush, Windshield Washer Jar	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85348-12250	Joint, Windshield Washer Hose, No.1	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85349-89122	Valve Sub-Assy, Washer	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85371-21010	Clamp, Washer, No.2	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85381-30020	Nozzle Sub-Assy, Washer	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85381-30020-C1	Nozzle Sub-Assy, Washer	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
85387-22410	Clamp No.1 (For Windseield Washer)	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
90099-33076	Hose, Windshield Washer (From Motor To Joint)	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
90099-33080	Hose, Windshield Washer (From Motor To Joint)	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
90099-33803	Hose, Windshield Washer (From Joint To Joint), No.1	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
90099-33815	Hose, Windshield Washer (From Joint To Joint), No.1	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
90119-06767	Bolt, W/washer(For Engine Under Cover)	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
90467-07076-C0	Clip, Radiator Grille	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
90469-01005	New Genuine Part	Windshield Washer ([09.2002 - ] TYPE B (0209- )ST246)
